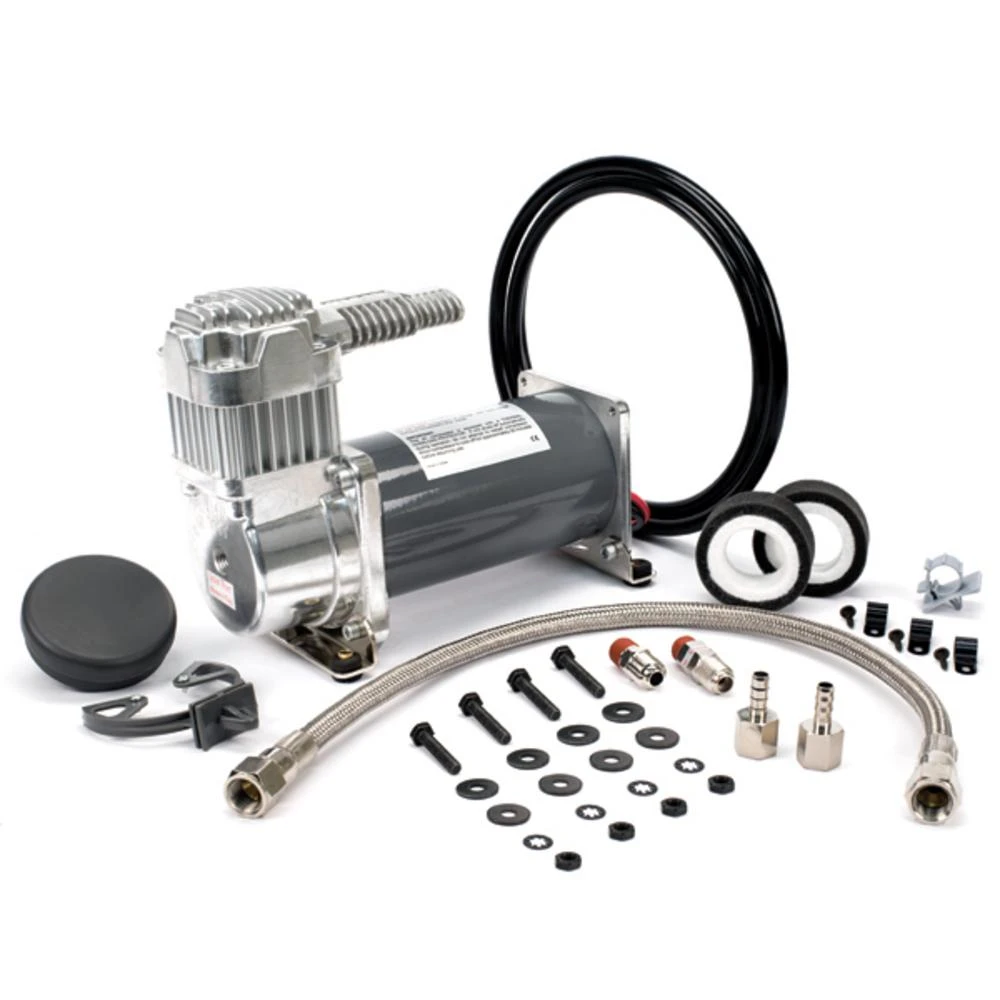

VIAIR 330C Hg 200 PSI Series Compressor Kit 12V CE Intercooler Head (33035)
VIAIR 330C Hg 200 PSI Series Compressor Kit (33035) is a 12V air compressor with a 100% duty cycle at 100 PSI and a max working pressure of 200 PSI. Equipped with an intercooler head, it ensures optimal cooling performance, a max air tank size of 5 gallons, and an IP67 ingress protection rating.
The 12V compressor kit features a thermal overload protector, stainless steel braided leader hose, and comprehensive mounting hardware for smooth operation. It’s an excellent choice for reliable tire inflation and pneumatic applications.
Specifications and Dimensions
12-Volt Permanent Magnetic Motor
Duty Cycle: 100% @ 100 PSI
Duty Cycle: 50% @ 200 PSI
Max. Working Pressure: 200 PSI
Max. Air Tank Size: 5.0 Gallon
Max. 12V Amp Draw: 14 Amps
Ingress Protection Rating: IP67
Max. Ambient Temp: +158°F
Min. Ambient Temp: -40°F
Dimensions: 9″L x 4″W x 6.75″H
Net Weight: 8.25 lbs.
Maximum Power: 0.2 Horsepower
Material: Stainless Steel
Key Features and Benefits
100% duty cycle at 100 PSI and a max working pressure of 200 PSI.
Intercooler head ensures optimal cooling performance.
5-gallon max air tank size provides ample air supply.
Thermal overload protector prevents overheating.
IP67-rated sealed design for enhanced weather resistance and durability.
Vibration isolators ensure smooth operation.
Thermal Overload Protector
Vibration Isolators
Mounting Hardware
Heavy Duty 1/4″ NPT Check Valve
Stainless Steel Braided PTFE-Lined Leader Hose
Air Line for Remote Mount Air Filter
Remote Mount Air Filter Assembly
(2) Replacement Air Filter Elements
Installation Instructions
Product identification
- Brand: Viair
- Model / MPN: 33035
