VIAIR 325C Silver Compressor Kit 24V 33% Duty Sealed w/o Leader Hose (32538)
VIAIR 325C Silver Compressor Kit (32538) is a 24V air compressor designed for optimal tire inflation with a 33% duty cycle at 100 PSI and a max working pressure of 150 PSI. It features a max air tank size of 5 gallons, IP67 ingress protection rating, and a 1/4" NPT intake port.
The VIAIR compressor kit comes with a thermal overload protector and vibration isolators for smooth operation. The stainless steel braided leader hose and comprehensive mounting hardware make it easy to install.
Specifications and Dimensions
12-Volt Permanent Magnetic Motor
Duty Cycle: 33% @ 100 PSI
Max. Working Pressure: 150 PSI
Max. Air Tank Size: 5.0 Gallon
Max. 12V Amp Draw: 23 Amps
Max. 24V Amp Draw: 13 Amps
1/4″ NPT Intake Port
Ingress Protection Rating: IP67
Dimensions: 8″L x 4″W x 6.75″H
Net Weight: 7.5 lbs.
Key Features and Benefits
33% duty cycle at 100 PSI and a max working pressure of 150 PSI.
5-gallon max air tank size provides ample air supply.
Thermal overload protector prevents overheating.
IP67-rated sealed design for enhanced weather resistance and durability.
Remote mount air filter assembly and replacement air filter elements included.
Vibration isolators ensure smooth operation.

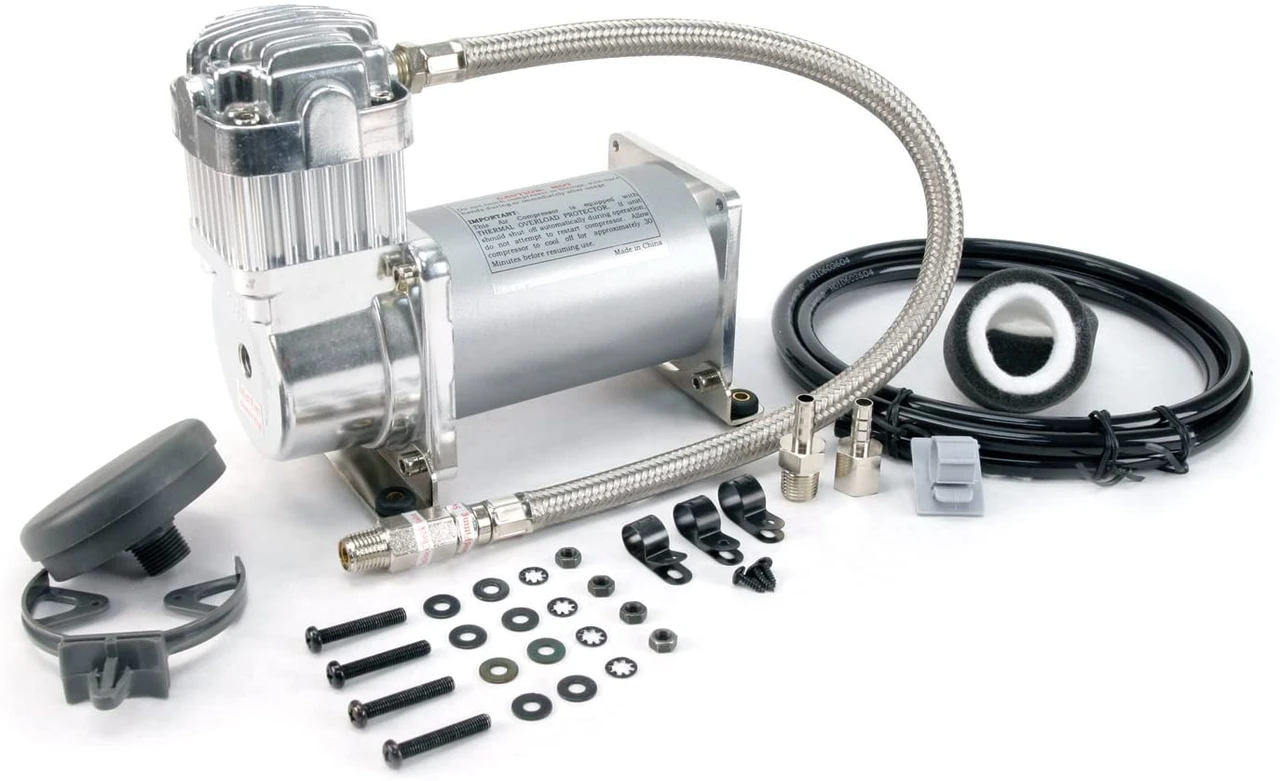

Thermal Overload Protector
Vibration Isolators
Mounting Hardware
Stainless Steel Braided Leader Hose
Air Line for Remote Mount Air Filter
Remote Mount Air Filter Assembly
(2) Replacement Air Filter Elements
Installation Instructions
Product identification
- Brand: Viair
- Model / MPN: 32538
