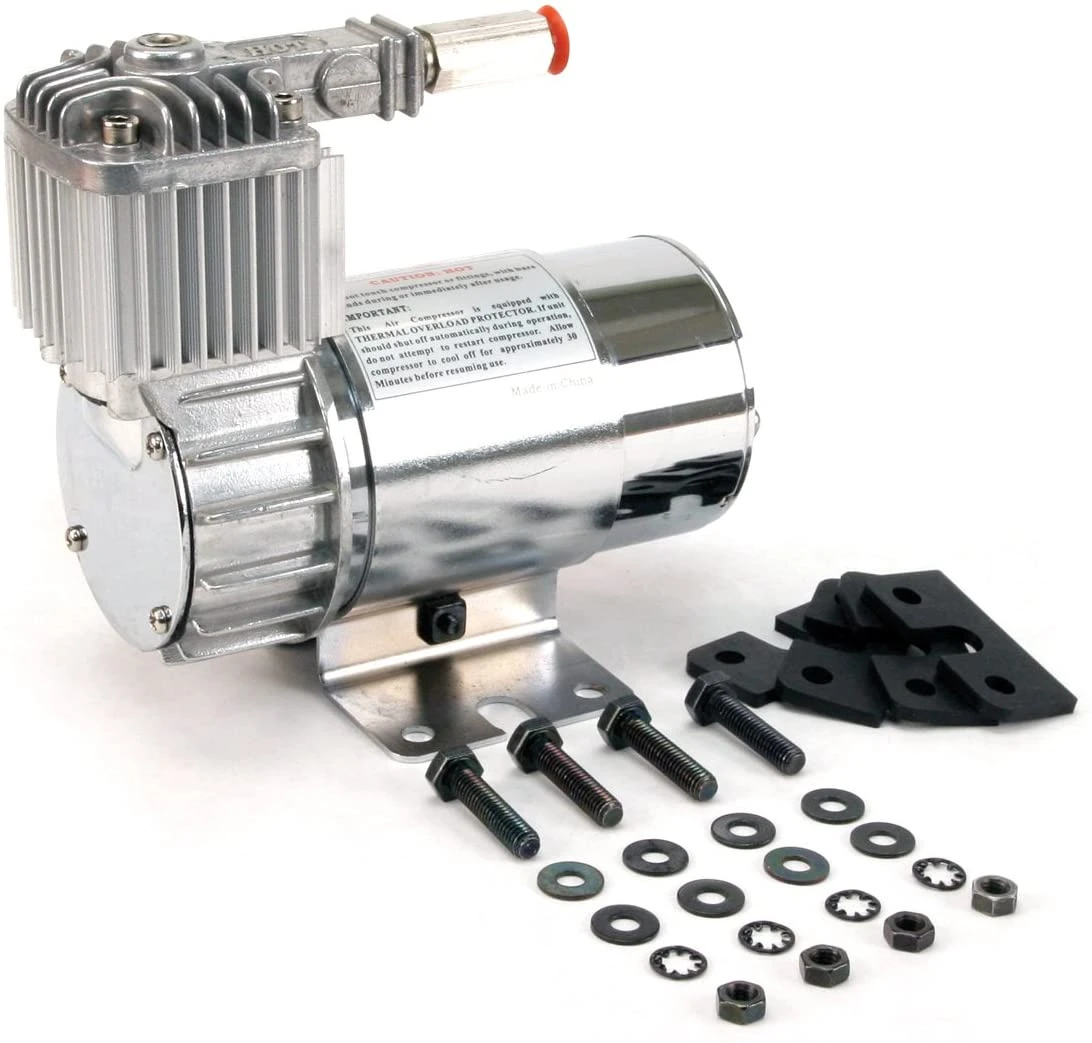

VIAIR 100C Chrome Compressor Kit with Omega Mounting Bracket (10016)
VIAIR 100C Chrome Compressor Kit with Omega Mounting Bracket (10016) is a 12-Volt air compressor designed for efficient air compression with a sleek chrome motor housing and end plates. This compressor features a permanent magnetic motor, delivering up to 130 PSI of maximum working pressure with a 15% duty cycle at 100 PSI.
The included omega-style mounting bracket provides secure installation, while the insulated pre-installed wiring ensures safe and reliable operation. This kit includes a thermal overload protector, vibration isolators, and a check valve for seamless performance.
Specifications and Dimensions
12-Volt Permanent Magnetic Motor
Duty Cycle: 15% @ 100 PSI
Max. Working Pressure: 130 PSI
Max. Air Tank Size: 1.0 Gallon
Max. 12V Amp Draw: 18 Amps
Ingress Protection Rating: IP54
Dimensions: 6.0″L x 3.5″W x 5.3″H
Net Weight: 3.45 lbs.
Key Features and Benefits
Prevents overheating during extended use
Ensures secure and stable installation
Eliminates head pressure for prolonged service life
Reduce noise and ensure stable operation
Thermal Overload Protector
Vibration Isolators
Mounting Hardware
Installation Instructions
Product identification
- Brand: Viair
- Model / MPN: 10016
