Viair 10010 100C 12V 130 PSI Compressor Kit
The Viair 10010 100C is a 12V compressor kit intended around a listed maximum tank size of one gallon. Its small-tank scope and 15% duty cycle at 100 PSI make intended operating time and recovery demand key checks before adding it to an air system.
Specifications and included details
- 12V compressor; maximum working pressure 130 PSI and maximum draw 14 A.
- 15% duty cycle at 100 PSI; maximum tank-size specification 1 gallon.

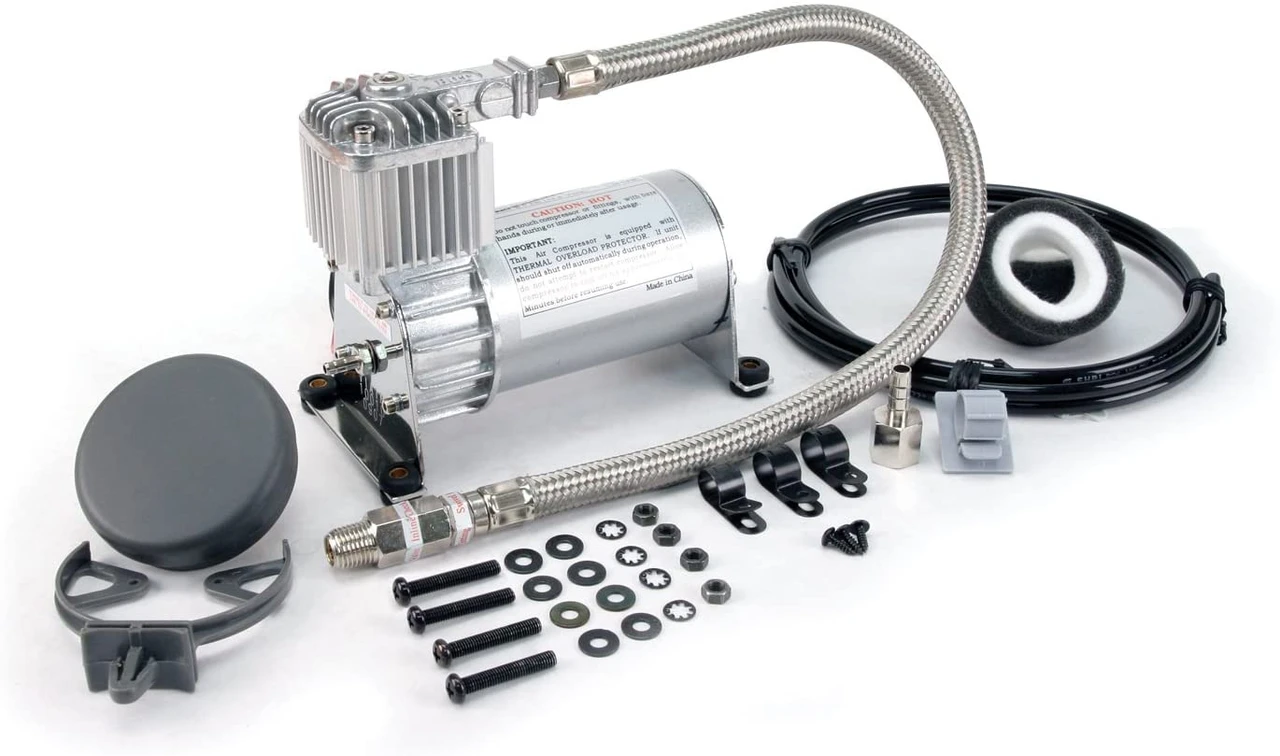

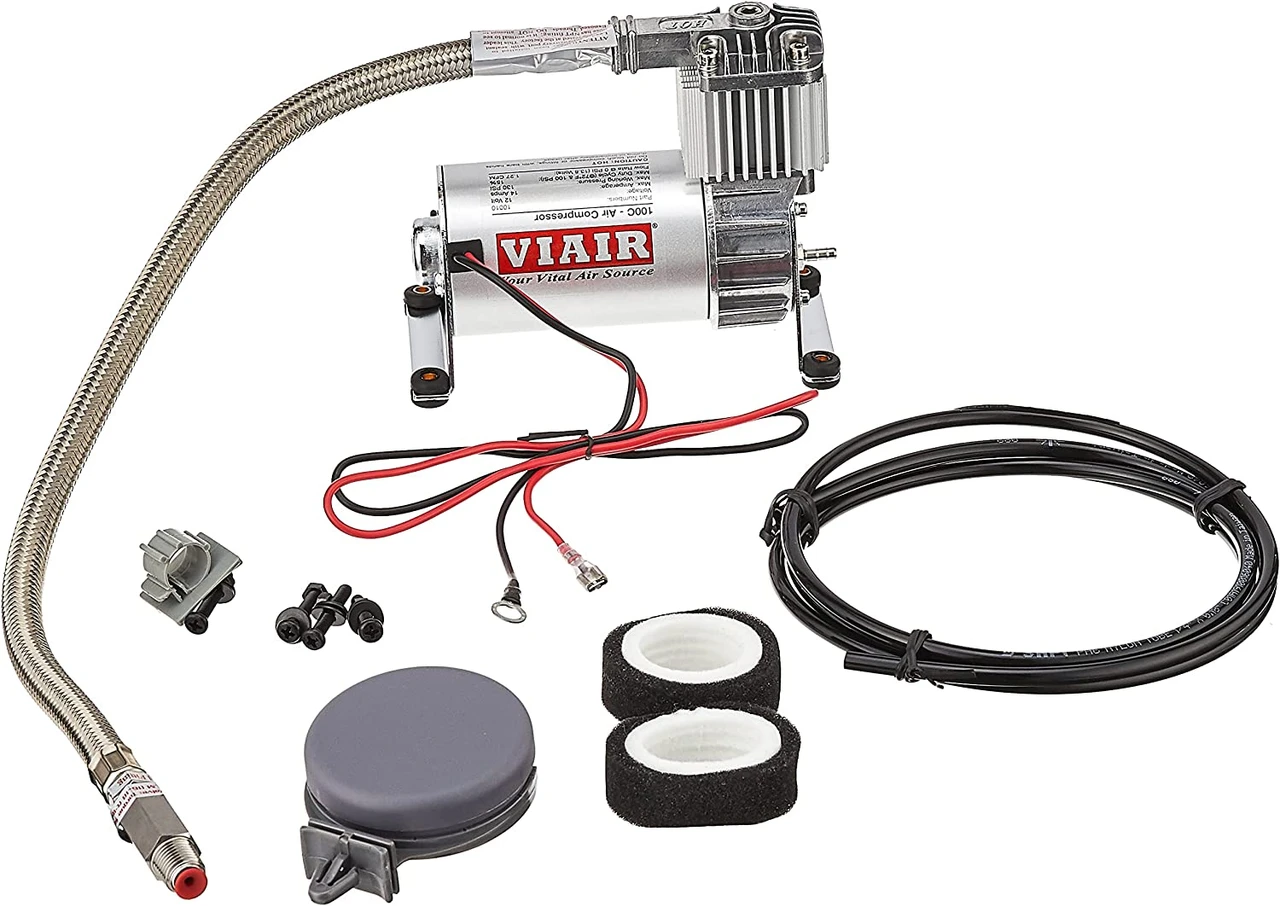

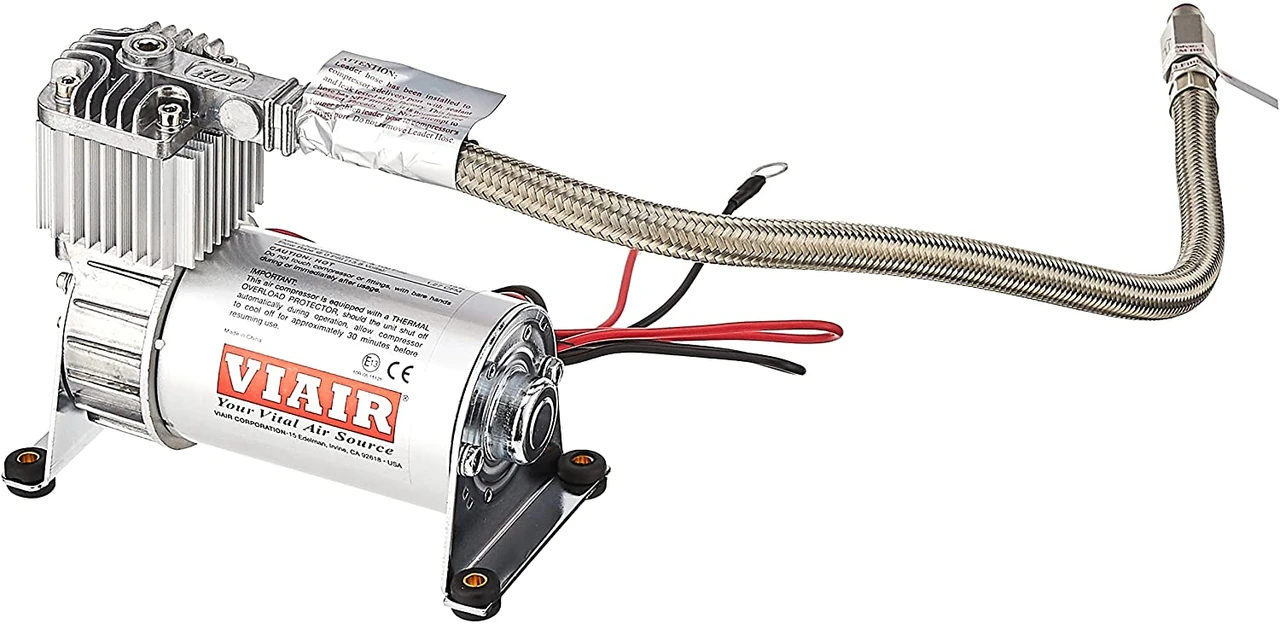

- Rubber-isolated mounting feet and braided leader hose with inline check valve.
- Remote-mount intake filter and two replacement dual-stage filter elements.
Before ordering
Confirm tank, controls, wiring and protection requirements with the installation instructions. The listed 1.27 CFM figure lacks a pressure condition here and should not be treated as delivery at 100 or 130 PSI. Tank inclusion is not established.
Product questions and answers
Is the one-gallon tank included?
No tank is established in the listed contents. One gallon describes the maximum tank-size specification.
Does 1.27 CFM apply at 130 PSI?
The available figure does not state its pressure condition. Do not use it as a confirmed loaded-flow value at 130 PSI.
Can it run continuously because it reaches 130 PSI?
No. Maximum pressure and duty cycle are separate. The listed duty cycle is 15% at 100 PSI, requiring the manufacturer-specified running and cooling schedule.
