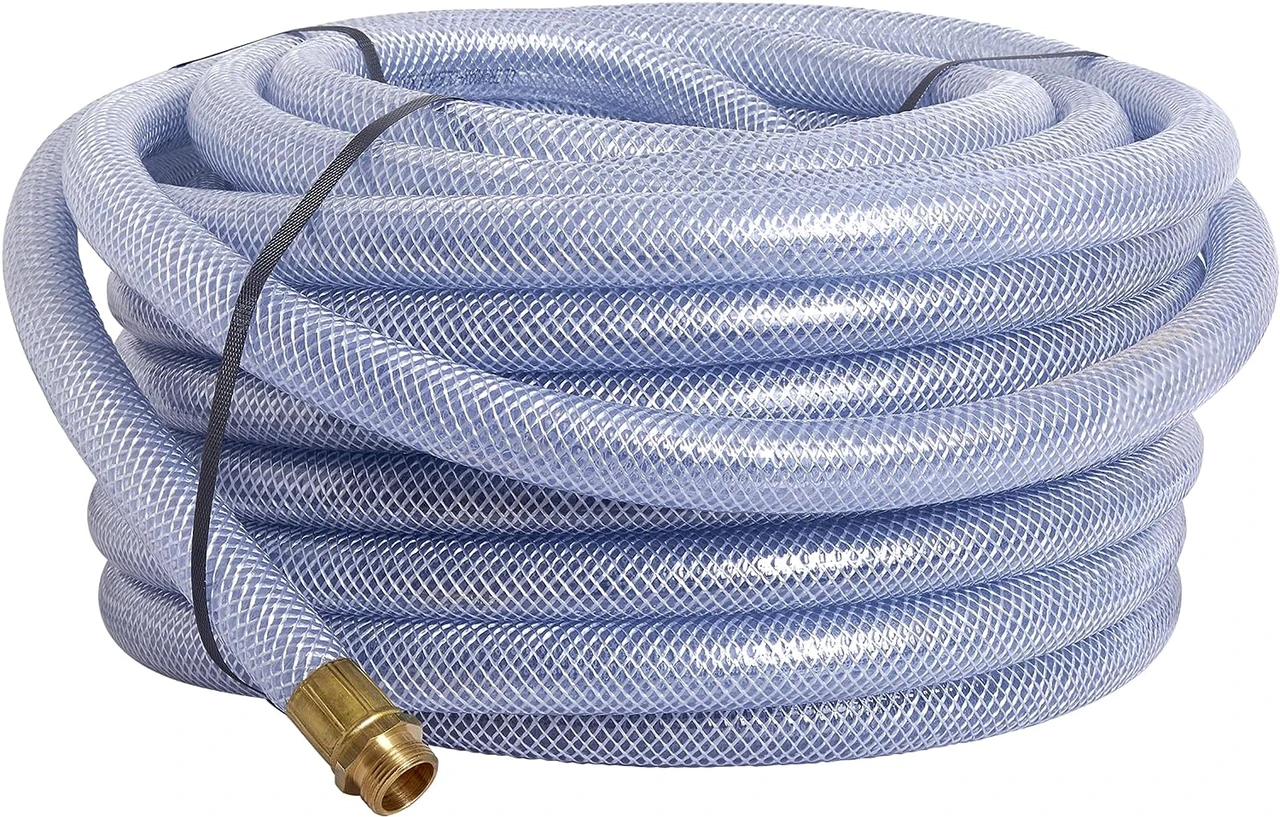

Underhill 1" x 100' Clear UltraMax Hose (H10-100C)
KEY FEATURES AND BENEFITS:
High Pressure Capability: Features a 150 PSI working pressure and a 600 PSI burst strength, ensuring reliable operation under significant water pressure and providing a safety margin.
Clear Pliovic Material: The transparent construction allows users to visually monitor water flow, which is particularly useful for controlled soaking applications on sensitive areas like golf greens.
Enhanced Durability: Made from clear Pliovic material reinforced with spiral synthetic yarn, offering resistance to abrasion, weather effects, and cracking, contributing to a longer service life.

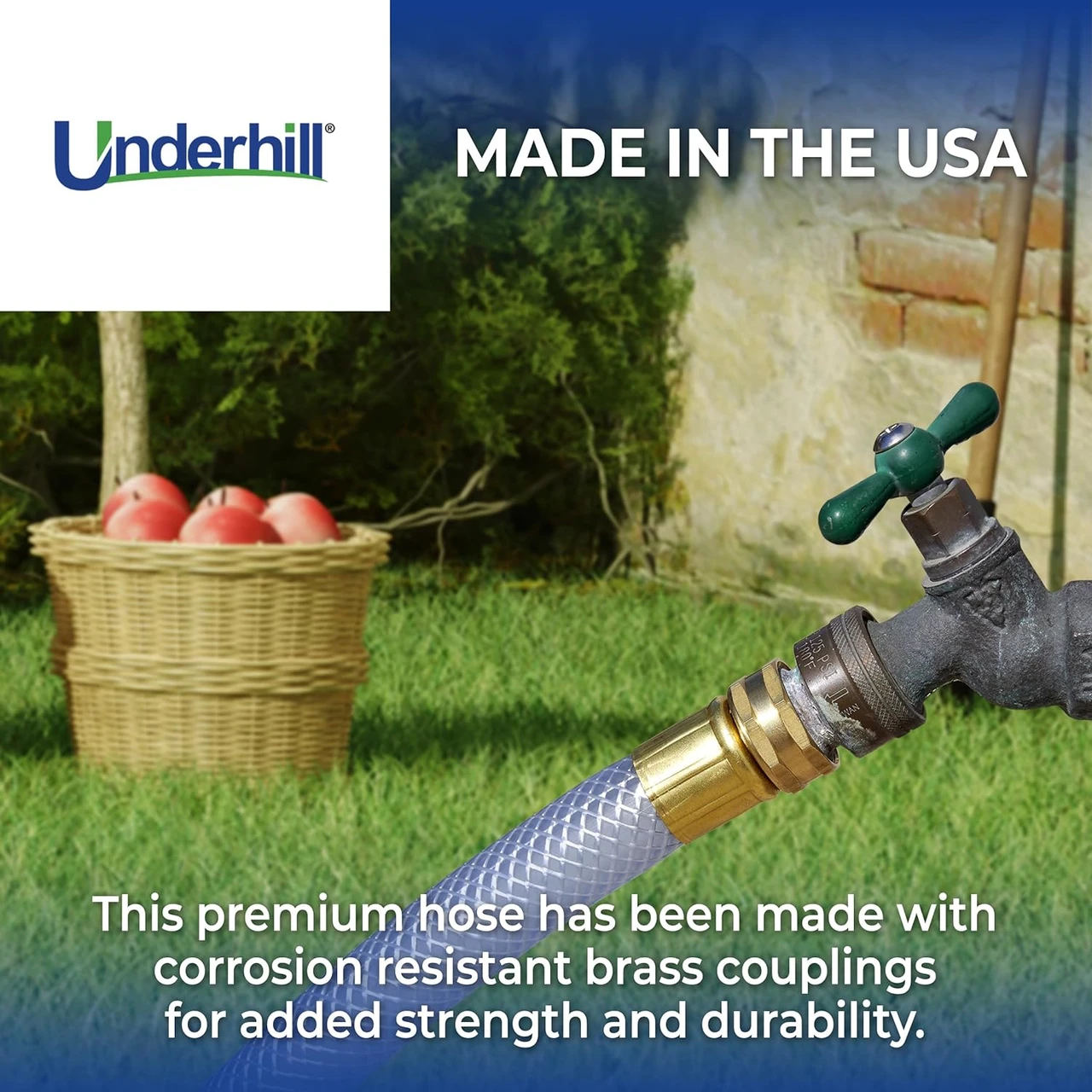

Professional Grade Couplings: Equipped with machined brass couplings that are corrosion resistant, providing strong, leak-resistant connections for consistent performance in commercial environments.
Lightweight for Portability: Despite its commercial-grade strength, the hose maintains a relatively lightweight profile, making it easier to transport and maneuver across large properties.
Non-Conductive Design: The hose material is non-conductive, with high electrical resistance, adding a safety aspect for professional users in various outdoor conditions.
Hose Diameter: 1 inch (ID)
Length: 100 feet
Working Pressure (WP): 150 PSI
Burst Pressure: 600 PSI
Material: Clear Pliovic material, reinforced with spiral synthetic yarn
Couplings: Machined brass couplings, 1" NPSH threads
Temperature Range: -10°F to 158°F (-23°C to 70°C)
Electrical Resistance: Greater than one megohm per inch of hose length at 1000 DC volts
Weight: Approximately 32-34 lbs per 100 feet
Origin: Made in USA
Included in Product: Underhill 1" x 100' Clear UltraMax Hose (H10-100C) with attached brass couplings
Connect to Water Source: Attach one end of the Underhill UltraMax Hose to a compatible water spigot or pump outlet. Ensure the brass coupling is tightened securely by hand to prevent leaks.
Attach Watering Tool: Connect your desired watering nozzle, sprinkler, or irrigation device to the other end of the hose, tightening the coupling firmly.
Uncoil and Position: Carefully uncoil the desired length of hose, laying it out to reach the area you intend to water. Avoid sharp bends or kinks that could restrict water flow.
Activate Water Flow: Slowly turn on the water source. Observe the clear hose to ensure water is flowing smoothly and there are no immediate leaks at the connection points.
Begin Watering: Direct your watering tool as needed to hydrate the target area. Adjust water pressure or flow rate as required for specific tasks.
After Use: Once watering is complete, turn off the water source. Detach your watering tool and then detach the hose from the spigot.
Drain and Store: Lift sections of the hose to drain any remaining water. Coil the hose neatly for storage in a cool, dry place, protecting it from direct sunlight when not in use to prolong its life.
BENEFITS OF USING UNDERHILL 1" X 100' CLEAR ULTRAMAX HOSE (H10-100C):
Facilitates efficient and expansive watering for professional landscapes and large properties.
Provides clear visual confirmation of water flow, assisting in precise application for specific tasks.
Offers reliable performance under varying water pressures due to its high burst strength.
Resists tangles and kinks, making it easier to manage and deploy across large areas.
Withstands challenging outdoor conditions, including temperature fluctuations and abrasion.
Supports safety in operation through its non-conductive material.
Reduces the need for frequent hose replacements, offering long-term value for commercial operations.
Its lightweight design simplifies transportation and setup across diverse terrain.
Manufactured with attention to quality in the USA, assuring product consistency.
Flexible Pliovic construction for ease of handling.
Smooth exterior finish that reduces friction and snagging.
Reinforced inner wall for structural integrity.
Resistant to cracking from environmental exposure.
Non-marking clear outer surface.
Durable connections with standard NPSH threads.
Designed for professional-grade water transfer.
Maintains integrity in various temperature conditions.
Engineered to support extensive periods of use.
Product identification
- Brand: Underhill
- Model / MPN: H10-100C
