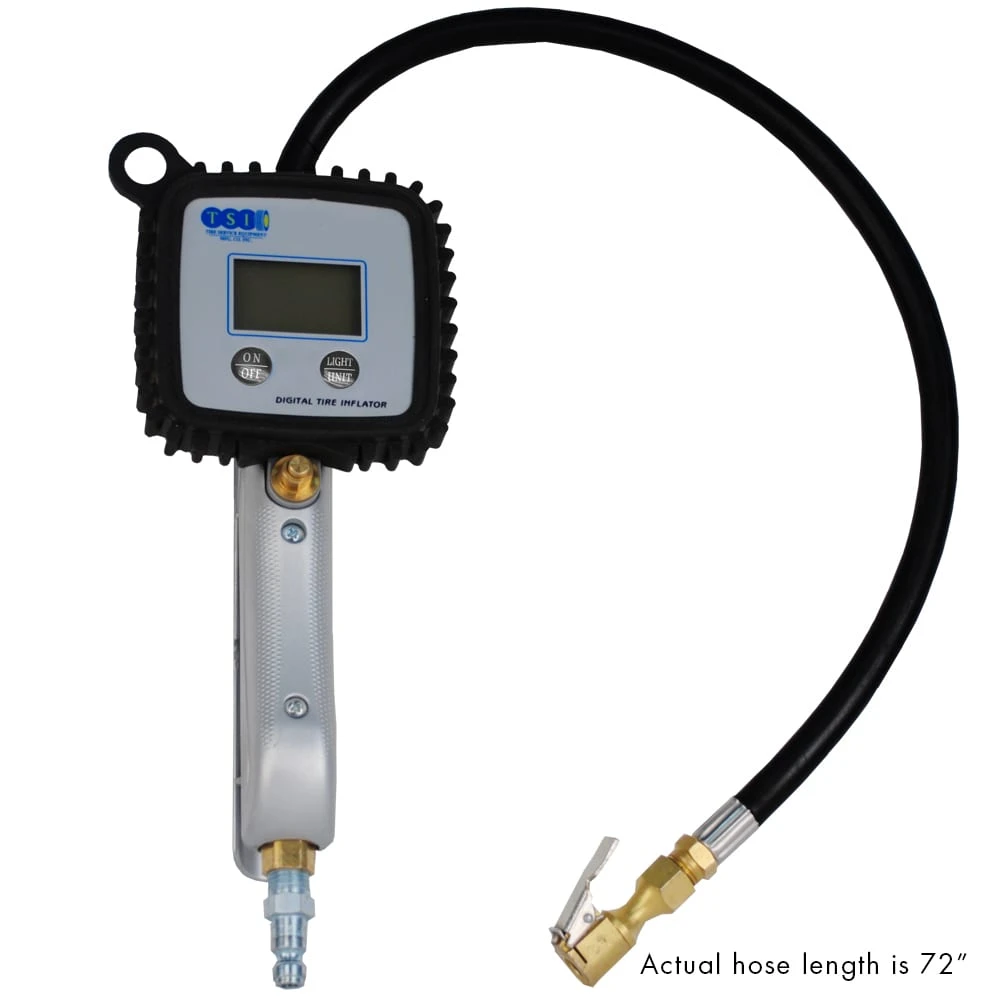

TSI Cheetah Digital Tire Inflator (DG-20)
Digital Tire Inflator
The DG-20 Digital Tire Inflator represents one of the most accurate and easy to use digital tire inflators on the market today. Featuring a large, clear & easy to read digital display, with a back light feature, the DG-20 is designed and built for the toughest shop environments. The durable LCD display is protected by a large full body rubber shock boot which is included. The DG-20 is programmable to display in four units: PSI, BAR, KGF and KPA. The DG-20 services inflation ranges from 0-175 PSI with an accuracy of +/- 1% full scale. A simple inflate and/or deflate control allows for precise inflation control by the user. The DG-20 comes equipped with a 72” inflation hose assembly with a locking straight chuck.
High inflation and deflation rates
Clear & easy to read digital display
Reset & Back light switches
Programmable for units of PSI, BAR, KGF and KPA
High precision pressure sensor from US NOVASENSOR
Long life battery
Low battery warning light
Over pressure warning: if pressure exceeds 250 psi / 17 bar
Each unit is 100% quality tested
Inlet: ¼” female BSPT/NPT
Hose length: 72”

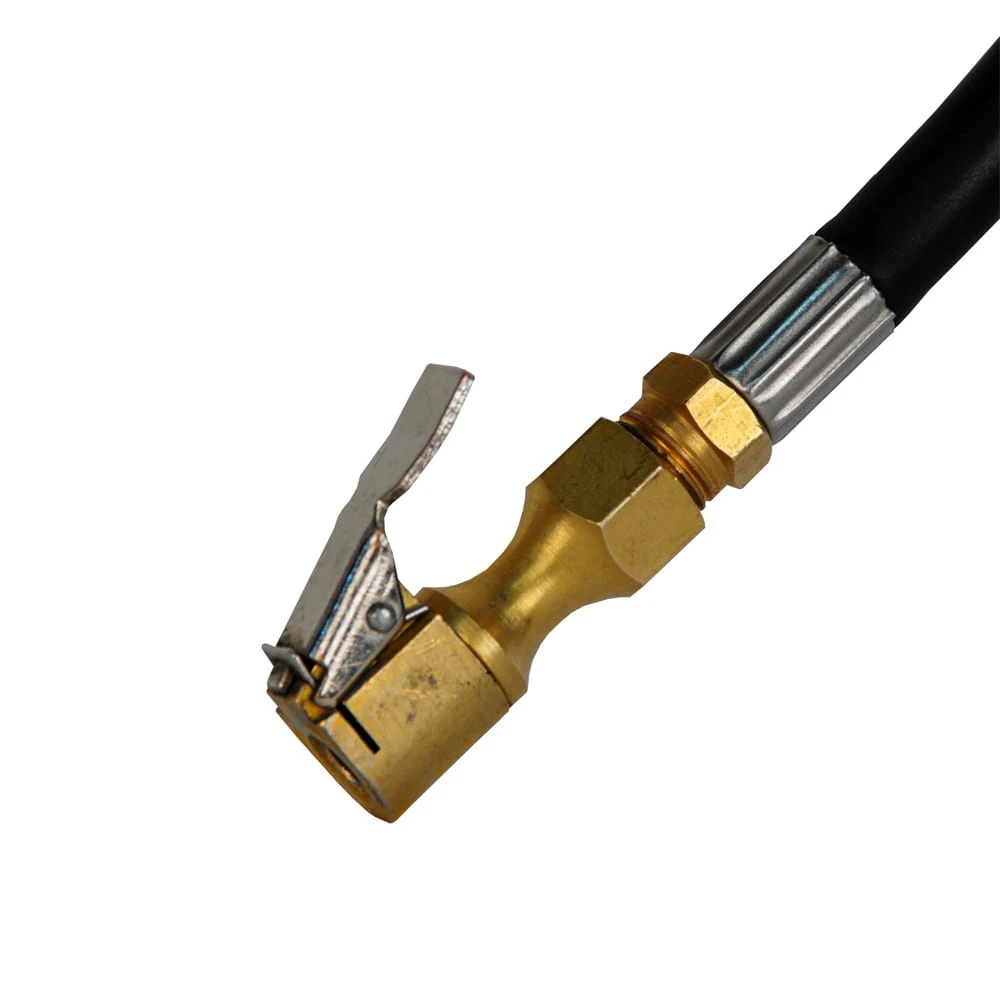

Tire valve connector: Clip on locking straight chuck
Accuracy reading (PSI/KPA/BAR): 0.1/1/0.01
Max inlet pressure(PSI/KPA/BAR): 250/1200/17
Inflation range (PSI/KPA/BAR): 0 to 175/1200/12
Product identification
- Brand: TSI
- Model / MPN: DG-20
