Tracerline R134a/PAG EZ-Ject A/C Dye Injection Kit (TP9848-BX)
The Tracerline R134a/PAG EZ-Ject A/C Dye Injection Kit (TP9848-BX) is the definitive tool for pinpointing leaks in R-134a vehicle air conditioning systems. This comprehensive kit provides a fast, clean, and highly effective method for injecting fluorescent dye, making leak detection a straightforward process for automotive technicians. The system is centered around a multi-dose, pre-filled cartridge that delivers an OEM-grade, co-solvent-free dye directly into the A/C system's low-side service port. This unique design eliminates spills and waste, ensuring a professional and precise application every time.
KEY FEATURES AND BENEFITS:
Mess-Free Injection: The unique EZ-Ject system uses a pre-filled cartridge and a plunger-style injector, eliminating the need for pouring or complicated hookups, which prevents spills and waste.
OEM-Approved Fluorescent Dye: The included Fluoro-Lite® dye is approved by major vehicle and component manufacturers, meeting SAE J2297 standards and ensuring it is safe and effective for R-134a/PAG systems.
Multi-Dose Cartridge: The single 0.5 oz (15 ml) dye cartridge can service up to 14 vehicles, providing a cost-effective solution for professionals and significantly reducing the need for frequent replacements.
Complete Kit: The TP9848-BX kit includes all the necessary components for immediate use, including the dye injector assembly, dye cartridge, and a dedicated R-134a hose/coupler, making it a comprehensive diagnostic solution.
Enhanced Visibility: The dye is formulated to be 10% brighter than previous versions, improving its visibility under a UV lamp and making it easier to pinpoint even small or hard-to-reach leaks.

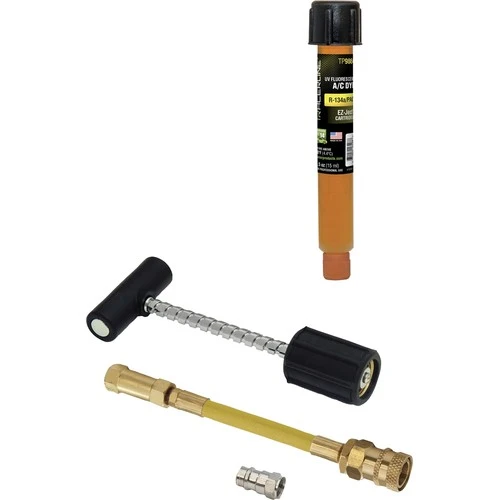

Included in Kit (TP9848-BX):
TP9845 EZ-Ject™ Dye Injector Assembly
TP9860 EZ-Ject™ R-134a/PAG cartridge (0.5 oz / 15 ml)
TP9847 R-134a Hose/Coupler & Purge Fitting
Prepare the Injector: Insert the TP9860 EZ-Ject™ R-134a/PAG cartridge into the TP9845 EZ-Ject™ dye injector assembly.
Connect to System: Connect the TP9847 R-134a hose/coupler to the injector assembly. Attach the coupler to the low-side service port of the vehicle’s A/C system.
Purge Air: Before injecting the dye, push a small amount of dye into the purge fitting to remove any air from the hose.
Inject the Dye: Push the plunger on the injector assembly to introduce the desired amount of fluorescent dye into the A/C system.
Run the System: Disconnect the injector and run the vehicle's A/C system for a few minutes to circulate the dye with the refrigerant and oil.
Inspect for Leaks: Use a UV leak detection lamp to scan the A/C system's components, including hoses, fittings, and the condenser. The dye will fluoresce brightly at the leak point.
BENEFITS OF USING TRACERLINE R134A/PAG EZ-JECT A/C DYE INJECTION KIT (TP9848-BX):
Designed for efficient and accurate leak detection with no mess or hassle.
OEM-grade dye is compatible with R-134a refrigerant and PAG oil.
Multi-dose cartridge allows for use across multiple vehicles, saving time and cost.
Bright fluorescent dye offers clear visual confirmation of leaks, reducing guesswork.
Dye can remain in the system, aiding future preventative maintenance checks.
Fluorescent dye is co-solvent free
Injector assembly features a plunger-style mechanism
Dye meets or exceeds SAE J2297 standards
Designed for use with R-134a refrigerant and PAG oil
Kit includes all necessary components for immediate use
Dye cartridge is multi-dose, capable of servicing up to 14 cars
Dedicated R-134a hose/coupler with a purge fitting
The dye can be left in the system for future checks
Product identification
- Brand: Tracerline Spectronics
- Model / MPN: TP9848-BX
