Tracerline EZ-Shot Dye Injection Kit (TP9790-BX)
The Tracerline EZ-Shot Dye Injection Kit (TP9790-BX) is a complete solution designed for precise and efficient detection of leaks in automotive air conditioning (A/C) systems. This professional-grade kit allows you to quickly introduce fluorescent dye into the A/C system, making even the smallest leaks visible under a UV light. It’s an essential tool for automotive technicians and DIY enthusiasts looking to accurately diagnose and repair A/C refrigerant leaks.
KEY FEATURES AND BENEFITS:
Universal A/C System Compatibility: The included universal/ester dye is compatible with both R-134a and R-1234yf refrigerant systems, ensuring versatility across a wide range of modern and older vehicles. This eliminates the need for multiple dye types.
Efficient Dye Injection: The EZ-Shot caulking gun-style injector assembly provides a quick and straightforward method for injecting the dye, allowing for fast system charging and minimal downtime.
High-Capacity Dye Cartridge: The 8 oz (237 ml) BigEZ™ dye cartridge can service up to 64 vehicles, offering a cost-effective solution for frequent use and reducing the need for constant cartridge replacement.
Visible Leak Detection: Once the dye is circulated, it escapes with the refrigerant at the leak point, glowing brightly under a UV light. This makes it easy to pinpoint the exact location of the leak, saving time and effort in diagnosis.
Long-Lasting Dye Formula: The fluorescent dye is formulated to remain safely within the A/C system after injection, providing continuous leak detection capability for future issues or as a preventative measure after repairs are completed.
Product Capacity: 8 oz (237 ml)

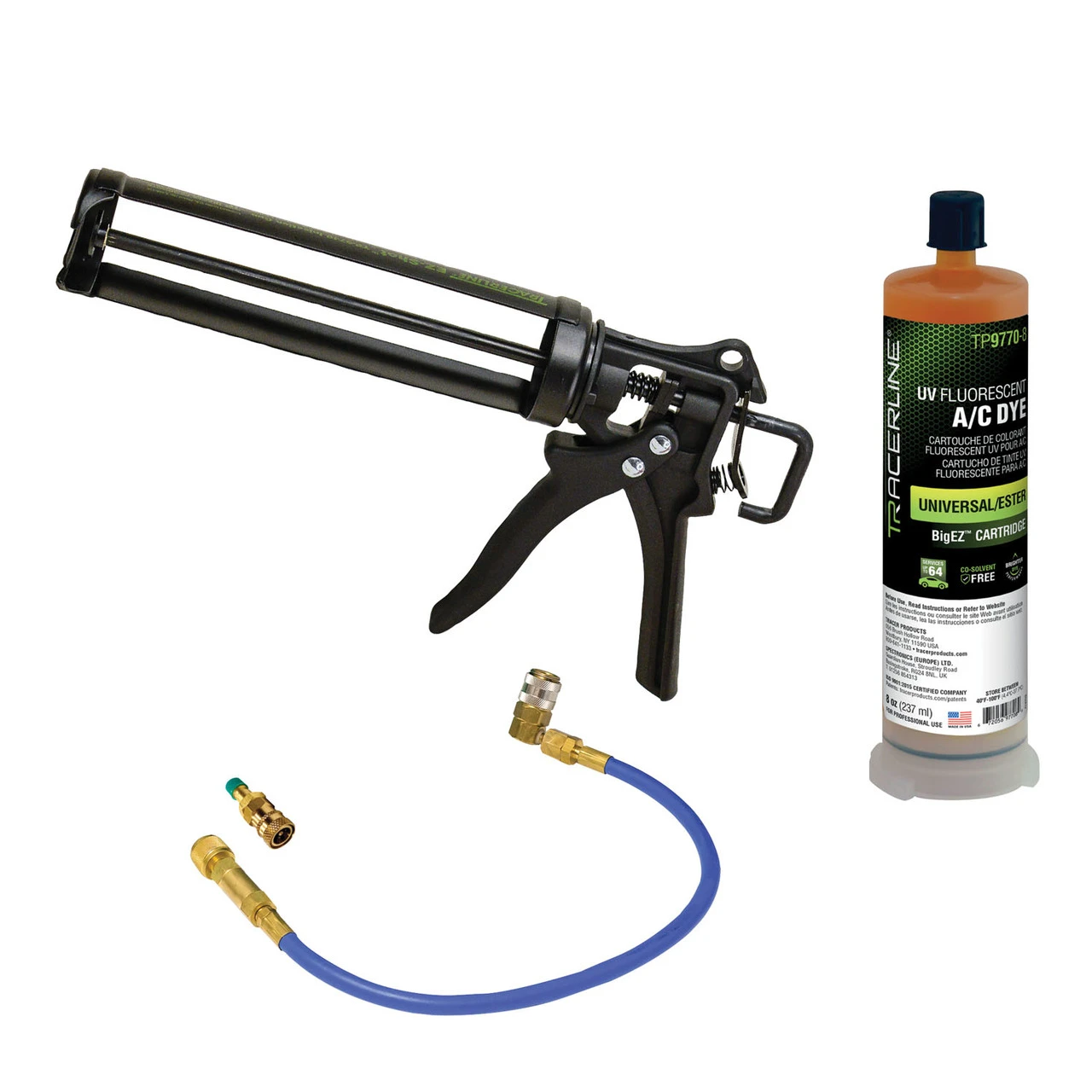

Included in Product:
TP9770-8 8 oz (237 ml) BigEZ™ Universal/Ester cartridge
TP9749 EZ-Shot™ caulking gun-style dye injector assembly
TP11 R-134a hose/coupler with BigEZ™ adapter & purge fitting
TP9831 R-1234yf adapter
Prepare the System: Ensure the vehicle's A/C system is properly charged or has sufficient refrigerant for the dye to circulate.
Connect the Injector: Screw the 8 oz BigEZ™ Universal/Ester dye cartridge (TP9770-8) securely into the EZ-Shot™ caulking gun-style dye injector assembly (TP9749).
Attach Hose: Depending on the vehicle's refrigerant type, attach either the TP11 R-134a hose/coupler or the TP9831 R-1234yf adapter to the injector.
Connect to A/C Port: Connect the appropriate hose/coupler or adapter to the low-side service port of the vehicle's A/C system.
Purge Air (R-134a hose only): If using the R-134a hose (TP11), briefly press the purge fitting to release any air from the hose before injecting the dye into the system.
Inject Dye: Squeeze the trigger of the EZ-Shot™ injector to introduce the desired amount of fluorescent dye into the A/C system. Follow the vehicle manufacturer's guidelines for dye quantities, if available.
Circulate Dye: Run the vehicle's A/C system for approximately 5-10 minutes to allow the dye to thoroughly circulate with the refrigerant and oil.
Inspect for Leaks: Using a separate UV leak detection lamp (not included), scan all A/C components, hoses, and fittings. Any glowing areas indicate a leak.
BENEFITS OF USING TRACERLINE EZ-SHOT DYE INJECTION KIT (TP9790-BX):
Precisely identifies the exact location of refrigerant leaks, eliminating guesswork.
Speeds up the diagnostic process, leading to quicker repairs and reduced labor time.
Compatible with a broad range of vehicle makes and models due to universal dye and multiple adapters.
Allows for proactive leak detection, helping prevent minor leaks from becoming major system failures.
Contributes to environmental protection by enabling the repair of leaks and reducing refrigerant emissions.
The system can be left in the vehicle after a repair to aid in future leak identification.
Comfortable pistol-grip injector design for easy handling.
Includes adapters for both R-134a and R-1234yf systems.
Bright, high-concentration dye ensures visible leak detection.
Large 8 oz dye cartridge supports multiple uses.
One-step hookup design streamlines the injection process.
Professional-grade construction ensures durability and consistent performance.
Product identification
- Brand: Tracerline Spectronics
- Model / MPN: TP9790-BX
