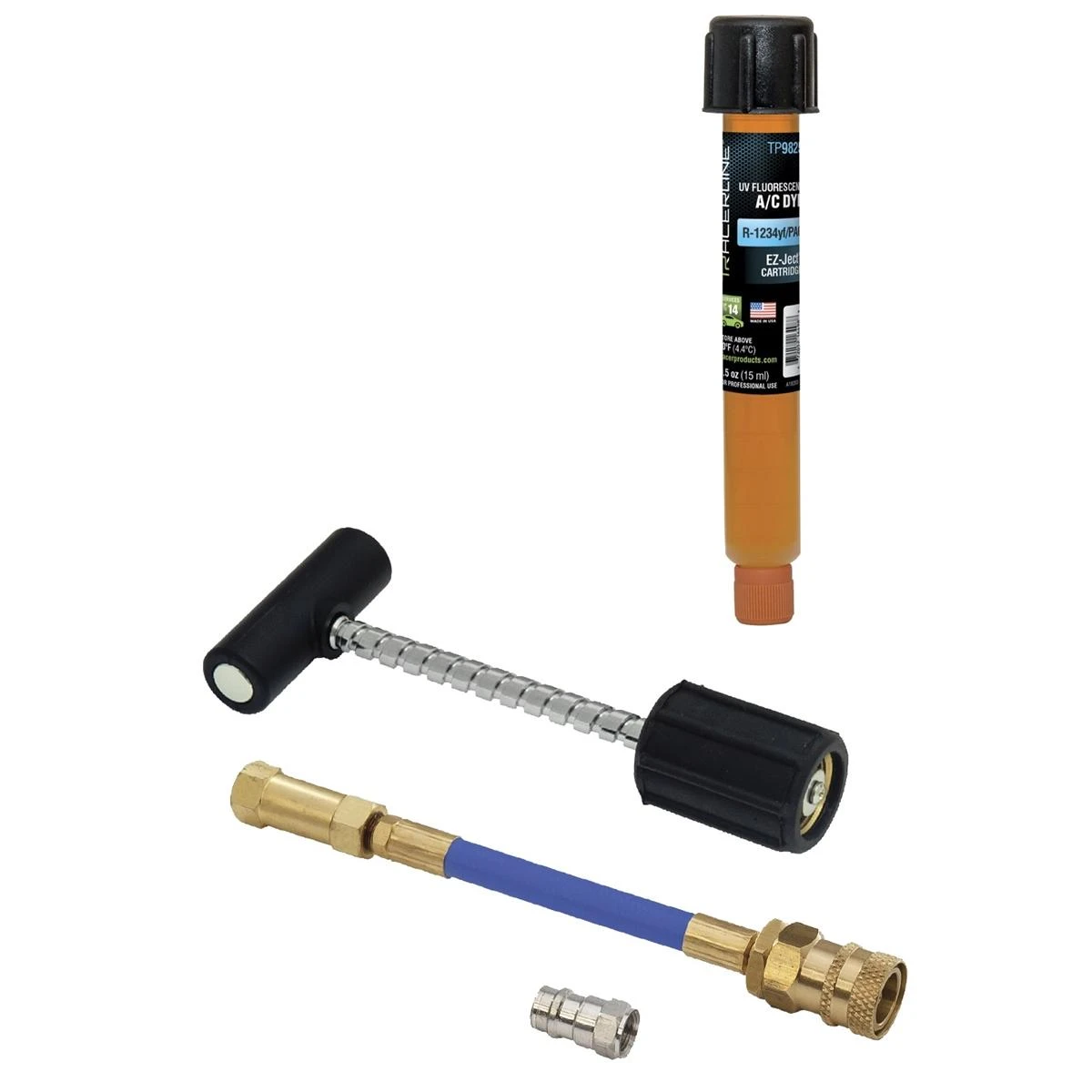

Tracerline EZ-Ject Dye Injection Kit (TP9824-BX)
KEY FEATURES AND BENEFITS:
OEM-Grade R-1234yf/PAG Fluorescent Dye: The included Fluoro-Lite® 5 dye is specifically formulated for R-1234yf systems with PAG lubricants, meeting stringent OEM and SAE J2297 standards for compatibility and performance.
Co-solvent Free Formula: The dye's composition is free of co-solvents, preserving the integrity, viscosity, and lubricity of the A/C system's lubricant, thereby protecting critical components like compressors.
Enhanced Dye Brightness and Stability: Fluoro-Lite® 5 dye fluoresces up to 10% brighter than previous formulas, making even small leaks easier to locate. Its improved stability allows it to tolerate extreme temperatures and moisture, extending its effectiveness.
Multi-Dose Cartridge for Cost Efficiency: Each 0.5 oz (15 ml) dye cartridge can service up to 14 vehicles, significantly reducing operating costs compared to single-use dye applications.
High-Dielectric Properties: The dye maintains high dielectric properties, which is crucial for hybrid and electric vehicles with electrically driven compressors, protecting against electrical damage.
User-Friendly EZ-Ject™ System: The intuitive design of the EZ-Ject™ injector assembly allows for quick, clean, and accurate dye injection, minimizing spills and reducing technician time.
Long-Lasting Leak Detection: The dye can safely remain in the A/C system for an extended period, allowing for future leak detection or as a preventative measure.
Part Number: TP9824-BX
Refrigerant Compatibility: R-1234yf
Dye Volume (per cartridge): 0.5 oz (15 ml)
Dye Type: Fluorescent, PAG (Polyalkylene Glycol)
Services Per Cartridge: Up to 14 vehicles
Standards Complied: SAE J2297
Included in Product:
TP9825 EZ-Ject™ R-1234yf/PAG cartridge
TP9845 EZ-Ject™ dye injector assembly
TP10 R-1234yf hose/coupler & purge fitting
Prepare the System: Ensure the vehicle's R-1234yf A/C system is properly charged and operational.
Attach Dye Cartridge: Screw the TP9825 EZ-Ject™ R-1234yf/PAG dye cartridge onto the TP9845 EZ-Ject™ dye injector assembly until secure.
Connect Hose: Attach the TP10 R-1234yf hose/coupler to the EZ-Ject™ injector assembly.
Connect to Vehicle: Connect the R-1234yf coupler end of the TP10 hose to the vehicle's R-1234yf low-side service port. Ensure a secure connection.
Purge Air: Briefly open the purge fitting on the hose to release any air from the line before injection.
Inject Dye: Slowly depress the plunger on the EZ-Ject™ injector assembly to inject the desired amount of fluorescent dye into the A/C system. Refer to the system's specifications for the recommended dye amount, or use one service dose from the multi-dose cartridge.
Run System: Once the dye is injected, run the vehicle's A/C system for at least 5-10 minutes to allow the dye to circulate thoroughly with the refrigerant and oil.
Inspect for Leaks: Use a Tracerline UV leak detection lamp (sold separately) to scan all A/C components, hoses, and fittings for a bright fluorescent glow, indicating a leak point.
BENEFITS OF USING TRACERLINE EZ-JECT DYE INJECTION KIT (TP9824-BX):
Streamlines the R-1234yf A/C leak detection process for improved shop efficiency.
Minimizes refrigerant loss by quickly identifying leak sources.
Reduces technician time spent on diagnostic procedures.
Enhances customer satisfaction by providing accurate and reliable A/C repairs.
Protects valuable A/C system components from harm due to incompatible dye formulations.
Offers a cost-effective solution with its multi-dose dye cartridge.
Supports environmental responsibility by pinpointing leaks in systems using lower GWP refrigerants.
Pre-filled, multi-dose dye cartridge
Integrated check valve on injector assembly
Quick-connect R-1234yf specific coupler
Compact and ergonomic injector design
Transparent dye cartridge for content visibility
Purge fitting for air removal from hose
Resistant to common A/C system chemicals
Product identification
- Brand: Tracerline Spectronics
- Model / MPN: TP9824-BX
