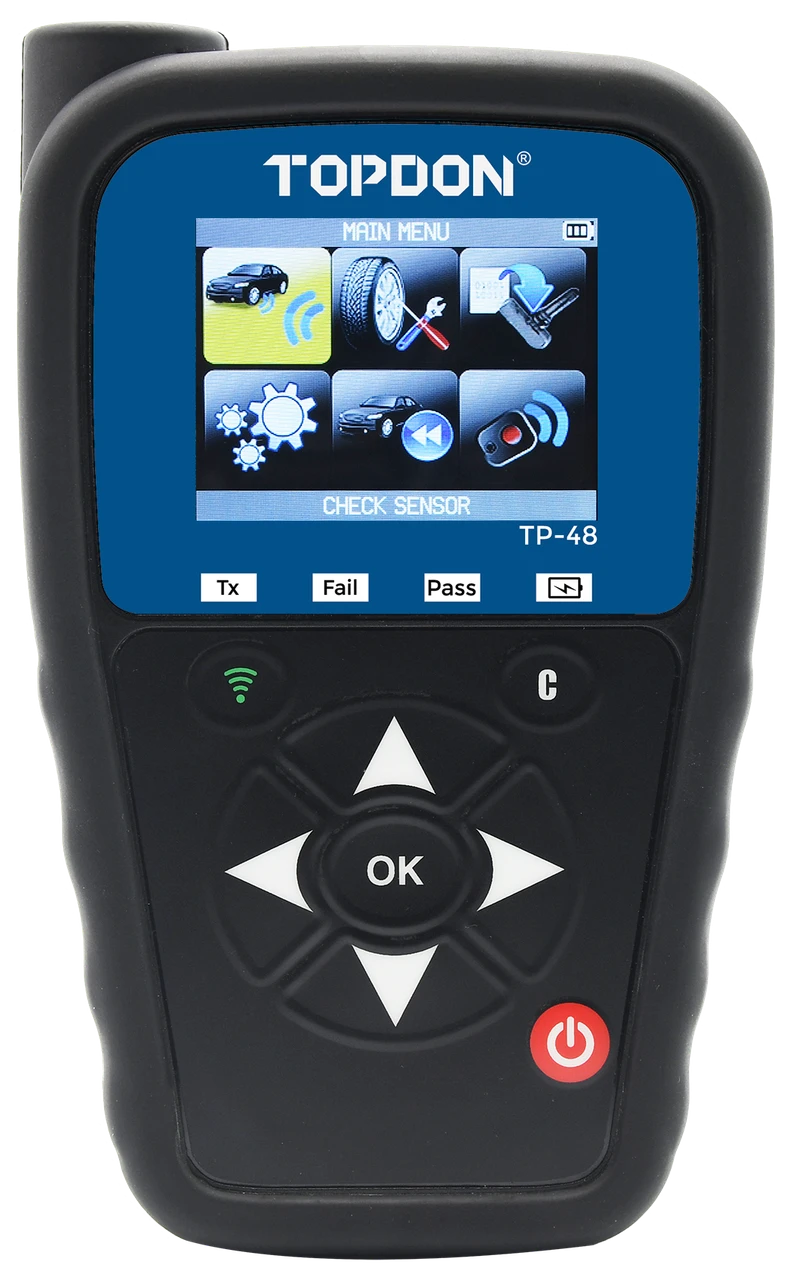

TOPDON TP48 Advanced TPMS Diagnostic Tool with OBDII Capabilities (TD52170002)
TOPDON TP48 TPMS Diagnostic Tool (TD52170002) enhances TPMS management by integrating OBDII functionalities, making it a superior choice for automotive professionals. The tool supports advanced diagnostics and programming for OEM and aftermarket TPMS sensors, ensuring comprehensive vehicle coverage and superior diagnostic accuracy.
This advanced tool not only activates and reads TPMS sensors but also provides detailed vehicle insights through its ECU connectivity, helping technicians streamline their service processes. With its robust features and easy-to-navigate interface.
Specifications and Dimensions
Display: 2.8��� Color LCD Screen
Battery: 3000mAh rechargeable lithium-polymer
Battery Life: Approx. 300 activations per full charge
Casing: Protective rubber case
Operating Temperature: -4��F to 131��F (-20��C to +55��C)
Storage Temperature: -40��F to 140��F (-40��C to +60��C)
Operating Altitude: Up to 6560ft (2000m)
Frequency: 315 and 433 MHz
Weight: With rubber case ��� 1.0 lbs. (0.45 kg), Without rubber case ��� 0.6 lbs. (0.27 kg)
Dimensions (HxWxD): 6.8��� x 3.8��� x 1.4��� (17.4cm x 9.7cm x 3.6cm)
Key Features and Benefits
Comprehensive TPMS diagnostics with 98.6% relearn coverage for a wide range of vehicles.
OBDII capabilities for enhanced diagnostics and ECU interactions including unlocking and placard adjustments.
Supports programming for over 20 aftermarket sensor brands, enhancing workshop readiness.
Incorporates more than 15 TPMS functions, including OBDII relearning and ECU unlocking.
Designed with a multilingual menu supporting 23 languages, facilitating global use.
Product identification
- Brand: Topdon
- Model / MPN: TD52170002
