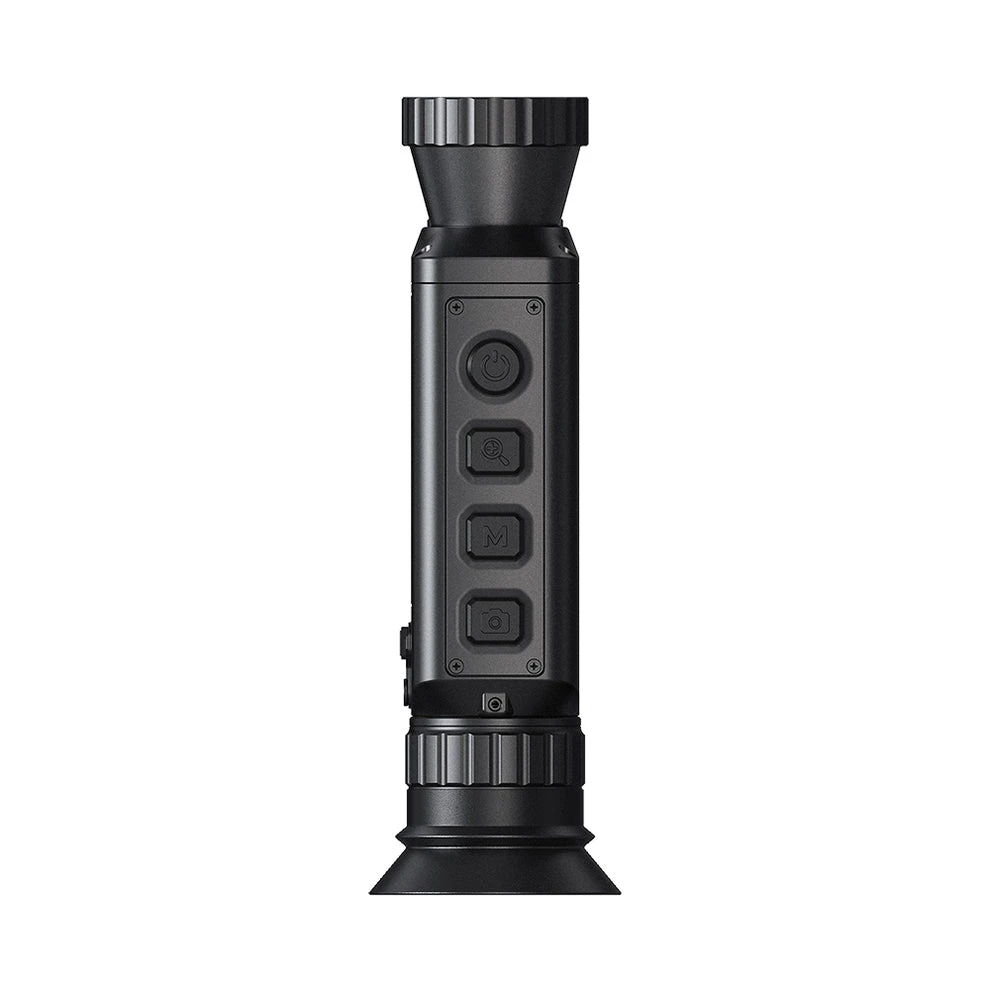

TopDon Thermal Advanced Monocular Camera (TS005)
Advanced Thermal Monocular Camera – TS005
The TS005 Advanced Thermal Monocular Camera is engineered for those who demand exceptional performance in thermal imaging across diverse and challenging environments. Whether you're engaged in wildlife observation, search and rescue missions, outdoor exploration, or law enforcement operations, the TS005 stands as a reliable companion, delivering crisp, high-resolution thermal visuals even in the darkest and most extreme conditions. Its robust construction, powered by a 35mm adjustable lens and 384×288 infrared resolution, ensures that every detail is captured with absolute clarity, no matter the distance or environmental obstacles. Crafted with a high-grade aluminum alloy housing, the TS005 is not only lightweight but also highly durable, designed to withstand the rigors of demanding outdoor use.
What sets the TS005 apart is its ability to perform seamlessly in harsh environments. Equipped with two rechargeable 18650 batteries that offer up to six hours of uninterrupted operation, the device eliminates the need for polarity alignment, simplifying battery swaps even in total darkness. The monocular's design includes an adjustable eyepiece suitable for users with myopia, ensuring that no one is left out of the experience. Additionally, the 1024×768 OLED display, coupled with an advanced 12μm sensor, guarantees that every thermal image is rendered with precise detail. This monocular's high sensitivity (NETD < 35mK) and 50Hz frame rate provide fluid tracking of moving targets, allowing for clear and uninterrupted observation even in fog, rain, or snow.
Designed with professionals in mind, the TS005 includes a range of features that elevate it beyond ordinary thermal monoculars. Its five color palettes—Red-Hot, Iron, Rainbow, White-Hot, and Black-Hot—enable users to optimize their view for specific tasks, from identifying heat sources in dense foliage to distinguishing between animals in open fields. With a built-in laser rangefinder that spans up to 650 yards and an impressive detection distance of up to 4200 feet, you can measure, locate, and observe with pinpoint accuracy. Whether it's navigating through dense forests or monitoring vast landscapes, the TS005 equips you with the clarity and confidence needed for any adventure.

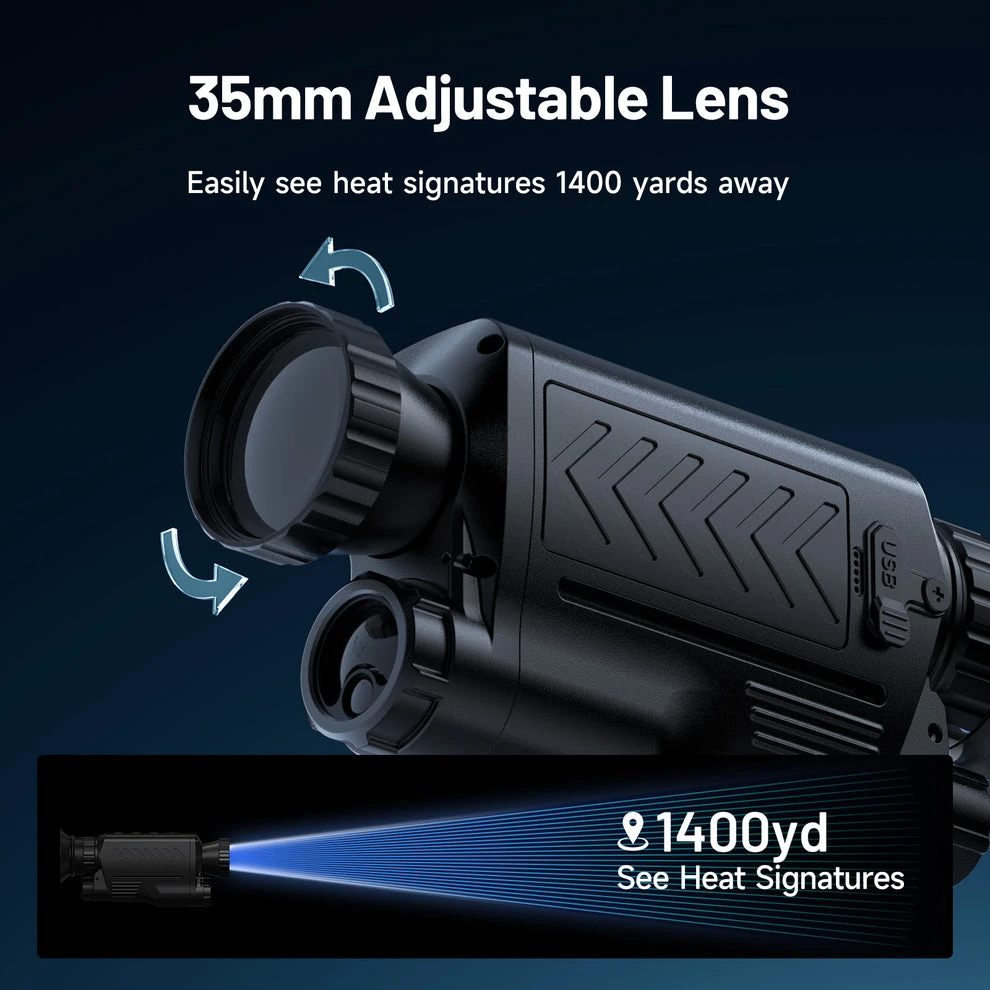

Adjust, Focus, Conquer the Night: Adjustable 35mm lens for spotting thermal signals over great distances, with an eyepiece optimized for all users, including those with myopia.
Pinpoint Precision, Even at Great Distances: Identify heat variations up to 1400 yards with the 35mm lens and accurately measure targets up to 650 yards with the built-in laser rangefinder.

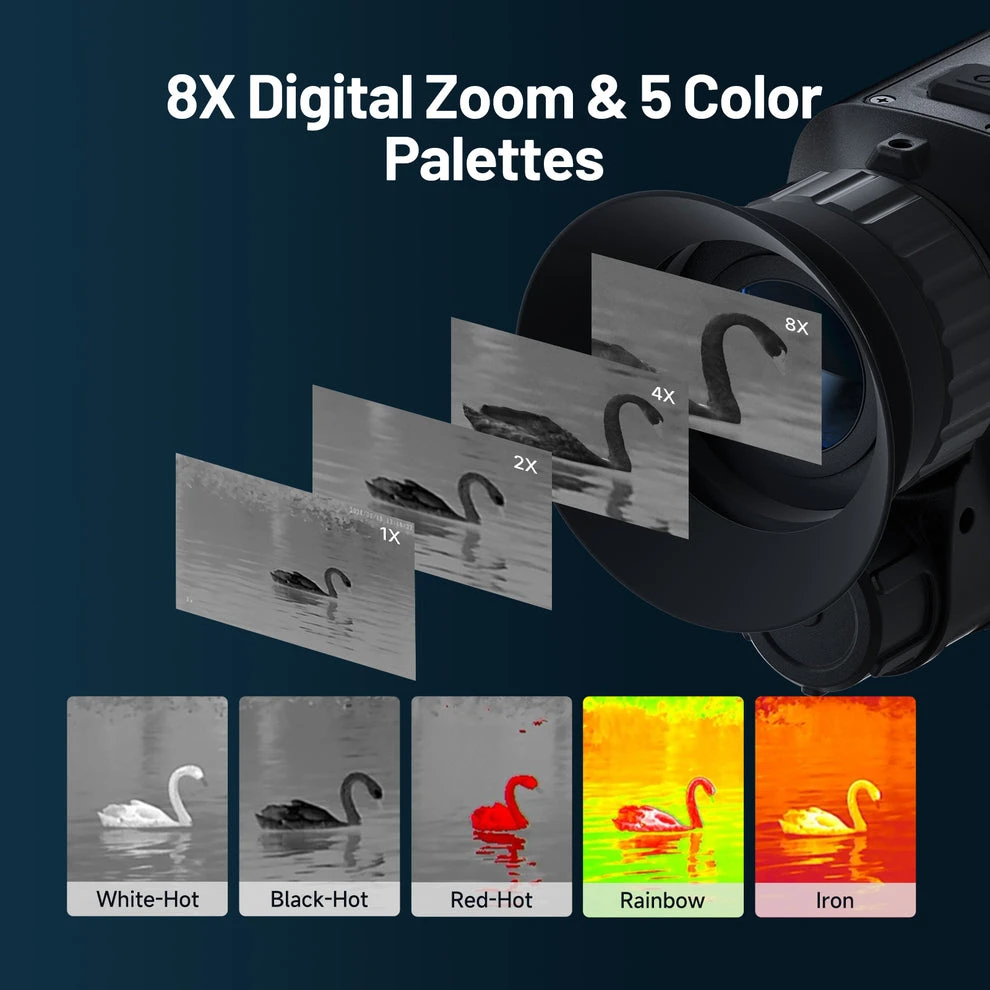

Capture Your Night Up Close: Up to 8x digital zoom with a narrow 10.4° * 7.9° field of view, perfect for detailed long-range observation.

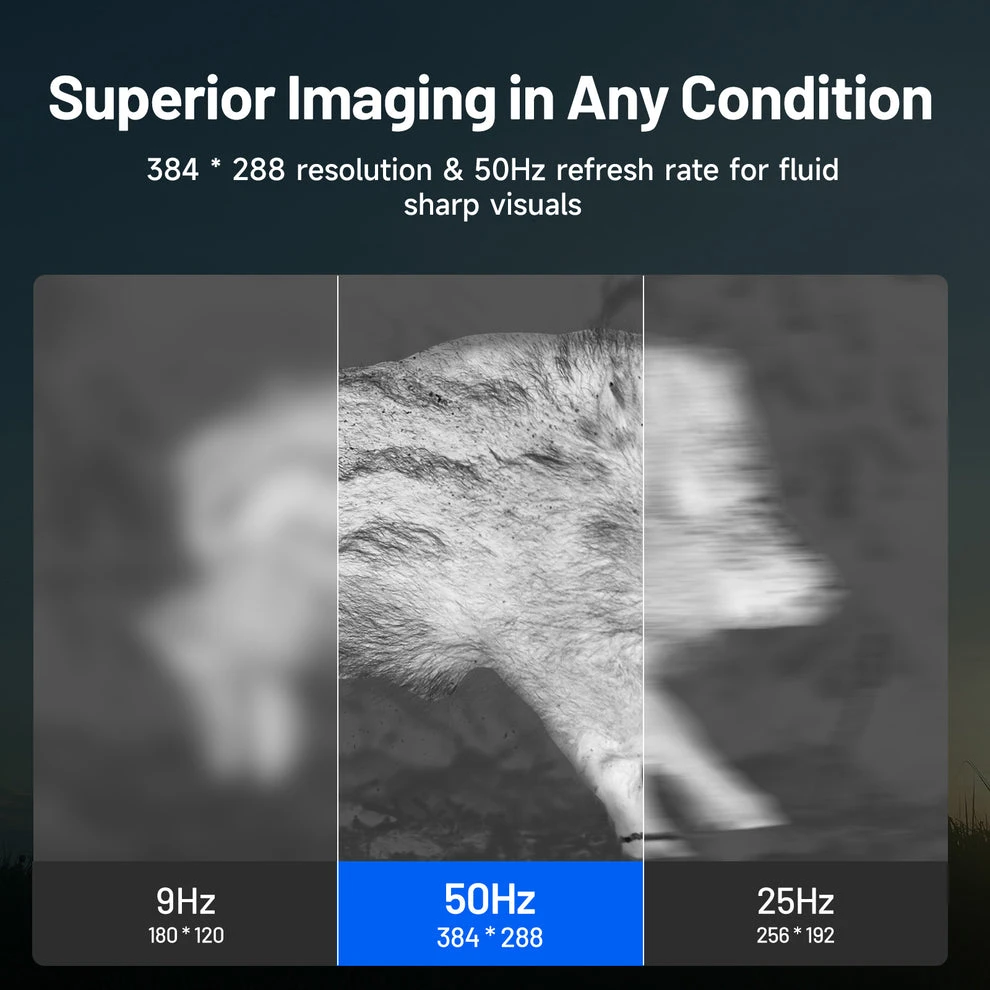

Superior Imaging for Any Challenge: Equipped with 384×288 IR resolution and 12μm sensor, delivering sharp, uninterrupted visuals.
Every Detail, Perfectly Rendered: 1024×768 OLED screen for vivid imagery.
Tailored Vision for Any Condition: Five color palettes (Red-Hot, Iron, Rainbow, White-Hot, Black-Hot) for optimized viewing.

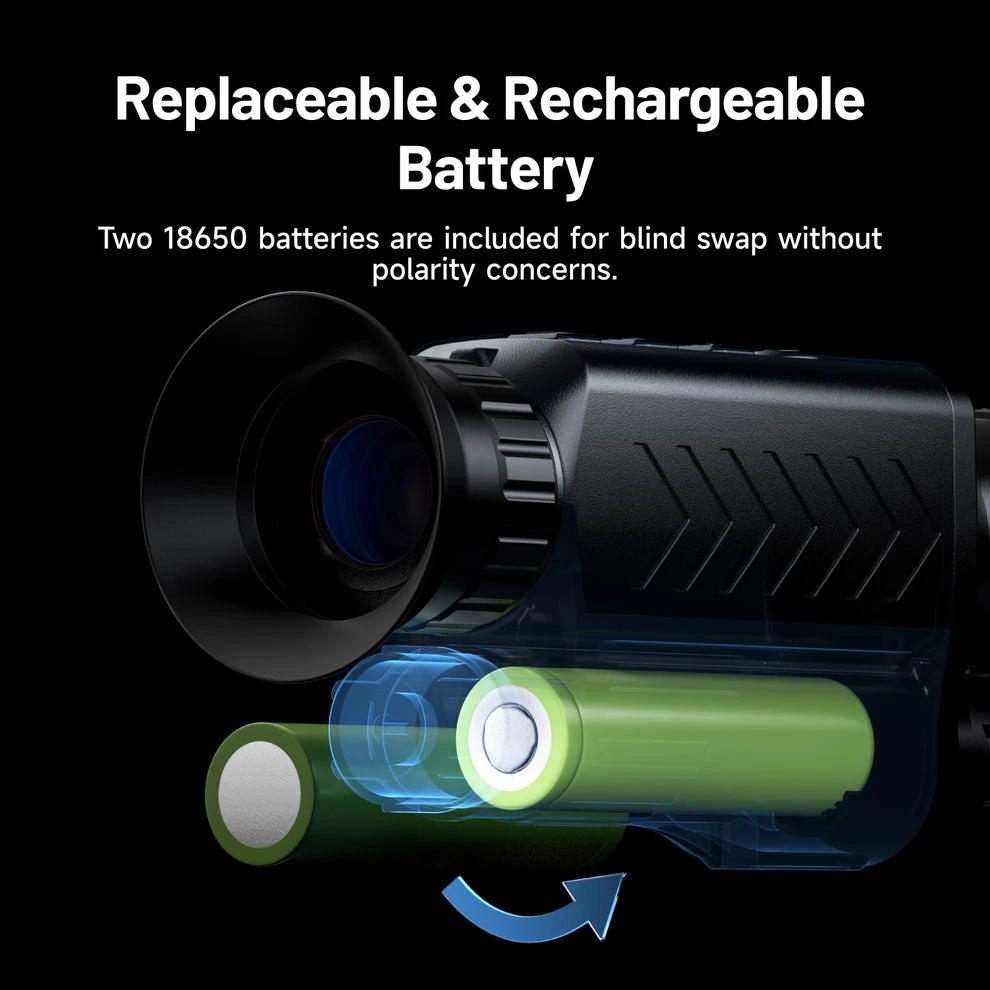

Effortless Power, Whenever You Need It: Two replaceable 18650 batteries for continuous operation without polarity alignment.
Rechargeable Battery, Non-Stop Observation: Up to 6 hours of runtime, rechargeable via USB-C for convenience.

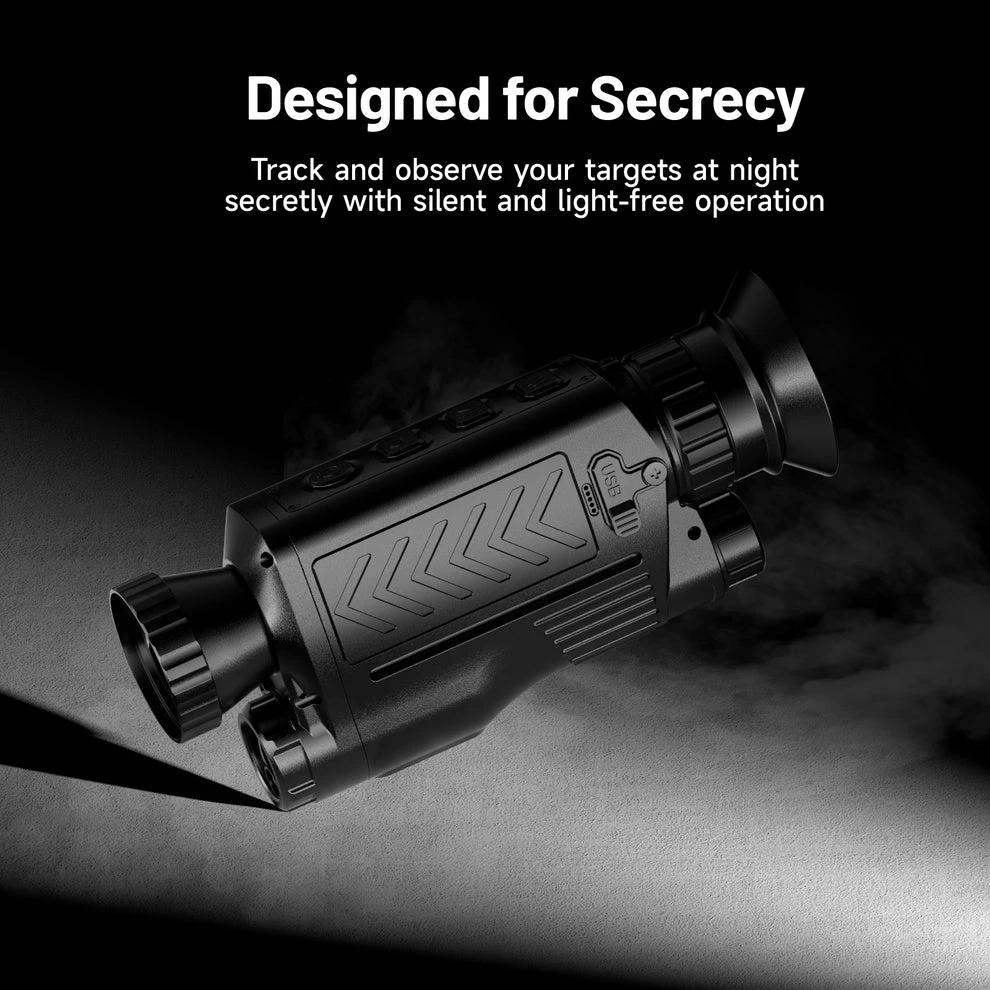

Operate in Silence, Observe in Darkness: Designed for stealth with no indicator lights or noise.

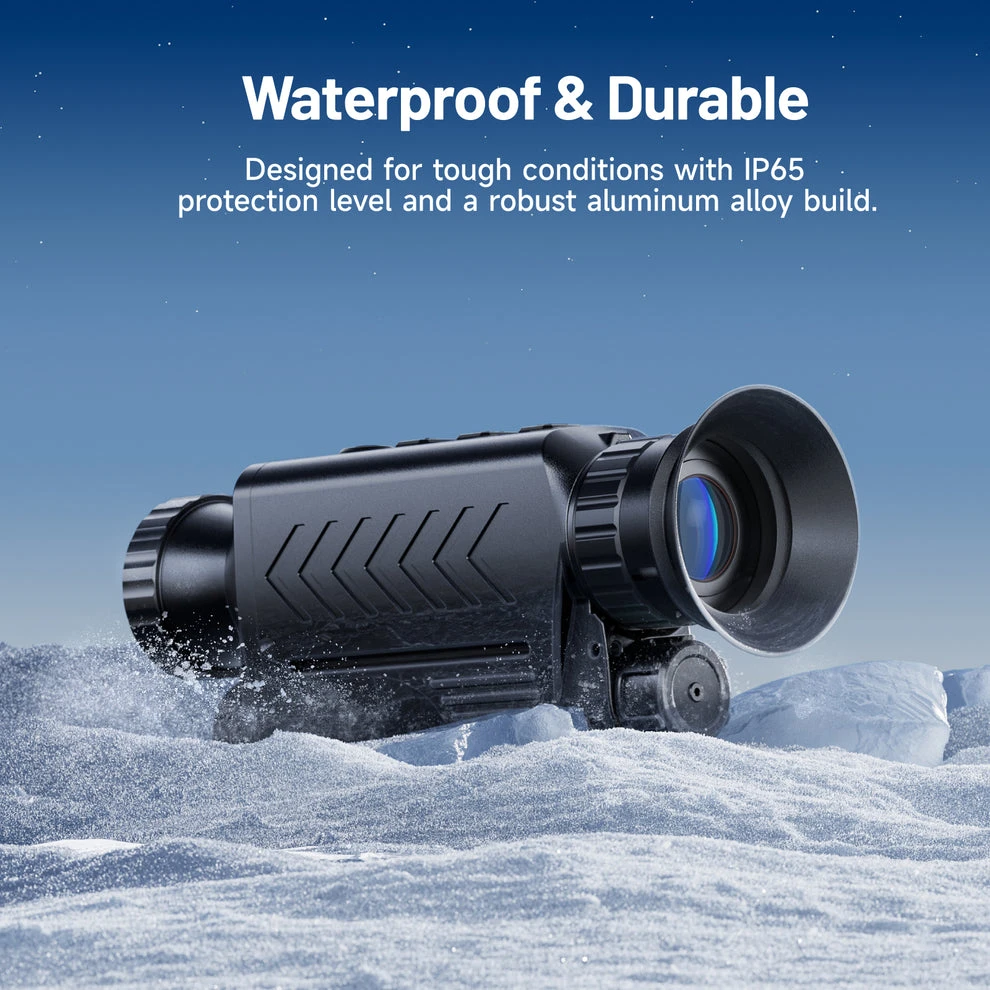

Built for Rugged Reliability: Matte black anodized aluminum alloy body for enhanced durability.

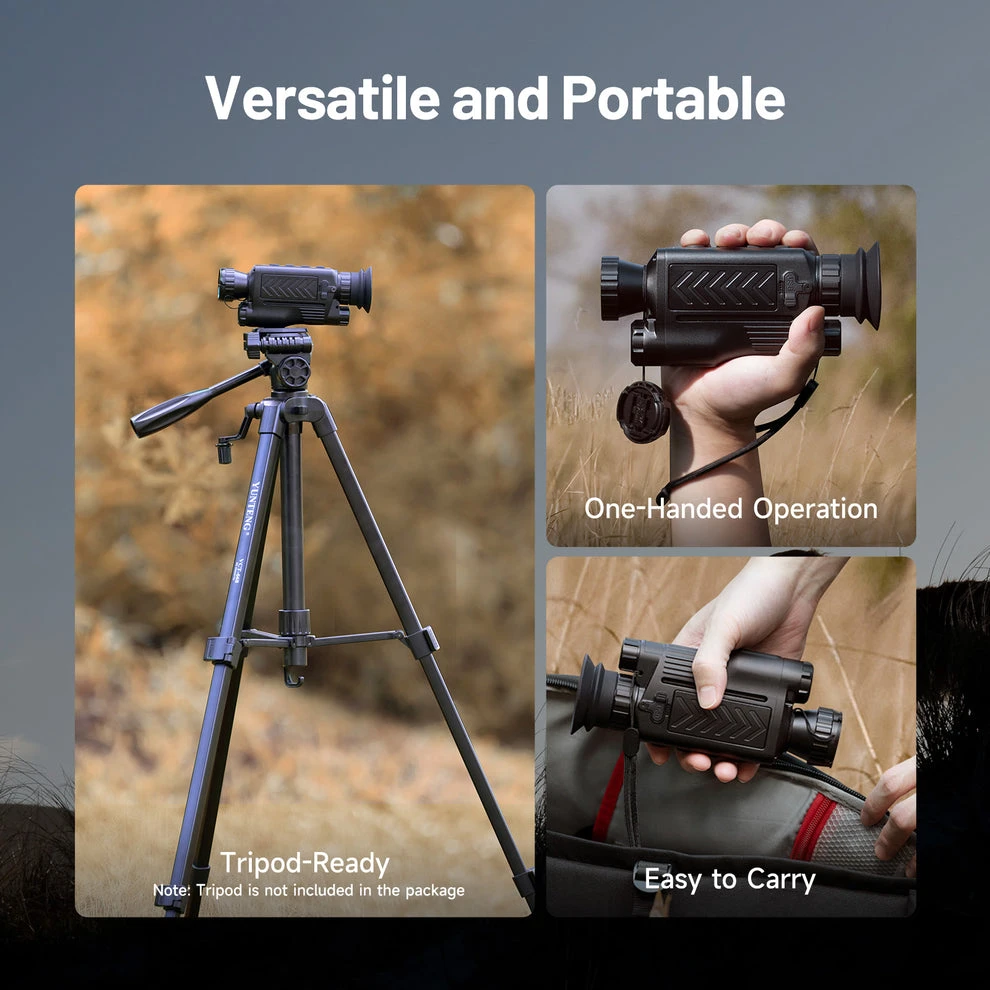

Control How You Observe: One-handed operation or tripod mounting for stability.

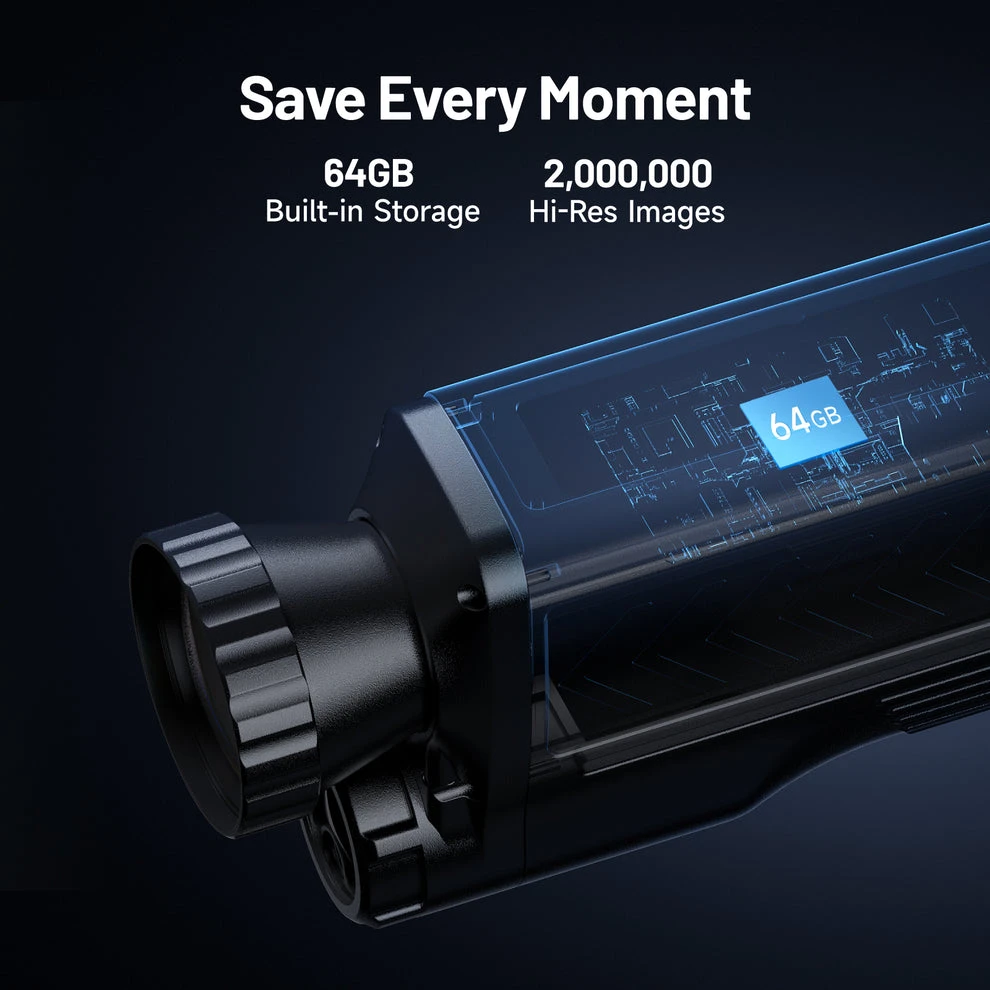

Record, Review, Relive: 64GB internal memory for storing over 2 million images or hours of video.
Navigate with Confidence: Built-in compass and user-friendly UI for directional awareness.
Prepared for Every Encounter: Ideal for wildlife observation, search and rescue, farm monitoring, cabin security, outdoor adventure, and law enforcement.
Category Specification
Display Screen 0.2 inch 1024 x 768 LCOS display
Infrared Resolution 384 x 288
Detection Distance 1280m (4200ft)
Laser Rangefinder 650yd (594m)
Battery Capacity 3300mAh, 2 x 18650 Rechargeable Batteries
Battery Life 6 hours (3 hours per battery)
Charging Port USB-C
Digital Zoom 1x/2x/4x/8x
FOV (Field of View) 10.4° x 7.9°
Image Modes Thermal Imaging, Iron Red, White Hot, Black Hot, Rainbow, Red Hot
Operating Temperature -20℃ to 55℃ (-4℉ to 131℉)
Weight Device: 400g (0.88 lbs), Gross: 880g
Dimensions 210 x 160 x 110mm
Memory 64GB Internal Memory
Language Support 13 Languages including English, Spanish, Chinese, and more
What's in the Box
TS005 Thermal Monocular
Quick User Guide
2 x 18650 Batteries
Product identification
- Brand: Topdon
- Model / MPN: TS005
