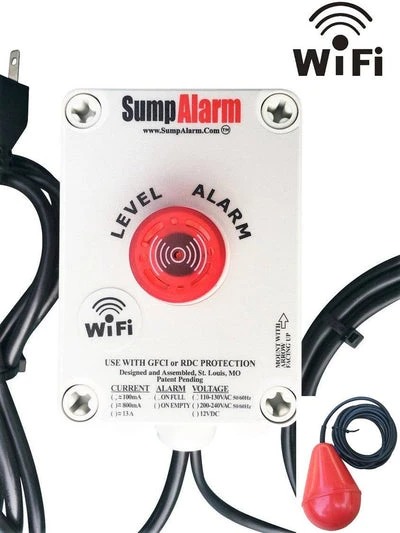

Sump Alarm WiFi 20' SludgeBoss High Water Alarm (SA-120V-1L-20SB-WIFI)
KEY FEATURES AND BENEFITS:
Remote Monitoring via Wi-Fi: Stay informed about your sump or septic system's status from any location through a 2.4GHz wireless connection and receive free email alerts. Optional text and voice notifications are available with a subscription.
Early Warning System: Provides timely visual (large 1' red LED) and loud audible (90dB horn) alerts when water levels exceed a set threshold, helping to prevent potential overflows and costly damage.
Versatile Application: Suitable for a wide range of environments including septic systems, water tanks, lift stations, grinder pumps, and areas with low-density oils and sewage water. Its IP67-rated, weatherproof design ensures reliable performance indoors and outdoors.
Reliable Float Technology: Features a 20 ft. non-tethered SludgeBoss sewage/septic float with a self-orienting design, specifically engineered to operate effectively in liquids containing suspended solids and viscous materials. The polypropylene float switch offers precise detection of water level changes within a 6-inch range.
Easy Installation and Operation: Ready to operate right out of the box with a 6 ft. 3-prong grounded AC power cord. The unit includes rear mounting holes, mounting feet, wall anchors, hardware, and wire ties to simplify the installation process.
Enhanced Reliability: Server-side backup provides alerts even in the event of a power or internet outage, ensuring continuous monitoring.
Wireless Standard: 2.4GHz Wi-Fi
Audible Alarm: 90dB horn
Visual Alarm: 1 inch red LED indicator
Float Cable Length: 20 ft.
Float Type: Sludge Boss Sewage/Septic Float, Non-Tethered, Polypropylene Switch
Power Cord Length: 6 ft.
Operating Temperature: -40°F to 140°F
Environmental Rating: IP67 (gasketed enclosure and weatherproof components)
Mount the Alarm Unit: Choose a suitable indoor or outdoor location near the sump basin or tank. Utilize the provided rear mounting holes, mounting feet, or wall anchors and hardware to securely install the main alarm unit.
Connect the Float Switch: Carefully place the SludgeBoss float switch inside the sump basin or tank, ensuring the 20 ft. cable allows the float to move freely with the changing liquid levels. The non-tethered design allows it to orient itself correctly.
Plug in the Power Cord: Connect the 6 ft. 3-prong grounded AC power cord to a standard 120V electrical outlet.
Connect to Wi-Fi (Optional): Follow the instructions provided in the product manual to connect the alarm unit to your 2.4GHz Wi-Fi network. This will enable remote monitoring and email alerts.
Set Up Notifications (Optional): Configure your email address for free alerts. If desired, set up a subscription for text and/or phone call notifications through the Sump Alarm service.
Test the Alarm: Manually raise the float switch to simulate a high water level. Verify that both the red LED light and the 90dB horn activate. Also, check if an email notification is sent (if Wi-Fi is configured).
BENEFITS OF USING SUMP ALARM WIFI 20' SLUDGEBOSS HIGH WATER ALARM (SA-120V-1L-20SB-WIFI):
Prevents Property Damage: Early detection of high water levels allows for timely intervention, minimizing the risk of flooding and associated damage to your property.
Reduces Potential Repair Costs: By alerting you to problems early, you can address them before they escalate into more significant and expensive repairs.
Offers Reliable Performance in Harsh Environments: The weatherproof design and specialized SludgeBoss float are built to withstand the demanding conditions found in septic and sewage systems.
Simplifies Monitoring: The combination of visual, audible, and remote alerts ensures you are notified of high water levels through multiple channels, increasing the likelihood of prompt action.
May Qualify for Insurance Discounts: Installing smart home devices like the Sump Alarm may make you eligible for discounts on your homeowners insurance.
Large 1-inch Red LED Indicator: Provides a highly visible visual warning, even from a distance.
Loud 90dB Audible Horn: Ensures the alarm is heard in noisy environments.
20 ft. Non-Tethered Sludge Boss Float: Specifically designed for reliable operation in sewage and viscous liquids.
Self-Orienting Float Design: Allows the float to function correctly regardless of its rotational position.
Polypropylene Float Switch: Offers accurate detection of liquid level changes.
IP67 Rated Enclosure: Provides robust protection against dust and water ingress for outdoor use.
Gasketed Weatherproof Components: Ensures reliable operation in various weather conditions.
Free Email Alerts: Keeps you informed of high water levels without any subscription fees.
Optional Text and Voice Notifications: Offers additional alert methods for enhanced awareness (subscription required).
Server-Side Backup: Notifies you of power or internet loss affecting the alarm.
Wide Operating Temperature Range: Functions reliably in temperatures from -40°F to 140°F.
Product identification
- Brand: Sump Alarm
- Model / MPN: SA-120V-1L-20SB-WIFI
