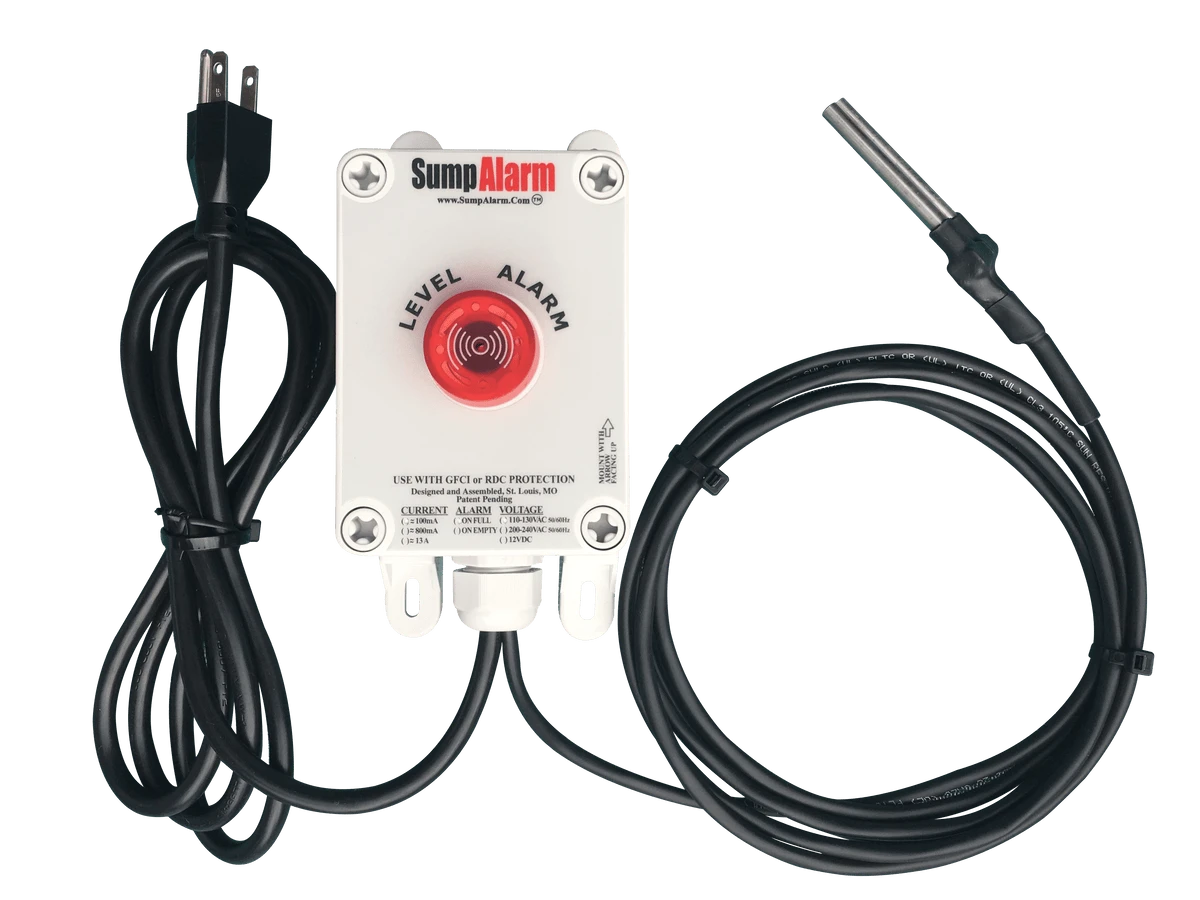

Sump Alarm WiFi 16' Conductivity Sensor Alarm (SA-120V-1L-16C-WIFI)
The Sump Alarm WiFi 16' Conductivity Sensor Alarm (SA-120V-1L-16C-WIFI) is a reliable 120V, Wi-Fi enabled device designed to monitor water levels in a variety of applications, including sump pumps, water tanks, lift stations, and even low-density oils. This system provides timely alerts to potential high or low water conditions, helping to minimize property damage and ensure operational efficiency. Its weatherproof construction allows for both indoor and outdoor installation, offering versatile monitoring wherever you need it most. Stay connected and informed about your water levels from anywhere in the world with free email notifications and the option for text and voice alerts.
KEY FEATURES AND BENEFITS:
Remote Monitoring: Monitor water levels from any location via a Wi-Fi connection (2.4 GHz).
Weatherproof Design: IP67-rated enclosure and weatherproof components ensure reliable operation in both indoor and outdoor environments.
Rapid Detection: The stainless steel conductivity sensor detects water level changes within a 6-inch range for quick issue identification.
Free Email Alerts: Receive unlimited email notifications when an alarm condition is triggered.
Optional Text and Voice Alerts: Subscribe to an optional service for text and/or voice notifications sent to multiple phone numbers.
Server-Side Backup: Alerts you to a loss of power or internet connectivity at the alarm unit, ensuring you are aware of potential monitoring disruptions.
Local Alarms: Features a loud 90dB audible horn and a highly visible 1-inch red LED indicator for immediate alerts in the vicinity.
High/Low Level Indication: Can be configured to alert for either high or low liquid level conditions.
Easy Installation: Designed for simple plug-and-play setup and includes mounting hardware for various installation options.
Wide Operating Temperature: Functions reliably in temperatures ranging from -40°F to 140°F.
Versatile Application: Suitable for chlorinated or clean water environments.
Sensor Length: 16 feet conductivity sensor cord.
Power Supply: 120V AC with 6-foot grounded power cord.
Wi-Fi Connectivity: 2.4 GHz networks.
Enclosure Rating: NEMA 4X / IP67 weatherproof rating.
Operating Temperature: -40°F to 140°F.
Alarm Output: 90dB audible alarm and 1-inch red LED visual indicator.
Alert System: Unlimited free emails; optional text and voice call subscription service.
Application Suitability: Clean water and chlorinated water environments.
Mount the Alarm Unit: Choose a suitable location for the Sump Alarm unit, either indoors or outdoors, utilizing the rear mounting holes or mounting feet. Ensure it is within range of your Wi-Fi network and a 120V power outlet.
Connect the Sensor: Position the 16-foot conductivity sensor in the liquid you want to monitor. Ensure the sensor rods are at the desired high or low alarm level.
Plug in the Power: Connect the 6-foot AC power cord to a standard 120V grounded outlet.
Connect to Wi-Fi: Follow the instructions provided with the unit to connect it to your 2.4 GHz Wi-Fi network. This typically involves accessing a setup portal via a computer or smartphone.
Register and Configure Notifications: Create an account and register your Sump Alarm unit on the manufacturer's website or app. Configure your preferred notification methods (email, optional text/voice) and the water level thresholds for the alarm.
Test the Alarm: Once set up, test the alarm by manually raising or lowering the water level to trigger the sensor and ensure you receive the notifications and the local audible/visual alarms are functioning correctly.
BENEFITS OF USING THE SUMP ALARM WIFI 16' CONDUCTIVITY SENSOR ALARM (SA-120V-1L-16C-WIFI):
Reduces risk of flooding and equipment damage through timely alerts.
Weatherproof construction ensures reliable performance in diverse environments.
Rapid conductivity sensor detection minimizes potential damage or disruptions.
Free email alerts offer a cost-effective notification method.
Optional text and voice alerts add an extra layer of immediate notification.
Server-side backup ensures notification even in power or internet outages.
Easy installation process for quick setup and deployment.
Versatile applications across sump pumps, tanks, lift stations, and more.
Solid-state conductivity sensing technology for reliable water detection in clean or chlorinated water.
Integrated 2.4 GHz Wi-Fi for seamless wireless network connectivity.
Unlimited free email notifications for alarm events.
Optional subscription service for SMS text and voice call alerts to multiple contacts.
Server-side monitoring that reports power and internet loss at the device.
Loud 90dB audible alarm for immediate local notification.
Highly visible 1-inch red LED indicator for visual alarm confirmation.
Configurable for both high and low water level detection to suit various needs.
Durable thermoplastic ABS enclosure rated NEMA 4X / IP67 for weather resistance.
Includes mounting hardware (rear holes, feet, wall anchors, screws, wire ties) for flexible installation.
Long 16-foot sensor cord for extended reach into monitored areas.
6-foot AC power cord with grounded plug for easy power connection.
Wide operating temperature range of -40°F to 140°F for diverse environments.
Product identification
- Brand: Sump Alarm
- Model / MPN: SA-120V-1L-16C-WIFI
