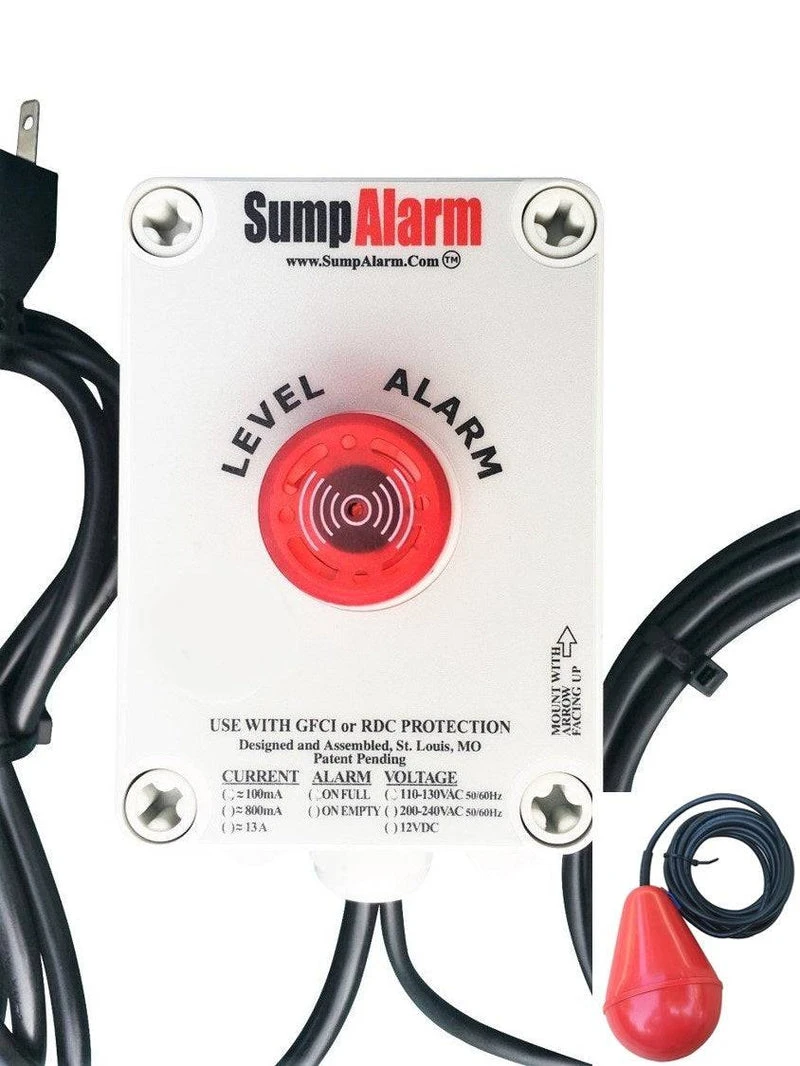

Sump Alarm 120V 16' SludgeBoss High Water Alarm (SA-120V-1L-16SB)
KEY FEATURES AND BENEFITS:
Immediate Alerts: Provides immediate visual (large 1-inch LED indicator) and loud audible (90dB horn) alerts when liquid levels are too high.
Broad Application Range: Suitable for a wide range of applications including septic systems, water tanks, lift stations, low-density oils, and sewage water.
Reliable Activation: Activates reliably when the water level exceeds the desired point, allowing for quick response.
Safe Power Connection: Includes a 6 ft. 3-prong grounded plug for safe and easy power connection.
Durable Float Design: Comes with a robust 16 ft. Sludge Boss sewage/septic float featuring a self-orienting, non-tethered design for reliable performance in demanding environments.
Indoor/Outdoor Use: Designed for both indoor and outdoor use, offering versatile monitoring options.
Plug-and-Play Setup: Ready to operate right out of the box, minimizing setup time and complexity.
Complete Mounting Kit: Includes four rear mounting holes, mounting feet, wall anchors, hardware, and wire ties to simplify the installation process.
Indoor Monitoring of Outdoor Systems: Allows for monitoring of outdoor pumps or septic system levels from inside your property.
Long-Term Reliability: The mercury-free float switch is rated for 100,000 operations.
Low-Level Alarm Option: Can be configured for low-level alarm applications by rewiring the unit.
Wide Temperature Range: Operates effectively in a broad temperature range of -40°F to 140°F.
Voltage: 120V AC
Alarm Volume: 90dB
Indicator Light: 1-inch Red LED
Power Cord Length: 6 ft.
Plug Type: 3-Prong Grounded
Float Cord Length: 16 ft.
Float Type: Non-Tethered Sludge Boss
Float Switch Rating: 100,000 operations
Operating Temperature: -40°F to 140°F
Placement of Float: Position the Sludge Boss float switch within the basin or sump at the desired high water level detection point. Use the provided zip ties to secure the float cable to a discharge pipe or other suitable fixture, ensuring the float can move freely.
Mounting the Head Unit: Choose a suitable mounting location for the alarm head unit, either indoors or outdoors, where the visual and audible alarms can be easily noticed. Use the provided wall anchors and hardware if mounting to a wall, or utilize the mounting feet for a stable surface placement. The unit has rear mounting holes for alternative mounting methods.
Connecting the Power: Plug the 6 ft. 3-prong grounded power cord into a standard 120V AC electrical outlet.
Testing the Alarm: Carefully raise the float switch to simulate a high water level. The red LED indicator light should begin flashing, and the 90dB alarm horn should sound. Lower the float to confirm the alarm ceases.
Optional Low-Level Alarm Configuration: For low-level alarm functionality, refer to the product manual for specific rewiring instructions. This involves altering the internal wiring connections. Ensure the power is disconnected before attempting any rewiring.
BENEFITS OF USING THE SUMP ALARM 120V 16' SLUDGEBOSS HIGH WATER ALARM (SA-120V-1L-16SB):
Early Problem Detection: Provides timely alerts of rising water levels, allowing you to address potential issues like pump failure before significant flooding or damage occurs.
Versatile Application: Suitable for a wide array of liquid level monitoring needs, reducing the need for multiple specialized alarms.
Reliable Performance: The robust SludgeBoss float switch is designed for demanding environments, ensuring consistent and accurate detection.
Easy Installation: The included hardware and straightforward setup mean you can quickly and easily install the alarm without specialized tools or expertise.
Durable and Long-Lasting: Built to withstand both indoor and outdoor conditions, with a float switch rated for extended operation.
Safety: The grounded plug ensures safe electrical operation.
Bright Visual Indication: A large, easily seen 1-inch red LED light signals an alarm condition.
Loud Audible Warning: A 90-decibel horn effectively alerts occupants to a high water level.
Non-Tethered Float Design: The SludgeBoss float's design prevents tangling and ensures reliable movement in various liquids.
Self-Orienting Float: The float automatically positions itself correctly for consistent level detection.
Mercury-Free Construction: Environmentally friendly and safe for use in potable water applications.
Included Mounting Hardware: Comes with all necessary components for flexible and easy installation on various surfaces.
Configurable for Low Level: Offers the option to be wired for low-level detection, expanding its utility.
Durable for Harsh Environments: Built to withstand the conditions found in sewage and septic systems.
Long Float Cable: The 16-foot cable provides ample length for various installation depths.
Product identification
- Brand: Sump Alarm
- Model / MPN: SA-120V-1L-16SB
