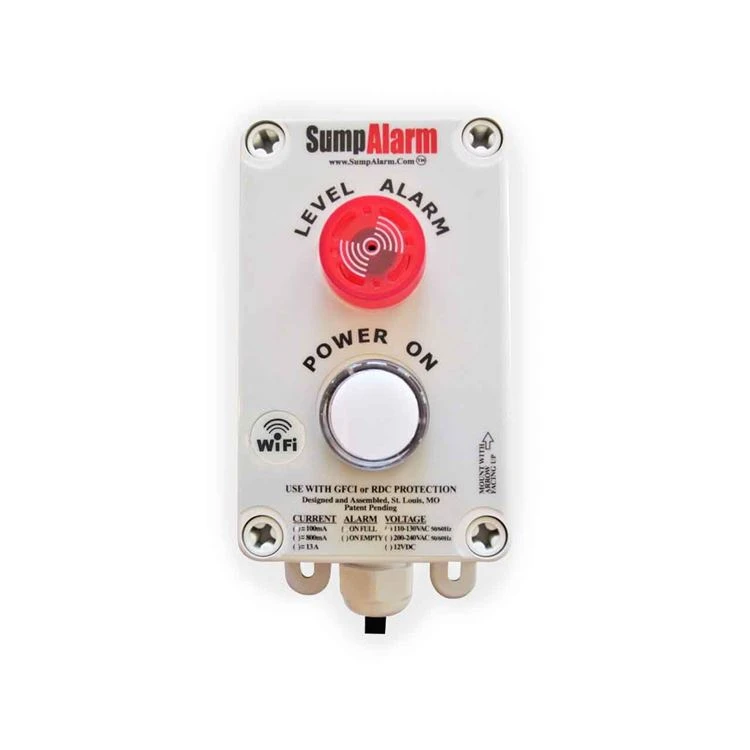

Sump Alarm 120V 100' Water Alarm w/Light (SA-120V-2L-100F-WIFI)
The Sump Alarm 120V 100' Water Alarm w/Light (SA-120V-2L-100F-WIFI) is an industry-leading, Wi-Fi-enabled high/low water alarm designed for both indoor and outdoor applications. It provides immediate visual and audible alerts when liquid levels become critically high (90dB horn), safeguarding your property from potential water damage. This versatile alarm is suitable for use in various settings, including sump pumps, water tanks, lift stations, low-density oil environments, and sewage water systems.
KEY FEATURES AND BENEFITS:
High/Low Water Level Detection: Provides timely alerts for both excessively high and critically low liquid levels in various applications.
Wi-Fi Enabled with Remote Notifications: Connects to your 2.4GHz Wi-Fi network, allowing for free email alerts and optional text message and phone call notifications to your mobile devices, enabling worldwide monitoring.
Audible and Visual Alarms: Features a loud 90dB horn for immediate audible warnings and a large 1-inch red LED light for clear visual indication of an alarm state.
Power Status Indication: Includes a 1-inch white LED pilot light that shows the unit's power status and can indirectly indicate pump power if on the same circuit.
Long Reach Float Switch: Comes equipped with a 100-foot tethered, mercury-free float switch, rated for 100,000 operations and safe for potable water.
Versatile Application: Suitable for use in sump pumps, water tanks, lift stations, low-density oils, and sewage water.
Easy and Flexible Installation: Ready to operate out of the box and includes rear mounting holes, mounting feet, wall anchors, hardware, and zip ties for simplified setup.
Wide Operating Temperature Range: Designed to function reliably in temperatures ranging from -40°F to 140°F.
Potential Insurance Savings: May lead to discounts on homeowners insurance as a smart home safety device.
Configurable for High or Low Level Alarm: While pre-wired for high-level detection, the unit can be easily reconfigured for low-level alarm applications.
Model: SA-120V-2L-100F-WIFI
Alarm Type: High/Low Water Level
Audible Alarm: 90 dB horn
Visual Alarm: 1-inch Red LED Indicator
Power Indicator: 1-inch White LED Pilot Light
Float Switch: Mercury-free, Tethered Water Boss Float
Float Cord Length: 100 feet
Float Switch Rating: 100,000 Operations
Wireless Standard: 2.4 GHz Wi-Fi
Notifications: Free Email Alerts (Standard), Optional Text and Phone Call Alerts (Subscription Required)
Power Cord: 6 ft, 3-Prong Grounded Plug
Operating Temperature: -40°F to 140°F
Mounting: 2 Rear Mounting Holes, Mounting Feet Included
Installation Hardware: Wall Anchors, Zip Ties Included
Suitable For: Sump Pumps, Water Tanks, Lift Stations, Low Density Oils, Sewage Water, Potable Water
Placement of the Float Switch: Position the tethered float switch at the desired water level for alarm activation. For high-level alarm, place it at the maximum acceptable water level. For low-level alarm (after rewiring), place it at the minimum acceptable level.
Mounting the Head Unit: Choose a suitable location for the main alarm unit, utilizing either the rear mounting holes or the included mounting feet. Use the provided wall anchors and hardware if mounting to a wall.
Connecting the Float Switch: Ensure the 100-foot cord of the float switch is securely connected to the alarm unit. Use the provided zip ties to secure the float switch cable as needed, preventing entanglement.
Powering the Unit: Plug the 6-foot, 3-prong grounded power cord into a standard 120V AC power outlet. Observe the white LED pilot light to confirm the unit has power.
Wi-Fi Setup and Notifications: Follow the instructions provided in the product manual to connect the alarm unit to your 2.4 GHz Wi-Fi network. Configure your desired notification settings (email, optional text/voice) through the manufacturer's platform or app.
Testing the Alarm: Carefully test the alarm by manually raising or lowering the float switch to simulate high or low water level conditions and ensure the audible and visual alarms activate, and notifications are sent as configured.
BENEFITS OF USING SUMP ALARM 120V 1L 100' WATER ALARM W/LIGHT (SA-120V-2L-100F-WIFI):
Proactive Flood Prevention: Receive early warnings of rising water levels, allowing you to take timely action to prevent potential flooding and water damage to your property.
Remote Monitoring Convenience: Stay informed about the status of your sump pump or water tank from anywhere in the world via your smartphone or computer.
Enhanced System Reliability: By detecting potential issues early, you can address them before they lead to costly repairs or system failures.
Easy Installation and Setup: The included hardware and straightforward instructions make the installation process quick and hassle-free.
Versatile Application Across Multiple Systems: Suitable for a wide range of liquid level monitoring needs, reducing the need for multiple specialized devices.
Clear Indication of Power Status: The dedicated power indicator light provides immediate visual confirmation that the unit is operational.
Durable and Reliable Performance: Built with quality components and designed for a wide operating temperature range, ensuring long-lasting and dependable operation.
Potential Cost Savings: May qualify for homeowners insurance discounts, offering a financial benefit in addition to property protection.
Safe for Potable Water Use: The mercury-free float switch ensures safe operation even in systems involving drinking water.
Integrated 2.4 GHz Wi-Fi connectivity for seamless network integration.
Loud 90 decibel audible alarm to ensure the warning is heard.
Highly visible 1-inch red LED alarm indicator for immediate visual alerts.
Dedicated 1-inch white LED power indicator for operational status confirmation.
Robust 100-foot tethered float switch for extended reach and flexible placement.
Mercury-free float switch construction, making it environmentally safe and suitable for potable water.
Versatile wiring capability to function as either a high-level or a low-level alarm.
Comprehensive installation kit including mounting hardware and cable management accessories.
Wide operating temperature range, ensuring functionality in diverse environments.
Potential eligibility for homeowners insurance discounts as a smart safety device.
Product identification
- Brand: Sump Alarm
- Model / MPN: SA-120V-2L-100F-WIFI
