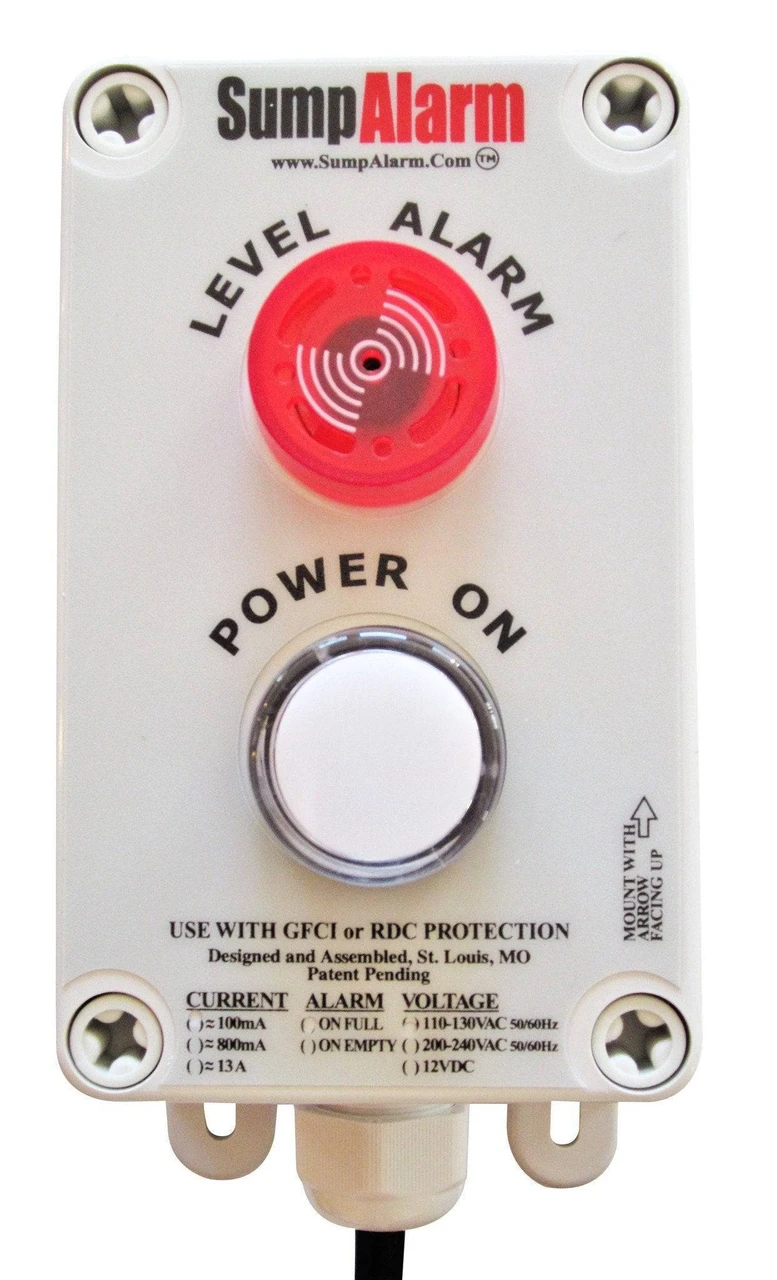

Sump Alarm 120V 100' SludgeBoss w/ Power On Light (SA-120V-2L-100SB)
The Sump Alarm 120V 100' SludgeBoss w/ Power On Light (SA-120V-2L-100SB) is a dependable system designed to provide early warning of high liquid levels in a variety of applications. This indoor and outdoor alarm utilizes both visual and audible signals to alert users to potential overflows or pump failures in sump pumps, water tanks, lift stations, systems containing low-density oils, and even sewage water. Equipped with a specialized SludgeBoss float switch and a power-on indicator, this unit offers a practical solution for monitoring critical liquid levels and mitigating potential damage. Its straightforward installation process and included mounting hardware make it a user-friendly choice for both residential and commercial settings.
KEY FEATURES AND BENEFITS:
High-Level Detection: Immediately signals when liquid levels rise above a designated point, allowing for timely intervention.
Visual and Audible Alerts: A bright 1-inch red LED indicator light flashes and a loud 90dB horn sounds simultaneously, ensuring the alarm is noticed even from a distance or in noisy environments. The directional horn should be positioned appropriately for optimal audibility.
Power Status Indication: A separate 1-inch white LED pilot light clearly shows when the alarm unit is receiving power. When connected to the same circuit as the pump, this light can also provide a visual cue if the pump has power.
SludgeBoss Float Switch: The included 100-foot tethered Water Boss float (SludgeBoss) is specifically designed for reliable operation in challenging liquids, including those with sewage or significant floating debris. Its self-orienting design eliminates the need for a cable weight.
Simple Installation: The plug-n-play design with a 6-foot 3-prong grounded plug allows for quick and easy setup. The unit also includes rear mounting holes, mounting feet, wall anchors, hardware, and wire ties to simplify the mounting process.
Indoor and Outdoor Use: The robust construction is suitable for both indoor and outdoor installations, providing versatile monitoring capabilities.
Wide Operating Temperature Range: Functionality is maintained in temperatures ranging from -40°F to 140°F, ensuring reliable operation in various climates.
Float Cord Length: 100 feet
Power Cord Length: 6 feet
Alarm Volume: 90 dB
Operating Temperature: -40°F to 140°F
Secure the Float: Position the SludgeBoss float switch at the desired high-level alarm point within the sump basin, tank, or other application. Use the provided wire ties to secure the float cable, ensuring the float can move freely within the desired range.
Mount the Head Unit: Choose a suitable mounting location for the alarm head unit, either indoors or outdoors. Utilize the provided mounting feet for surface placement or the wall anchors and hardware for wall mounting using the rear mounting holes. Ensure the audible horn is directed towards the area where the alarm needs to be heard.
Plug in the Unit: Connect the 6-foot 3-prong grounded plug of the alarm unit into a standard 120V electrical outlet. The white LED pilot light should illuminate, indicating that the unit has power.
Test the Alarm (Optional but Recommended): Manually raise the SludgeBoss float to simulate a high water level. The red LED indicator light should begin to flash, and the 90dB horn should sound. Lower the float to confirm the alarm stops.
BENEFITS OF USING THE SUMP ALARM 120V 100' SLUDGEBOSS W/ POWER ON LIGHT (SA-120V-2L-100SB):
Early Problem Detection: Provides immediate notification of rising water levels, allowing for prompt action to prevent potential flooding, equipment damage, or environmental contamination.
Pump Failure Indication: When plugged into the same circuit as the pump, the lack of a power-on light can visually suggest a power issue with the pump itself.
Reliable Operation in Demanding Environments: The SludgeBoss float is specifically designed to function effectively in liquids containing solids and debris, ensuring consistent and accurate level detection.
Easy to Install and Use: The straightforward setup process and clear visual and audible alerts make the system user-friendly for a wide range of applications.
Bright Red LED Indicator: Highly visible flashing light signals an alarm condition.
Loud 90 Decibel Horn: Distinct audible alert for immediate attention.
Mercury-Free Float Switch: Environmentally conscious and safe operation.
Self-Orienting Float Design: Ensures reliable performance without the need for additional weights.
Durable Polycarbonate Enclosure: Provides protection for both indoor and outdoor use.
Included Mounting Hardware: Offers flexibility and ease in securing the unit.
Long 100-Foot Float Cable: Allows for monitoring in deeper basins or tanks.
Power On LED: Instant visual confirmation of the unit's operational status.
Product identification
- Brand: Sump Alarm
- Model / MPN: SA-120V-2L-100SB
