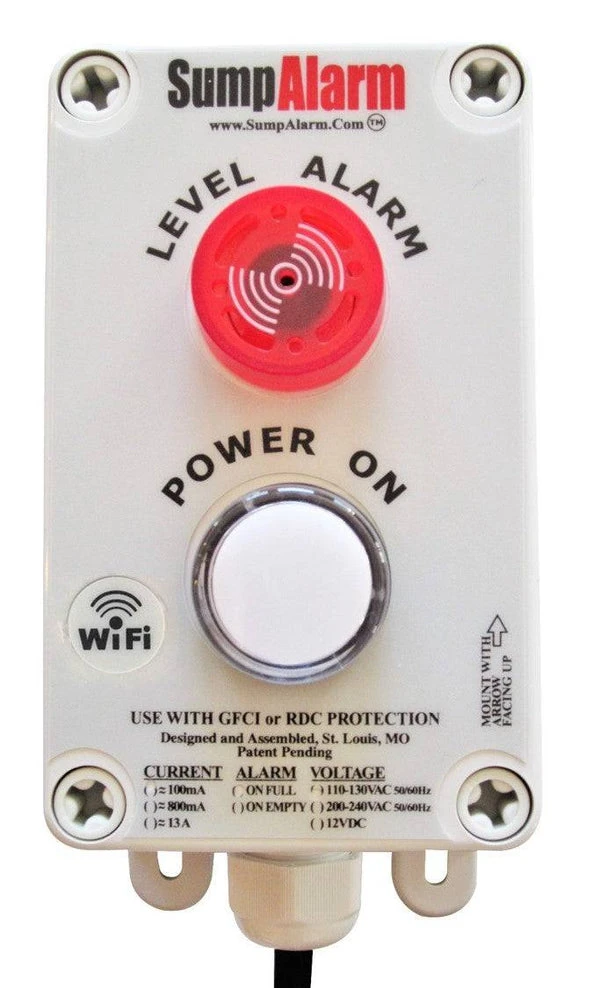

Sump Alarm 120V 10' Wi-Fi High Water Alarm (SA-120V-2L-16SB-WIFI)
The Sump Alarm 120V 10' Wi-Fi High Water Alarm (SA-120V-2L-16SB-WIFI) offers industry-leading monitoring for critical liquid levels in a variety of applications, including septic systems, water tanks, lift stations, low-density oil environments, and sewage water. This versatile indoor and outdoor alarm system provides both audible and visual alerts when liquid levels exceed a desired threshold, helping to prevent costly damage and potential hazards. Equipped with Wi-Fi connectivity, the Sump Alarm keeps you informed remotely, allowing you to monitor your system from anywhere in the world.
KEY FEATURES AND BENEFITS:
Early Warning System: Provides early warning of high water levels with a loud 90dB audible horn and a highly visible 1-inch red LED indicator light.
Remote Monitoring: Offers remote monitoring capabilities via a 2.4GHz Wi-Fi connection, enabling you to check water levels from any location.
Free Email Notifications: Delivers free email notifications when a high water level is detected, with optional subscriptions available for text message and phone call alerts.
Reliable Float Switch: Features a 'Sludge Boss' mercury-free float switch with a 16-foot cord, specifically designed for reliable operation in sewage and septic systems containing viscous liquids and suspended solids.
Power Status Indicator: Includes a 1-inch white LED pilot light that indicates the unit has power, and can visually confirm power to the pump when plugged into the same circuit.
Simple Installation: Designed for simple plug-and-play installation and comes ready to operate out of the box.
Weatherproof Enclosure: Features a weatherproof thermoplastic ABS enclosure rated to NEMA 4X / IP67 for both indoor and outdoor use.
Backup Alerts: Offers server-side backup to alert you in case of power loss or internet connectivity issues.
Versatile Applications: Compatible with potable water, septic systems, and low-density oils, offering broad application possibilities.
Insurance Benefits: May qualify for homeowners insurance discounts as a smart home safety device.
Model Number: SA-120V-2L-16SB-WIFI
Power Input: 120V AC with a 6-foot, 3-prong grounded plug.
Alarm Output: 90dB audible horn.
Visual Indicators: 1-inch red LED (high water alarm), 1-inch white LED (power on).
Float Switch: 'Sludge Boss' mercury-free float switch with a 16-foot cord, self-orienting, non-tethered design.
Wireless Connectivity: 2.4GHz Wi-Fi.
Notification Options: Free email alerts (up to 5 addresses), optional text and voice alerts (up to 5 locations/numbers with subscription).
Operating Temperature: -40°F to 140°F (-40°C to 60°C).
Humidity Range: Up to 99% non-condensing.
Enclosure Material: Thermoplastic ABS, UL94/HB rated.
Enclosure Rating: NEMA 4X / IP67 (weatherproof).
Mounting: Four rear mounting holes, includes mounting feet, wall anchors, hardware, and wire ties.
Mount the Alarm Unit: Choose a suitable indoor or outdoor location near the sump, septic tank, or water tank. Use the provided mounting feet or the rear mounting holes with the included wall anchors and hardware to secure the unit to a wall or stable surface.
Position the Float Switch: Carefully place the 'Sludge Boss' float switch inside the basin or tank. Ensure the float switch can move freely without obstruction throughout the expected range of water levels. Use the provided wire ties to secure the float switch cable to a discharge pipe or other fixed object at the desired activation point for the high water alarm.
Plug in the Power: Connect the 6-foot, 3-prong grounded plug of the Sump Alarm into a standard 120V AC power outlet. The white LED pilot light will illuminate, indicating that the unit has power.
Connect to Wi-Fi: Follow the instructions provided in the product manual or on the manufacturer's website (SumpAlarm.com) to connect the device to your 2.4GHz Wi-Fi network.
Set Up Notifications: Once connected to Wi-Fi, register your device and configure your desired notification settings through the manufacturer's platform. Add up to five email addresses for free alerts or explore the subscription options for text and phone call notifications.
Test the Alarm: Manually raise the float switch to simulate a high water level. The red LED should flash, the 90dB horn should sound, and you should receive an email notification (and text/call if those services are enabled). Lower the float to confirm the alarm stops.
Regular Monitoring: Periodically check the alarm unit, float switch, and notification settings to ensure they are functioning correctly.
BENEFITS OF USING THE SUMP ALARM 120V 10' WI-FI HIGH WATER ALARM (SA-120V-2L-16SB-WIFI):
Prevents Potential Damage: Early detection of high water levels allows for timely intervention, minimizing the risk of flooding, sewage backups, and costly repairs.
Reliable Operation in Harsh Environments: The 'Sludge Boss' float switch is specifically designed to function effectively in challenging conditions with viscous liquids and suspended solids.
Clear and Immediate Alerts: The combination of a loud audible alarm and a bright visual indicator ensures that high water events are promptly noticed.
Easy Installation and Setup: The plug-and-play design and included hardware simplify the installation process, getting your system protected quickly.
Power Status Indication: The integrated power LED provides a quick visual confirmation that the unit is receiving power and can indirectly indicate pump power if on the same circuit.
Durable and Weatherproof: The robust construction and NEMA 4X / IP67 rating ensure reliable performance in both indoor and outdoor environments.
Audible Warning System: Integrated 90dB directional audible warning system.
Visual High Water Indicator: Highly visible 1-inch flashing red LED high water indicator.
Power Status LED: Dedicated 1-inch white LED for immediate power status verification.
Specialized Float Mechanism: Specialized non-tethered 'Sludge Boss' float mechanism engineered for sewage and septic applications.
Wi-Fi Connectivity: Seamless connectivity to 2.4GHz wireless networks for remote data transmission.
Email-Based Alerts: Free email-based alert system for immediate notification of critical events.
Optional SMS/Voice Alerts: Optional subscription services for SMS text message and voice call alerts.
Robust Enclosure: Robust thermoplastic ABS enclosure designed to withstand demanding conditions.
Wide Temperature Range: Wide operational temperature range suitable for diverse climates.
Installation Accessories: Included mounting accessories for flexible and straightforward installation.
Product identification
- Brand: Sump Alarm
- Model / MPN: SA-120V-2L-16SB-WIFI
