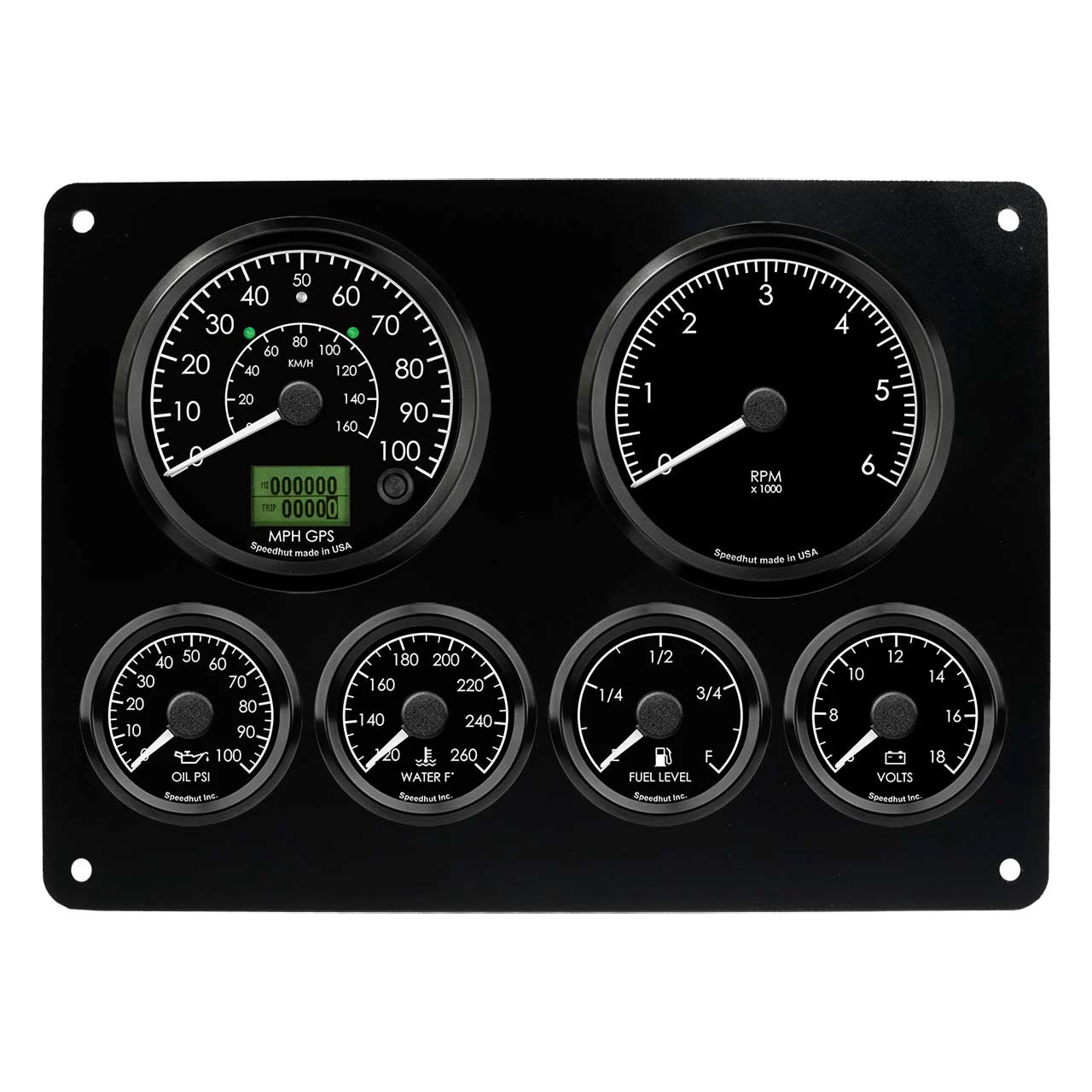

Speedhut Humvee 6-18 Volt 6-Gauge Kit (HV-6KIT-002)
Enhance your military Humvee (HMMWV) with the Speedhut Humvee 6-18 Volt 6-Gauge Kit (HV-6KIT-002), a comprehensive instrumentation solution tailored for the unique demands of HMMWVs. This kit offers a modern, easy-to-read format, ensuring accurate monitoring of your vehicle's critical systems. Designed for direct fitment, it simplifies the upgrade process by utilizing existing OEM sensors, eliminating the need for additional sensor installations. The inclusion of a GPS speedometer provides precise speed readings without relying on traditional cable or wheel speed sensors. The diesel tachometer is calibrated specifically for diesel engines, offering accurate RPM information. Monitoring vital engine parameters is facilitated by the oil pressure and water temperature gauges, while the 6-18 volt gauge allows for constant monitoring of your Humvee's electrical system. The fuel level gauge provides accurate readings of your fuel reserves. The kit comes complete with a dedicated Humvee 6 Gauge Dash Panel, ensuring a clean and integrated installation. LED-lit dials offer excellent visibility in all lighting conditions, with a black background and white numbers that illuminate green at night, along with a white pointer that glows red. The stealth black bezels and flat windows contribute to a rugged, military-inspired aesthetic.
KEY FEATURES AND BENEFITS:
Vehicle-Specific Design: Engineered specifically for military Humvees (HMMWVs), ensuring seamless compatibility with existing infrastructure.
Utilization of OEM Sensors: Leverages original equipment manufacturer sensors, streamlining installation by eliminating the need for additional sensors.
GPS Speedometer: Provides precise speed readings without reliance on traditional cable or wheel speed sensors.
Diesel Tachometer: Calibrated for diesel engines, delivering accurate RPM information crucial for performance and maintenance.
Comprehensive Monitoring: Includes oil pressure and water temperature gauges for vital engine parameter monitoring.
Electrical System Oversight: 6-18 volt gauge allows for constant monitoring of your Humvee's electrical system.
Fuel Level Accuracy: Fuel level gauge offers precise readings of your fuel reserves.
Integrated Dash Panel: Comes with a dedicated Humvee 6 Gauge Dash Panel for a clean and cohesive installation.
Enhanced Visibility: LED-lit dials with a black background and white numbers that illuminate green at night, and a white pointer that glows red, ensure excellent readability in all lighting conditions.
Rugged Aesthetic: Stealth black bezels and flat windows contribute to a durable, military-inspired look.
Included Gauges:
GPS Speedometer: Fits into a 3.375" (85mm) dash hole.
Diesel Tachometer: Fits into a 3.375" (85mm) dash hole.
Water Temperature Gauge: Fits into a 2.062" (52mm) dash hole.
Volt Gauge: Fits into a 2.062" (52mm) dash hole (6-18 Volt Range).
Oil Pressure Gauge: Fits into a 2.062" (52mm) dash hole.
Fuel Level Gauge: Fits into a 2.062" (52mm) dash hole.
Power Compatibility: Designed for 12-volt systems.
Backlighting: LED-lit dial (Green illumination for numbers at night).
Pointer Color: White (glows red).
Bezel Color: Stealth Black.
Window Type: Flat.
Included: Humvee 6 Gauge Dash Panel.
Preparation: Ensure your military Humvee (HMMWV) is turned off and the battery is disconnected for safety.
Remove Existing Gauges: Carefully remove the existing gauges and the original dash panel from your Humvee. Note the wiring connections for the OEM sensors.
Install New Dash Panel: Mount the included Humvee 6 Gauge Dash Panel into the designated location in your vehicle's dashboard.
Mount New Gauges: Install each of the Speedhut gauges into the corresponding openings in the new dash panel.
Connect Wiring: Connect the wiring harnesses of the new gauges to the existing OEM sensor wiring for oil pressure, water temperature, and fuel level. Connect the volt gauge to a suitable power and ground source within the 6-18 volt range. Connect the GPS speedometer to a power source and ensure the GPS antenna has a clear view of the sky. Connect the tachometer to the appropriate signal wire for your diesel engine.
Final Checks: Double-check all wiring connections to ensure they are secure and correct.
Reconnect Battery: Reconnect the vehicle's battery.
Testing: Turn on the ignition and verify that all gauges are functioning correctly and displaying accurate readings. Calibrate the fuel level gauge if necessary, following the manufacturer's instructions.
BENEFITS OF USING THE SPEEDHUT HUMVEE 6-18 VOLT 6-GAUGE KIT (HV-6KIT-002):
Precision Monitoring: Provides accurate and real-time information about your Humvee's critical systems, aiding in optimal vehicle operation and maintenance.
Seamless Integration: Specifically designed for Humvee vehicles, ensuring compatibility and accurate readings unlike universal gauge kits.
Enhanced Visibility: The clear LED illumination ensures excellent visibility of all gauges, day or night, contributing to safer driving.
Streamlined Installation: Utilizes existing OEM sensors, simplifying the installation process and reducing the need for additional components.
Rugged Design: The stealth black bezels and flat windows complement the military aesthetic of the Humvee, offering a cohesive and durable appearance.
Direct Alternator Signal Input: Designed to read RPM data directly from the "A/C," "W," or "R" terminal of the Humvee's alternator.
LED Illumination: Employs LED technology to light up the dial for enhanced readability in all lighting conditions.
Contrasting Color Scheme: Features a black dial with white numerals for clear daytime viewing, transitioning to a green glow at night.
Red Illuminated Pointer: The white pointer becomes red when the gauge is illuminated, drawing attention to the current readings.
Stealth Bezel Design: The black bezel offers a subtle and modern aesthetic that complements the Humvee's interior.
Integrated Dash Panel: Includes a purpose-built dash panel for a straightforward installation in military HMMWVs.
Product identification
- Brand: Speedhut
- Model / MPN: HV-6KIT-002
