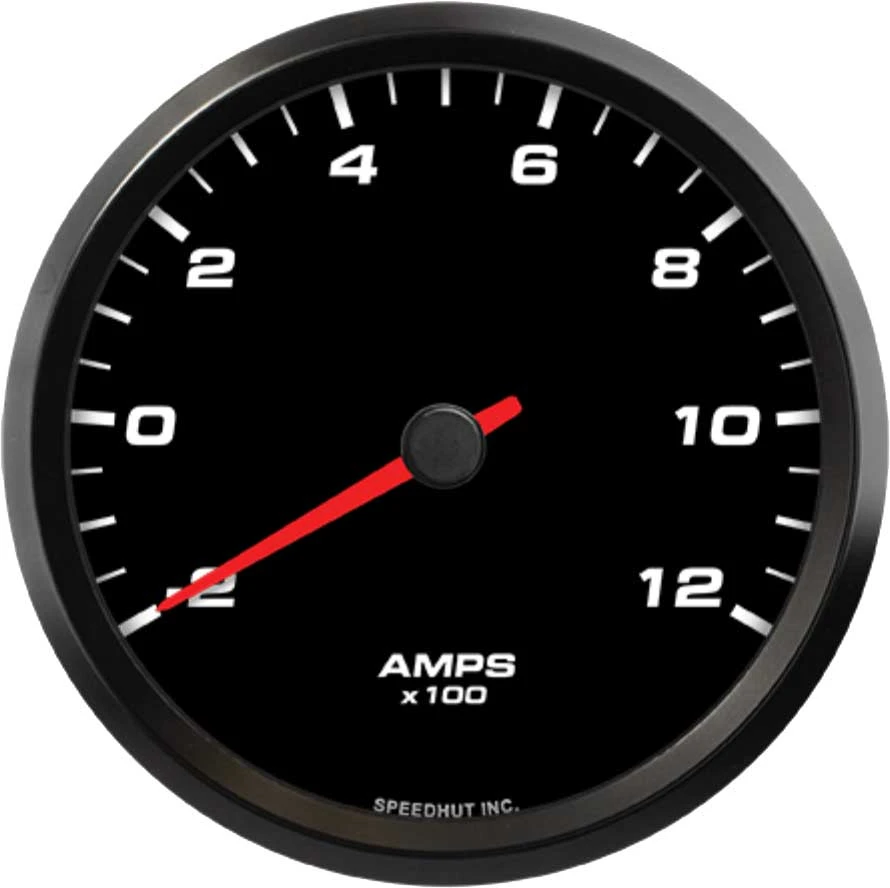

Speedhut 4" Orion EV -200 to 1200 Amp Gauge (FOR4-AM1-EV)
The Speedhut 4" Orion EV -200 to 1200 Amp Gauge (FOR4-AM1-EV) is an essential instrument designed for precise monitoring of your electric vehicle's electrical current. Engineered to deliver accurate and real-time readings, this gauge operates seamlessly with your EV's CAN-bus system at a 500K baud rate. This allows you to effectively assess and optimize power consumption, making it a valuable tool for both performance monitoring and ensuring the efficient operation of your EV's electrical components.
KEY FEATURES AND BENEFITS:
Provides accurate and real-time readings of electrical current within a range of -200 to 1200 amps.
Utilizes the EV's CAN-bus system (500K baud rate) for direct and simplified data acquisition.
Seamlessly integrates with compatible EV control units, eliminating the need for additional sensors.
Offers a clear and easily readable 4-inch display for convenient monitoring.
Contributes to better understanding and management of your EV's power consumption.
Aids in diagnosing potential electrical issues within the electric powertrain.
Signal Type: CAN-Bus (500K baud rate)
Range: -200 to 1200 amps
Hole Size: 3.93" (100mm)
3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
EV CAN Jumper Harness
Mount the Gauge: Install the 4" Speedhut EV Amp Gauge into a 3.93" (100mm) diameter opening in your desired location.
Connect the Power & Lighting Harness: Attach the provided 3 ft Power & Lighting Harness to the gauge, ensuring proper connections for power and illumination.
Connect the CAN-Bus Harness: Utilize the included EV CAN Jumper Harness and EV CAN Harness to connect the gauge to your electric vehicle's CAN-bus system. Ensure the connections are secure.
Verify Compatibility: Confirm that your EV's control unit operates on a 500K baud rate CAN-bus system and is compatible with Speedhut Orion series gauges.
Power On: Once all connections are made, power on your electric vehicle.
Monitor Readings: The Speedhut EV Amp Gauge will now display real-time amperage readings from -200 to 1200 amps.
BENEFITS OF USING THE SPEEDHUT 4" ORION EV -200 TO 1200 AMP GAUGE (FOR4-AM1-EV):
Gain a precise understanding of your EV's current draw for efficient energy management.
Facilitates the monitoring of electrical system performance, aiding in preventative maintenance.
Provides essential data for diagnosing potential issues within the electric powertrain.
Offers a clean and integrated display of crucial amperage information.
Contributes to optimizing your EV's range and overall efficiency.
Dedicated amp monitoring specifically designed for electric vehicles.
Communicates directly with the EV's computer via CAN-bus protocol.
Wide measurement spectrum from -200 to 1200 amps to capture various operational states.
Industry-standard 4-inch gauge size for versatile mounting options.
Requires a 3.93" (100mm) cutout for seamless installation.
Comes with necessary wiring harnesses for straightforward connection to power, lighting, and the CAN network.
Product identification
- Brand: Speedhut
- Model / MPN: FOR4-AM1-EV
