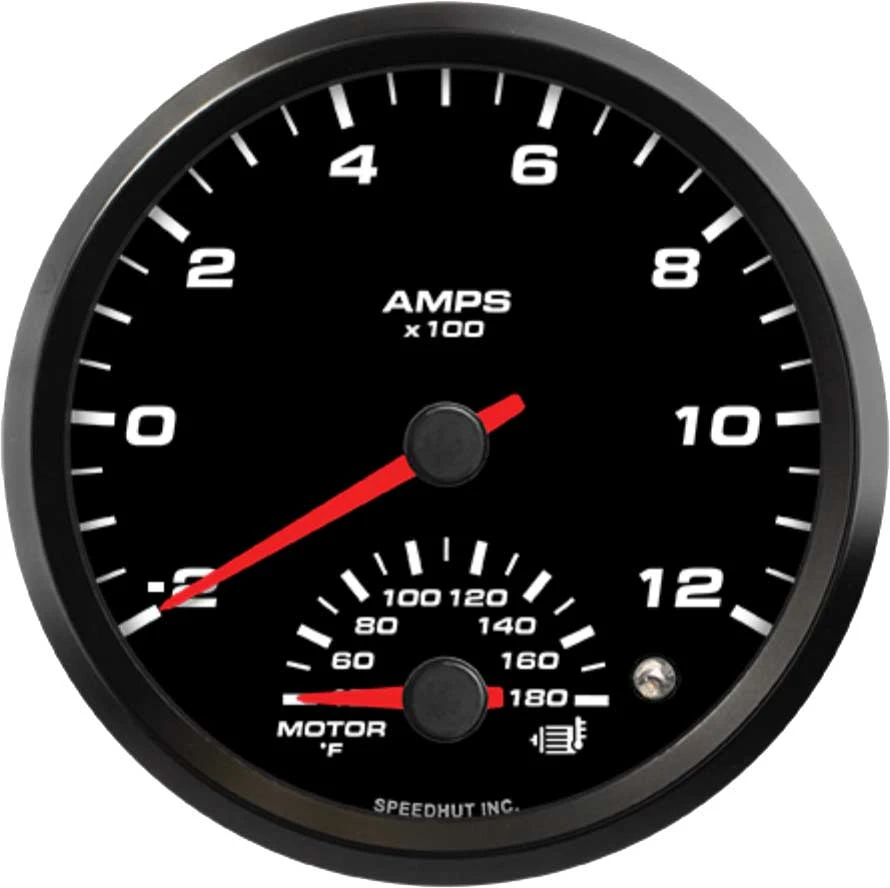

Speedhut 4" EV AEM -200-1200Amp/40-180F Motor Temp Gauge (FAE4-DG8-EV)
The Speedhut 4" EV AEM -200-1200Amp/40-180F Motor Temp Gauge (FAE4-DG8-EV) offers precise monitoring of your electric vehicle's motor amperage and temperature in a single, convenient 4-inch unit. Designed for seamless integration with AEM (Advanced Engine Management) systems via CAN-Bus at a 500K baud rate, this gauge provides real-time data to help you optimize power consumption and ensure safe operating temperatures. The built-in warning light adds an extra layer of safety, alerting you to potential overheating issues.
KEY FEATURES AND BENEFITS:
Dual Monitoring: Simultaneously displays electric motor amperage (from -200 to 1200 amps, indicating both draw and regeneration) and motor temperature (from 40 to 180 degrees Fahrenheit).
Enhanced Safety: Features an integrated warning light that activates when the motor temperature exceeds 160°F, providing a clear visual alert.
AEM System Compatibility: Specifically engineered to communicate with AEM systems using the CAN-Bus protocol at a 500K baud rate, ensuring accurate and reliable data transmission.
Space-Saving Design: The 4-inch format combines two essential readings into one gauge, minimizing dashboard clutter.
Real-Time Feedback: Provides immediate and continuous data on critical motor parameters, allowing for informed driving and maintenance decisions.
Gauge Type: Dual Gauge (Ampere & Motor Temperature)
Signal Type: CAN-Bus (500K baud rate)
Ampere Range: -200 to 1200 Amps
Temperature Range: 40 to 180 degrees Fahrenheit
Size: 4 inch (100mm hole size)
Warning Light Activation: Above 160 degrees Fahrenheit for Motor Temperature
Included: EV CAN Harness, 3 ft Power & Lighting Harness, EV CAN Jumper Harness
Installation: Mount the 4" Speedhut Dual Gauge into a 3.93" (100mm) diameter hole in your vehicle's dashboard. Secure it using the provided spin-lock ring.
Wiring Connection: Connect the provided harnesses as follows:
Connect the EV CAN Harness to your vehicle's CAN-Bus system. Ensure proper connection to the AEM system at a 500K baud rate.
Connect the 3 ft Power & Lighting Harness to a suitable power source and lighting circuit in your vehicle, following the wiring diagram provided. This will power the gauge and its backlighting.
Connect the EV CAN Jumper Harness as needed to facilitate the CAN-Bus connection.
Verification: Once all connections are made, turn on your vehicle's power. The gauge should illuminate and begin displaying the motor amperage and temperature readings.
Warning Light Check: To ensure the warning light is functioning correctly, monitor the motor temperature reading. If the temperature exceeds 160°F, the warning light should illuminate.
BENEFITS OF USING THE SPEEDHUT 4" EV AEM -200-1200AMP/40-180F MOTOR TEMP GAUGE (FAE4-DG8-EV):
Allows for proactive monitoring of the electric motor's performance, helping to optimize energy usage and extend range.
Real-time temperature monitoring helps prevent motor overheating, reducing the risk of costly repairs and performance loss.
Combining amperage and temperature readings into one unit simplifies the driver's interface and reduces dashboard clutter.
Seamless integration with AEM systems ensures accurate and reliable data for better decision-making.
Combined display shows both motor current and heat levels simultaneously for easy interpretation.
Reverse current indication allows monitoring of regenerative braking or reverse motor operation.
Precise stepper motor ensures accurate and smooth needle movement during dynamic driving conditions.
Slim case design offers a sleek and modern aesthetic with flexible dashboard installation.
Weather-resistant construction for durability in typical automotive environments.
Direct CAN communication enables reliable, high-speed data transfer from compatible AEM systems.
Product identification
- Brand: Speedhut
- Model / MPN: FAE4-DG8-EV
