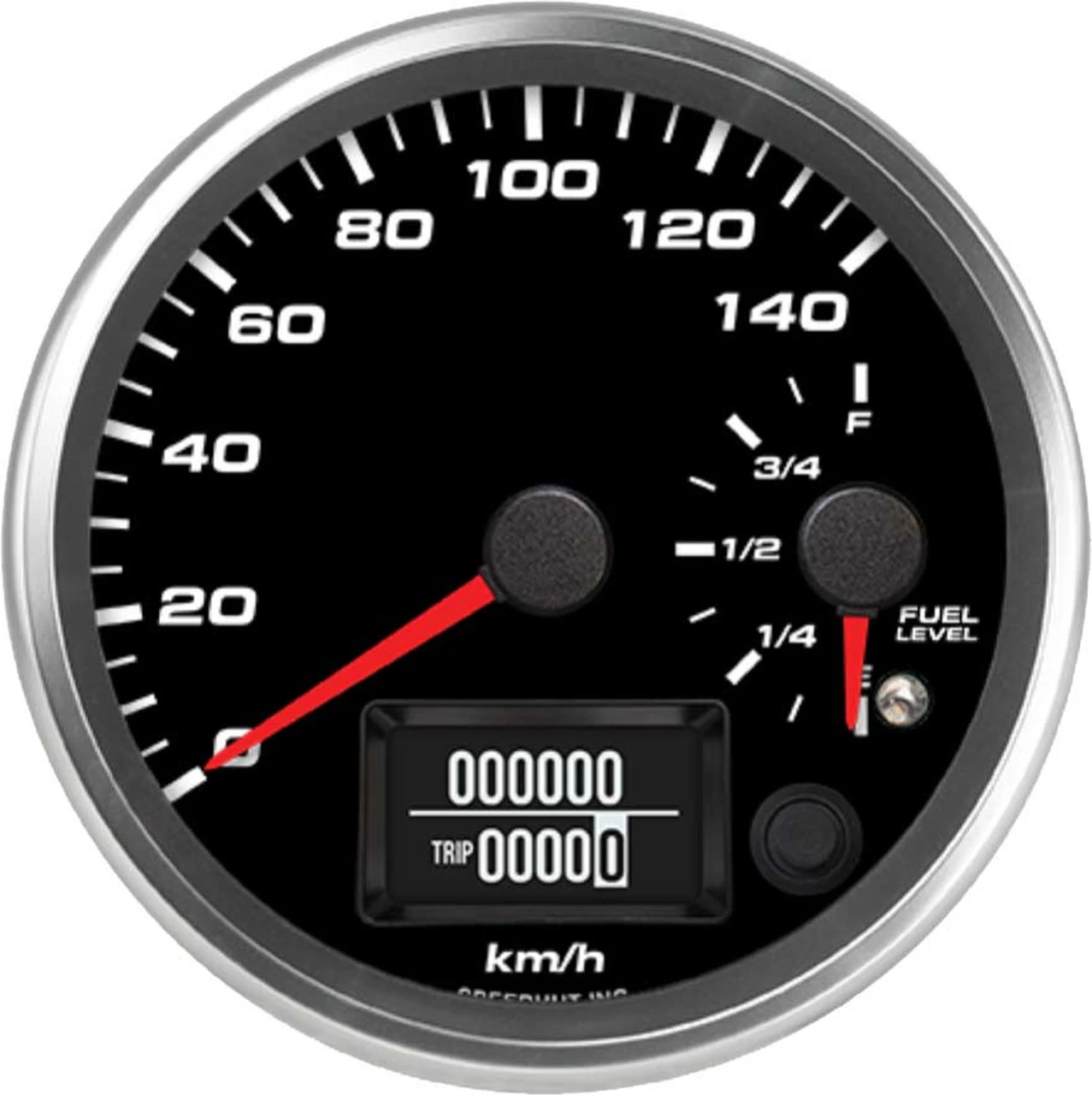

Speedhut 4" 140kmh GPS Speedometer/Fuel Level Dual Gauge (R4-DS12-LEG)
Experience enhanced driving awareness with the Speedhut 4" 140kmh GPS Speedometer/Fuel Level Dual Gauge (R4-DS12-LEG). This integrated gauge provides precise speed readings using advanced GPS technology and simultaneously displays your vehicle's fuel level, offering a comprehensive overview of essential driving information in a single, easy-to-read unit. Its straightforward installation and reliable performance make it an excellent addition to any vehicle.
KEY FEATURES AND BENEFITS:
Dual Functionality: Combines GPS-enabled speedometer and fuel level indicator in one compact gauge.
GPS Accuracy: Provides real-time speed data without traditional sensors or calibration.
Global Operation: Uses free GPS service without subscriptions or fees.
Fuel Level Compatibility: Programmable to work with most fuel level senders under 300 ohms.
Advanced Components: Features internal microprocessor and high-torque stepper motor for accurate readings and smooth pointer movement.
Easy Installation: Slim case and spin-lock ring for secure mounting in standard 3.93-inch (100mm) opening.
Durable Construction: Solid billet aluminum bezel and weather-resistant design ensure long-lasting performance.
Made in the USA: Built with high-quality craftsmanship and attention to detail.
Gauge Type: Dual GPS Speedometer and Fuel Level
Speed Range: 0 – 140 km/h
Fuel Level Range: Empty (E) – Full (F)
Size: 4 inches (diameter)
Mounting Hole Size: 3.93 inches (100mm)
Units: Metric (km/h)
3 ft Power & Lighting Harness (for LED Lit Gauges and Clocks)
Wiring Harness (2-Wire Cable)
GPS Antenna with 9.8 ft long cable and male SMA connector
Mount the Gauge: Locate a suitable 3.93-inch (100mm) diameter opening in your vehicle's dashboard. Insert the gauge into the opening and secure it using the spin-lock ring.
Connect Power and Ground: Connect the red wire from the included power and lighting harness to a 12V positive power source in your vehicle. Connect the black wire to a reliable ground.
Connect Fuel Level Sender (if applicable): Connect the appropriate wire from your vehicle's fuel level sender to the designated wire on the gauge's wiring harness. Refer to the Speedhut wiring diagram for specific connections.
Mount the GPS Antenna: Choose a location on your vehicle's exterior (or interior with a clear view of the sky) for the waterproof GPS antenna. Secure it in place and route the 9.8 ft cable to the back of the gauge, connecting the male SMA connector.
Initial Power-Up: Once all connections are made, turn on your vehicle's ignition. The gauge will power up and the GPS speedometer will acquire satellite signal (typically within a few seconds).
Fuel Level Calibration (if needed): If the fuel level reading is not accurate, you may need to calibrate the gauge to your specific fuel level sender. Refer to the Speedhut instructions for the calibration procedure.
BENEFITS OF USING THE SPEEDHUT 4" 140KMH GPS SPEEDOMETER/FUEL LEVEL DUAL GAUGE (R4-DS12-LEG):
Experience the advantage of precise speed readings without complex sensor installations or calibrations.
Monitor accurate fuel levels conveniently within the same gauge unit.
Simplified installation process saves time and reduces setup complexity.
Universally compatible with most fuel level senders under 300 ohms.
Clear, easy-to-read display enhances driving awareness and safety.
Real-time speed measurement via satellite-based GPS.
Simultaneous display of fuel level (Empty to Full).
Global operation with free GPS service.
Quick satellite acquisition upon startup.
No calibration required for tire size or gear ratios.
Internal microprocessor ensures highly accurate readings.
Smooth and precise pointer movement with a high-torque stepper motor.
Simple two-wire power and ground connection.
Slim case design for easy dashboard integration.
Secure mounting with the included spin-lock ring.
Robust construction with a solid billet aluminum bezel.
Weather-resistant for reliable performance in various conditions.
Proudly manufactured in the USA.
Product identification
- Brand: Speedhut
- Model / MPN: R4-DS12-LEG
