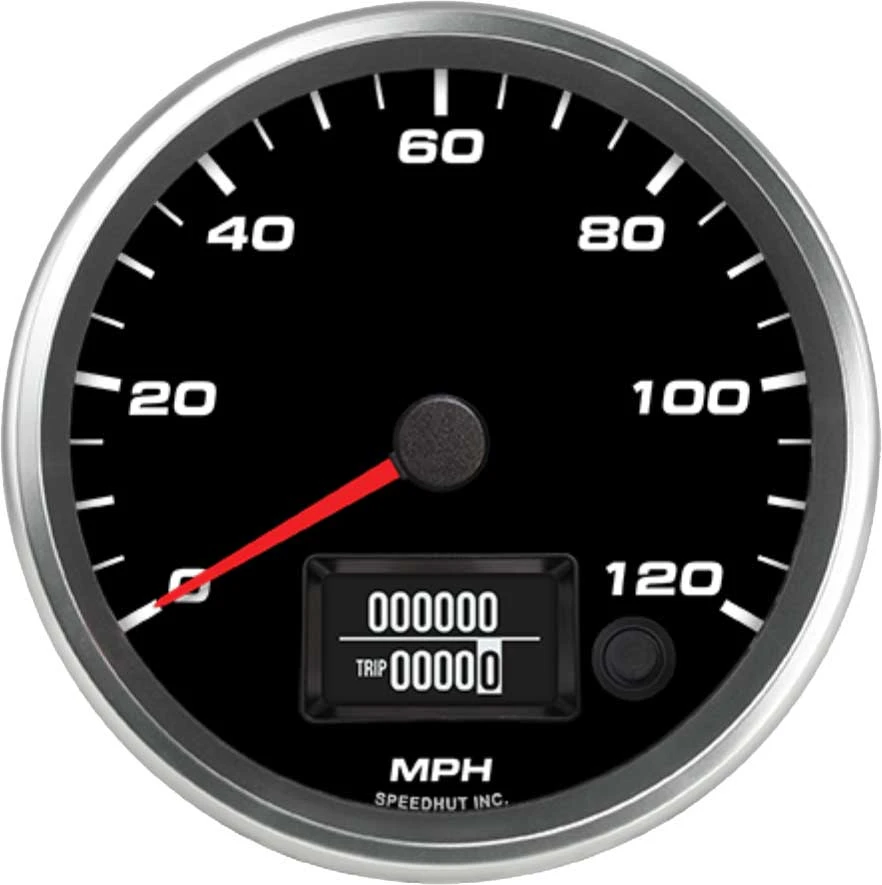

Speedhut 4-1/2" 120 mph GPS Speedometer (R45-S1-REV)
The Speedhut 4-1/2" 120 mph GPS Speedometer (R45-S1-REV) offers a straightforward and highly accurate way to monitor your vehicle's speed without the complexities of traditional speed sensors. Utilizing global positioning system technology, this 4-1/2 inch (108mm mounting hole) gauge provides precise speed readings with a simple installation process. Forget about the need to calibrate for different tire sizes or gear ratios – this speedometer relies on satellite signals for its accuracy. Designed for performance and ease of use, it's an ideal solution for any vehicle where accurate speed information is crucial and installation simplicity is desired.
KEY FEATURES AND BENEFITS:
Pinpoint Accuracy: An internal microprocessor ensures highly accurate speed readings.
Effortless Installation: Requires only a 12V power connection and the mounting of the included waterproof GPS antenna.
No Calibration Needed: Eliminates the hassle of inputting tire sizes or gear ratios.
Worldwide Operation: Functions globally with free GPS technology; no subscriptions required.
Durable Construction: Features a slim case, convenient spin-lock ring for secure mounting, and a solid billet aluminum bezel for added strength and a refined look.
Weather Resistance: Built to withstand various environmental conditions.
Pointer Precision: A high torque stepper motor ensures accurate pointer movement, even under demanding driving conditions.
Quality Craftsmanship: Proudly made in America.
Gauge Type: Speedometer
Speedometer Signal Type: GPS
Range: 0-120 MPH
Size: 4 1/2 inch
Hole Size: 4.250" (108mm)
Standard or Metric: Standard
GPS Antenna with 9.8 ft long cable and male SMA connector
3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
Mount the Gauge: Insert the 4-1/2 inch speedometer into a 4.250" (108mm) diameter hole in your dashboard or mounting location. Secure it using the spin-lock ring.
Connect Power: Connect the 3 ft power and lighting harness to a 12V power source in your vehicle. Ensure proper grounding.
Mount the GPS Antenna: Choose a location for the waterproof GPS antenna that has a clear view of the sky. This can typically be on the roof or dashboard.
Connect the Antenna: Connect the GPS antenna to the speedometer unit using the 9.8 ft cable with the male SMA connector.
Power On: Once all connections are secure, power on your vehicle. The speedometer will begin acquiring a GPS signal.
Operation: Once a GPS signal is acquired, the speedometer needle will indicate your vehicle's speed.
BENEFITS OF USING THE SPEEDHUT 4-1/2" 120 MPH GPS SPEEDOMETER (R45-S1-REV):
Achieve highly accurate speed readings without the need for complex mechanical connections.
Enjoy a simple and quick installation process, saving time and effort.
Benefit from universal compatibility across various vehicle types, regardless of their original speed sensor configuration.
Experience reliable performance worldwide thanks to free GPS technology.
Utilizes satellite-based positioning for velocity measurement.
Installs with a single power wire and antenna connection.
Automatically determines speed without user programming for tire size or gearing.
Operates globally without requiring any subscription fees.
Features a slim profile for versatile mounting options.
Secures easily with an integrated spin-lock mechanism.
Presents a clean and modern aesthetic with a solid aluminum bezel.
Designed to withstand typical automotive environmental conditions.
Ensures precise needle movement through a high-performance stepper motor.
Comes with a guarantee on the electronic components for the life of the product.
Product identification
- Brand: Speedhut
- Model / MPN: R45-S1-REV
