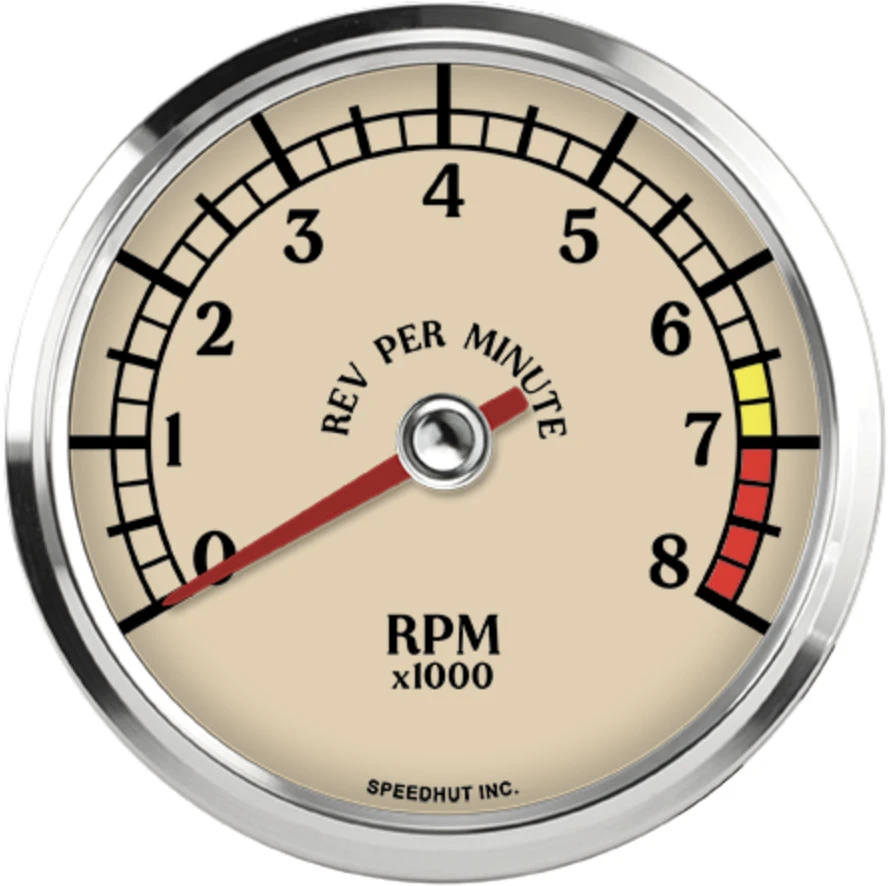

Speedhut 3-3/8" Antique Series 8K RPM Tachometer (L3-TC3-ATQ)
Speedhut 3-3/8" Antique Series 8K RPM Tachometer (L3-TC3-ATQ) is an essential instrument for monitoring your engine's performance. This gauge provides precise, real-time readings of your engine's revolutions per minute (RPM), allowing you to optimize its capabilities and ensure efficient operation. Its compatibility with a wide range of engines and ignition systems, combined with its straightforward installation, makes it a valuable tool for any vehicle enthusiast.
KEY FEATURES AND BENEFITS:
Accurate RPM Readings: Provides accurate and immediate RPM readings, crucial for engine monitoring.
Wide Compatibility: Works with 1 to 12 cylinder engines.
Standard Ignition System: Specifically designed for standard spark plug ignition systems.
Versatile Pulse Range: Supports 1/2 pulse to 6 pulses per revolution.
Pointer Precision: Ensures pointer accuracy under demanding conditions.
High Voltage Compatibility: Calibrated to function with any engine and tach signal over one volt.
Rugged Construction: Built for reliable performance.
Easy Installation: Designed for straightforward setup.
Included Mounting Ring: Comes with a gauge mounting ring for convenient installation.
Engine Efficiency: Helps achieve peak engine responsiveness and efficiency.
Gauge Type: Tachometer
Compatibility: 1-12 cylinder engines with standard spark plug ignition systems
Range: 0-8000 RPM
Size: 3 3/8 inch (85mm)
Hole Size: 3.3 inches (84mm)
Internal Shift Light: No
Included: Gauge mounting ring
Preparation: Identify a suitable location on your vehicle's dashboard for mounting the tachometer, ensuring enough clearance behind the panel.
Drilling (if necessary): Drill a 3.3-inch (84mm) hole if one does not already exist.
Wiring Connections: Connect the power wire (usually red) to a 12V switched power source and the ground wire (usually black) to a reliable ground on the chassis.
Signal Wire Connection: Connect the signal wire (often green or white) to the ignition system's appropriate signal source (coil negative terminal, ECU tach output, or distributor).
Mounting the Gauge: Insert the tachometer into the 3.3-inch (84mm) hole and secure it with the included mounting ring.
Testing: Start the vehicle and verify the RPM reading corresponds correctly to engine speed.
BENEFITS OF USING THE SPEEDHUT 3-3/8" ANTIQUE SERIES 8K RPM TACHOMETER (L3-TC3-ATQ):
Provides precise and immediate RPM data for better engine monitoring.
Prevents over-revving and optimizes gear changes for maximum performance.
Wide compatibility across many vehicle makes with standard ignition systems.
Simple installation process for easy integration.
Enhances driving decisions through accurate engine speed information.
Displays engine speed in revolutions per minute (RPM).
Classic antique-style design for vintage aesthetics.
Operates with signal voltage over one volt.
Robust construction for reliable performance in varied conditions.
Facilitates optimal engine performance monitoring.
Contributes to improved engine responsiveness.
Simple wiring process.
Fits standard 3 3/8" gauge openings.
Provides essential data for performance tuning and diagnostics.
Useful for everyday driving and racing applications.
Product identification
- Brand: Speedhut
- Model / MPN: L3-TC3-ATQ
