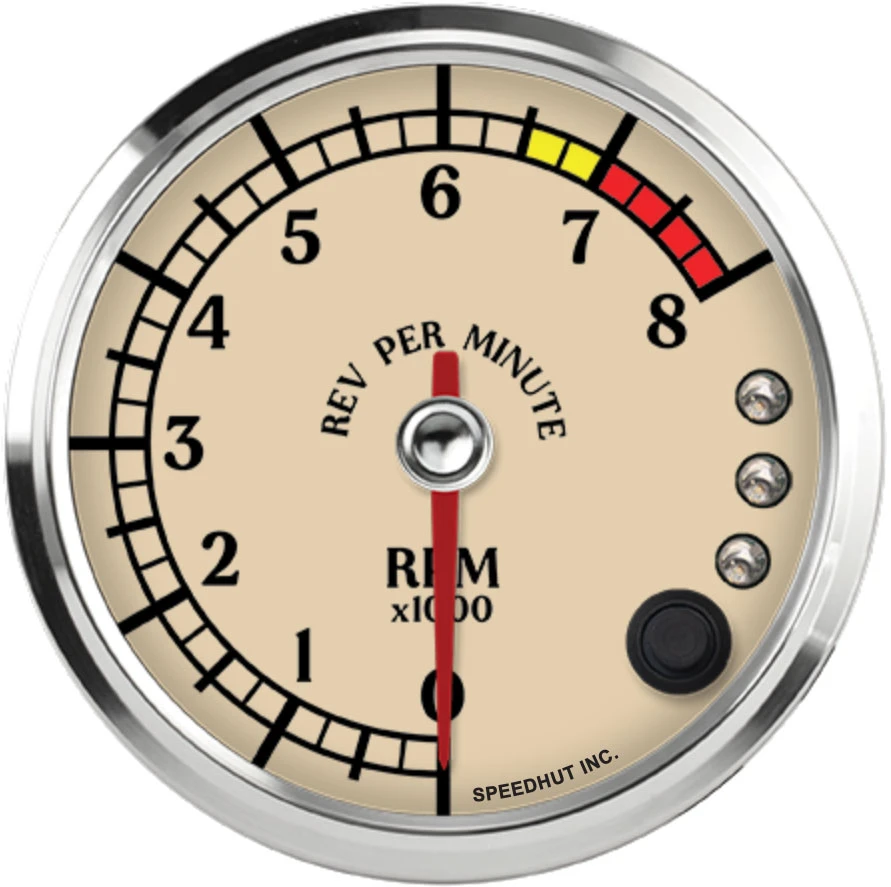

Speedhut 3-3/8" Antique 8K RPM Shift-light Tachometer (R3-TC3-ATQ)
The Speedhut 3-3/8" Antique 8K RPM Shift-light Tachometer (R3-TC3-ATQ) offers precise monitoring of your engine's revolutions per minute (RPM) up to 8,000. Combining a timeless antique aesthetic with modern functionality, this gauge features a clear black dial with white illumination and a built-in shift light to aid performance driving. Designed for straightforward installation in a standard 3-3/8 inch dash opening, this tachometer is compatible with a wide range of vehicles utilizing standard spark plug ignition systems and engines with 1 to 12 cylinders.
KEY FEATURES AND BENEFITS:
Accurate RPM Monitoring: Provides precise readings of engine speed up to 8,000 RPM, allowing for optimal engine management and performance.
Integrated Shift Light: Features a built-in, intensely bright shift light that alerts the driver to optimal shift points, enhancing acceleration and preventing over-revving.
Classic Antique Styling: The black dial with white font and illumination offers a traditional and stylish look that complements a variety of vehicle interiors.
Broad Engine Compatibility: Works seamlessly with most gasoline engines utilizing standard spark plug ignition systems and supports configurations from 1 to 12 cylinders.
Easy Installation: Designed to fit into a standard 3-3/8 inch (85mm) dash hole and includes a mounting ring for secure and simple installation.
Complete Wiring Included: Ships with all necessary wiring harnesses, including a power and lighting harness, and a dedicated tachometer signal harness, simplifying the connection process.
Gauge Type: Tachometer
Range: 0-8,000 RPM
Size: 3 3/8 inch (85mm)
Hole Size: 3.3 inches (84mm)
Tachometer Signal Type: Standard spark plug ignition systems
Compatibility: 1-12 cylinder engines
Internal Shift Light: Yes
– 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
– 8 ft Tachometer Harness – for LED Lit Gauges (1 Wire 2 Pin Connector)
– Gauge Mounting Ring
Prepare the Mounting Location: Ensure you have a 3.3-inch (84mm) diameter opening in your vehicle's dashboard where you want to install the tachometer.
Connect the Power and Lighting Harness: Connect the 3 ft Power & Lighting Harness to a suitable power source in your vehicle (typically a 12V accessory or ignition wire) and to a ground point. This harness also provides power for the gauge's illumination.
Connect the Tachometer Signal Harness: Locate the tachometer signal wire from your engine's ignition system (usually connected to the negative side of the coil or a designated tachometer output). Connect the 8 ft Tachometer Harness to this signal wire and then to the tachometer gauge.
Mount the Gauge: Insert the tachometer into the prepared dashboard opening from the front. Secure it in place using the included gauge mounting ring from the back of the dashboard.
Verify Connections: Double-check all wiring connections to ensure they are secure and correct.
Test the Gauge: Start your vehicle's engine to verify that the tachometer is receiving a signal and displaying the RPM correctly. Also, test the illumination and the functionality of the shift light as you reach the set RPM.
BENEFITS OF USING THE SPEEDHUT 3-3/8" ANTIQUE 8K RPM SHIFT-LIGHT TACHOMETER (R3-TC3-ATQ):
Improved Driving Performance: The integrated shift light allows for precise gear changes at optimal RPM, leading to better acceleration and overall driving performance.
Engine Protection: Monitoring RPM helps prevent over-revving your engine, which can cause damage and reduce its lifespan.
Enhanced Interior Aesthetics: The classic antique design adds a touch of traditional style to your vehicle's interior.
Accurate and Reliable Readings: Provides precise and real-time engine speed information, crucial for performance tuning and monitoring.
Straightforward Installation: The inclusion of necessary wiring harnesses and a mounting ring simplifies the installation process.
Clear black dial with easy-to-read white numerals and markings.
Bright white LED backlighting for excellent visibility, day or night.
Distinctive Racer Red needle for quick and clear RPM indication.
Internal, intensely bright shift light for immediate visual cues.
Robust construction designed for automotive environments.
Direct compatibility with standard spark plug ignition systems.
Designed to fit standard 3-3/8" (85mm) gauge openings.
Includes all essential wiring for a hassle-free setup.
Product identification
- Brand: Speedhut
- Model / MPN: R3-TC3-ATQ
