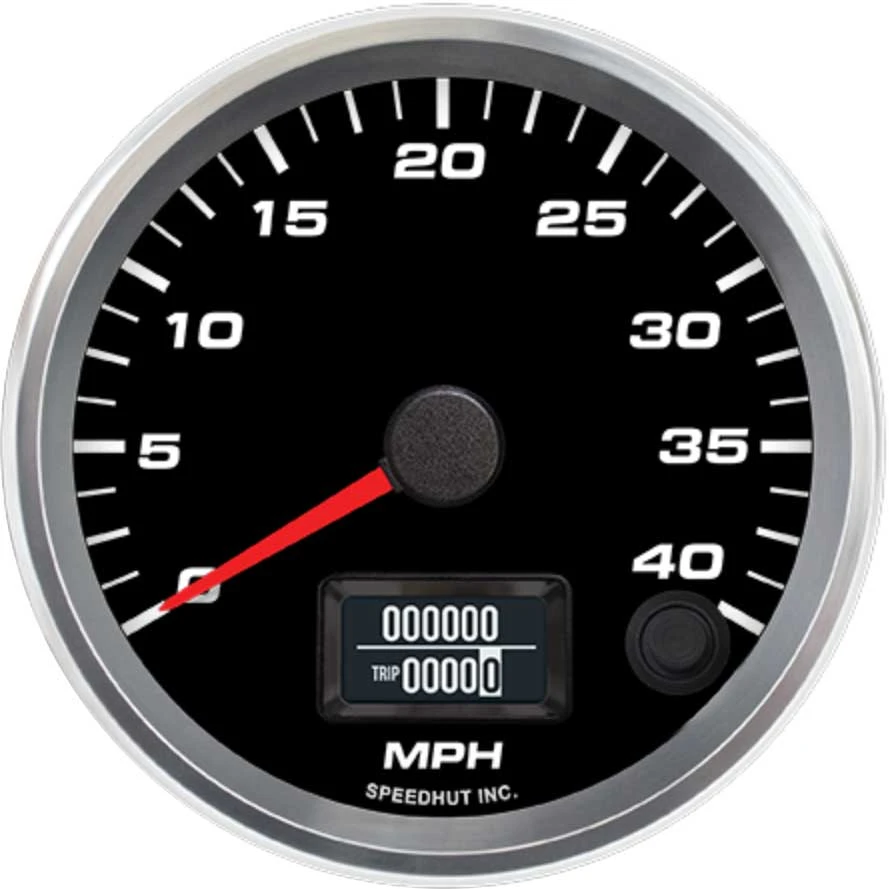

Speedhut 3-3/8" 40 mph GPS Speedometer (R3-S23-REV)
The Speedhut 3-3/8" 40 mph GPS Speedometer (R3-S23-REV) delivers highly accurate speed readings by utilizing global positioning system technology. This eliminates the complexities of traditional speed sensors and mechanical cables, offering a straightforward solution for displaying your vehicle's speed up to a maximum of 40 mph. Designed for ease of use and reliability, this gauge is suitable for a wide range of applications where precise, low-speed measurement is essential. Its robust construction and user-friendly interface make it a valuable tool for any performance-focused individual.
KEY FEATURES AND BENEFITS:
Pinpoint Accuracy: An internal microprocessor ensures precise speed readings, providing reliable data for your vehicle's performance.
Effortless Installation: Requires only a 12V power connection and a simple antenna placement, bypassing the need for intricate wiring or calibration.
Global Operation: Functions worldwide using free GPS technology, without any subscription fees, offering universal speed measurement.
Robust Design: Features a slim case, a secure spin-lock ring for easy mounting, and a solid billet aluminum bezel for enhanced durability and a refined appearance.
All-Weather Reliability: A weather-resistant design ensures consistent performance in various environmental conditions.
Quality Craftsmanship: Proudly made in America, reflecting superior manufacturing standards.
Clear Display: The user-friendly LCD screen offers easy readability of the speed information.
Gauge Type: Speedometer
Speedometer Signal Type: GPS
Range: 0 – 40 MPH
Size: 3 3/8 inch (3.375")
Hole Size: 3.33 inches (85mm)
Standard or Metric: Standard
3 ft Power & Lighting Harness (for LED Lit Gauges and Clocks)
GPS Antenna with 9.8 ft long cable and male SMA connector
Mount the Gauge: Secure the 3-3/8" Speedometer into an 85mm diameter opening in your dashboard or mounting panel using the spin-lock ring.
Connect Power: Attach the red wire from the provided power harness to a 12V DC power source in your vehicle. Connect the black wire to a suitable ground.
Connect Lighting (Optional): If desired, connect the additional wires in the power harness to your vehicle's lighting system to illuminate the gauge when the lights are turned on.
Mount the GPS Antenna: Place the waterproof GPS antenna in a location with a clear view of the sky. This can typically be on the roof, dashboard, or another unobstructed area. Ensure the mounting surface is clean and secure.
Connect the Antenna: Connect the male SMA connector of the GPS antenna cable to the corresponding connector on the back of the Speedometer gauge.
Power On: Turn on your vehicle's ignition. The speedometer should begin acquiring a GPS signal and will display your speed once a signal is established. No calibration is required.
BENEFITS OF USING THE SPEEDHUT 3-3/8" 40 MPH GPS SPEEDOMETER (R3-S23-REV):
Enjoy a simplified installation process that saves time and effort, requiring only basic power and antenna connections.
Benefit from worldwide operation without the burden of ongoing subscription fees.
The clear LCD display provides easy readability, enhancing the driving or operating experience.
Satellite-based velocity tracking for precise readings.
Plug-and-play power and antenna connections for quick setup.
Global compatibility utilizing free GPS network signals.
Compact and secure mounting with the integrated spin-lock system.
Durable outer ring crafted from solid aluminum.
Resistant to the elements, ensuring functionality in diverse weather.
Guaranteed performance and reliability for the lifetime of the product.
Manufactured in the USA, adhering to high-quality standards.
Integrated circuit for dependable data processing.
High-response motor for immediate needle movement.
Product identification
- Brand: Speedhut
- Model / MPN: R3-S23-REV
