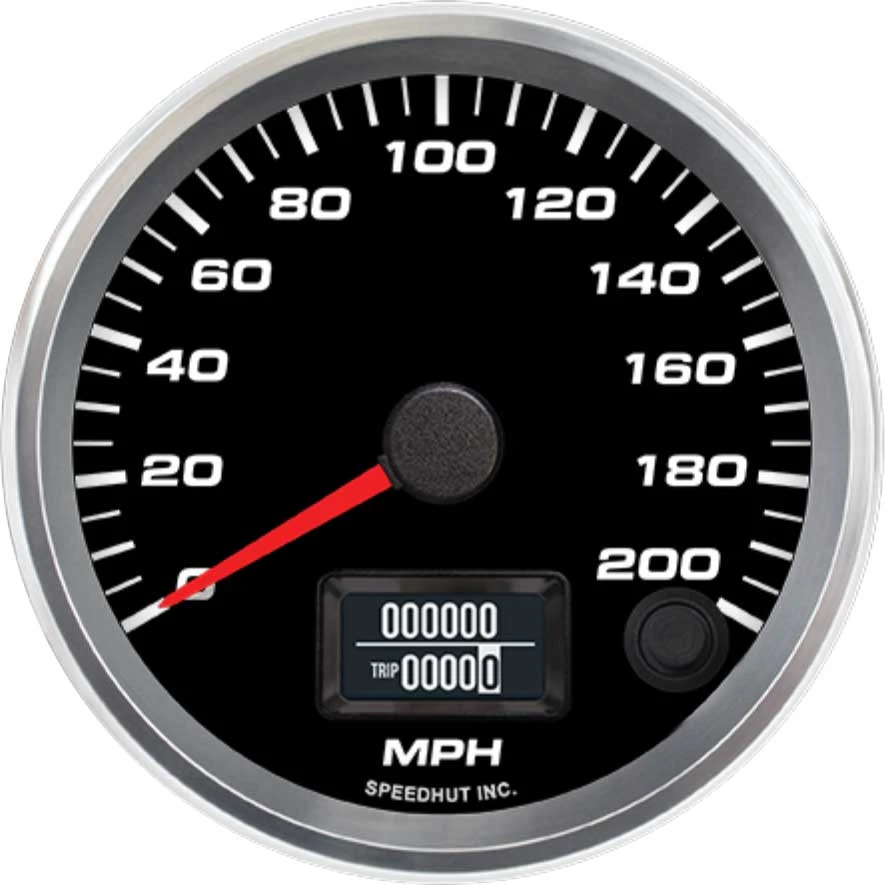

Speedhut 3-3/8" 200 mph GPS Speedometer (R3-S16-REV)
Experience precise speed indication with the Speedhut 3-3/8" 200 mph GPS Speedometer (R3-S16-REV). This 3 3/8 inch (85mm) gauge provides accurate speed readings up to 200 MPH by utilizing global positioning system technology. Say goodbye to the complexities of traditional speed sensors and calibration processes. Installation is straightforward, requiring only a 12V power connection and the included GPS antenna. Designed for performance enthusiasts, this speedometer offers reliable and accurate speed information without the need for any subscription fees. Its robust construction and clear display make it an essential instrument for monitoring your vehicle's speed.
KEY FEATURES AND BENEFITS:
Provides highly accurate speed readings: Uses GPS technology, eliminating the need for mechanical sensors.
Wide measurement range: Displays up to 200 MPH to suit various vehicle applications.
Simple installation: Requires only a 12V power source and the included waterproof GPS antenna.
No calibration required: Eliminates the need for adjustments based on tire size or gear ratios.
Global operation: Uses free GPS signals without subscription costs.
Easy mounting: Slim case and spin-lock ring for secure fit in a 3 3/8 inch (85mm) hole.
Durable construction: Solid billet aluminum bezel for strength and aesthetics.
Weather-resistant design: Built to perform in various environmental conditions.
American-made quality: Crafted in the USA to high manufacturing standards.
Gauge Type: Speedometer
Speedometer Signal Type: GPS
Size: 3 3/8 inch (85mm)
Hole Size: 3.33 inches (85mm)
Standard or Metric: Standard
Gauge Mounting Ring: Included
Ships With: 3 ft Power & Lighting Harness, GPS Antenna with 9.8 ft long cable and male SMA connector
Power Requirement: 12V
Mount the Gauge: Locate a suitable 3 3/8 inch (85mm) opening in your vehicle's dashboard. Secure the speedometer in place using the provided slim case and spin-lock ring.
Connect Power: Connect the red wire from the included 3 ft Power & Lighting Harness to a 12V positive power source in your vehicle. Connect the black wire to a suitable ground.
Install GPS Antenna: Choose a location outside your vehicle where the included waterproof GPS antenna has a clear view of the sky. Mount the antenna securely.
Connect GPS Antenna: Run the 9.8 ft cable from the GPS antenna to the back of the speedometer and connect the male SMA connector to the corresponding port.
Power On: Turn on your vehicle's ignition. The speedometer will power on and begin acquiring a GPS signal.
Operation: Once a GPS signal is acquired, the speedometer will display your vehicle's speed accurately. No further calibration is required.
BENEFITS OF USING THE SPEEDHUT 3-3/8" 200 MPH GPS SPEEDOMETER (R3-S16-REV):
Exceptional accuracy derived from GPS satellite data eliminates errors from tire wear, gear changes, or sensor issues.
Simple installation process with minimal wiring and no calibration required.
Global compatibility ensures accurate readings anywhere without the need for subscriptions.
Weather-resistant and robust construction ensures performance in all conditions.
Includes all necessary mounting hardware for easy dashboard integration.
Utilizes satellite-based positioning for precise velocity measurement.
Displays speed up to 200 miles per hour.
Fits into a standard 3 3/8" (85mm) instrument panel opening.
Installs easily with a simple two-wire power connection.
Comes with a dedicated external GPS receiver for optimal signal acquisition.
Securely mounts with a spin-lock mechanism.
Features an outer ring crafted from strong aluminum.
Engineered to resist the elements for reliable operation.
Guaranteed against manufacturing defects for the life of the product.
Manufactured with attention to detail in the United States.
Product identification
- Brand: Speedhut
- Model / MPN: R3-S16-REV
