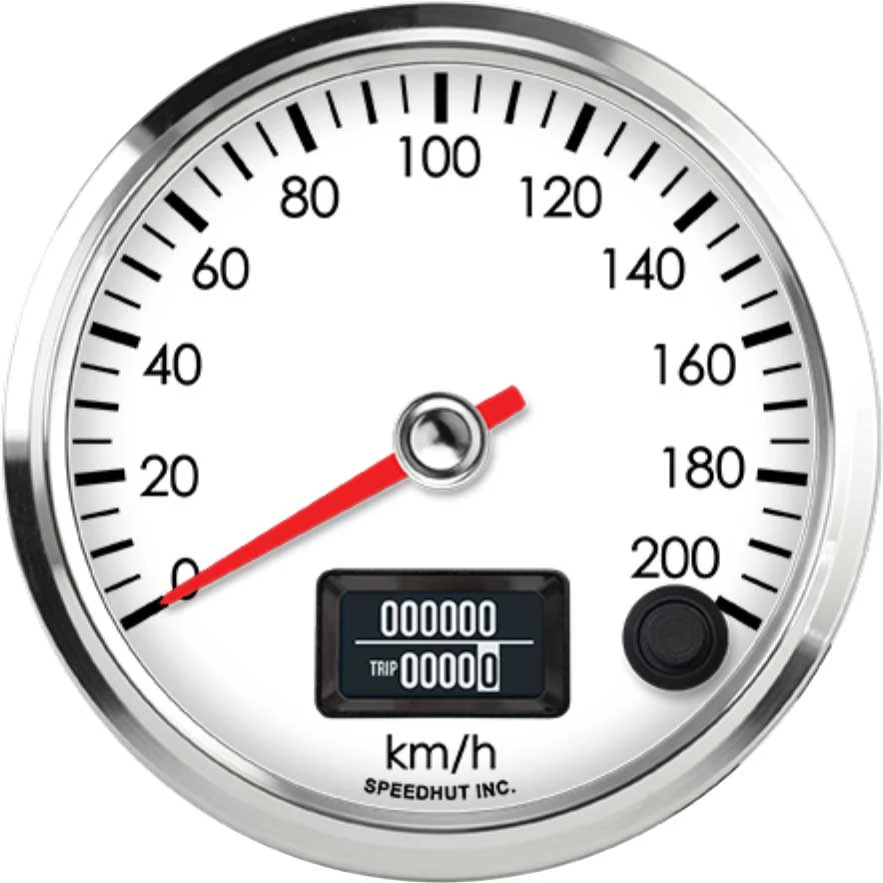

Speedhut 3-3/8" 200 km/h Metric GPS Speedometer (R3-S2-LEG)
KEY FEATURES AND BENEFITS:
Simplified Installation: Requires only a 12V power connection and the included GPS antenna, eliminating traditional speed sensor hookups.
Calibration-Free Operation: No need to input tire sizes or gear ratios, offering a plug-and-play experience.
Global Functionality: Operates worldwide using the free GPS network without subscription costs.
Durable Design: Features a slim case, secure spin-lock ring for easy mounting, and a solid billet aluminum bezel for enhanced resilience and a premium aesthetic.
Weather Resistance: Engineered for long-lasting performance in various environmental conditions.
Integrated Odometer and Trip Meter: LCD screen displays total distance traveled and resettable trip distance.
Reliable Performance: High-torque stepper motor guarantees accurate and stable pointer movement under all driving conditions.
Gauge Type: Speedometer
Speedometer Signal Type: GPS
Range: 0-200 km/h
Size: 3 3/8 inch (3.375")
Hole Size: 3.3 inches (84mm)
Standard or Metric: Metric
GPS Antenna with a 9.8 ft long cable and male SMA connector
3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
Mount the Gauge: Locate a suitable 3 3/8" (84mm) diameter hole in your vehicle's dashboard. Secure the gauge with the spin-lock ring.
Connect Power: Attach the red wire from the Power & Lighting Harness to a 12V positive power source switched with the ignition. Connect the black wire to ground.
Install the GPS Antenna: Choose a location with clear sky visibility (e.g., roof, dashboard, rear deck). Secure the antenna.
Connect the Antenna: Plug the male SMA connector from the GPS antenna cable into the gauge's corresponding connector.
Optional Lighting Connection: If the gauge has LED backlighting, connect the additional wires as per the gauge's wiring diagram.
Start Your Vehicle: Turn on the vehicle’s ignition; the gauge will power on and begin acquiring a GPS signal.
Wait for GPS Lock: Allow the gauge to acquire a GPS signal. Once locked, the speedometer will display your speed and show odometer/trip readings.
Monitor Speed: Use the gauge to track your vehicle's speed. Reset the trip meter as needed.
BENEFITS OF USING THE SPEEDHUT 3-3/8" 200 KM/H METRIC GPS SPEEDOMETER (R3-S2-LEG):
Provides highly accurate speed readings, independent of tire size or transmission variations.
Offers quick installation, saving time and effort.
Eliminates the need for calibration procedures.
Ensures reliable speed information globally, without ongoing costs.
Features a robust and weather-resistant design for various conditions.
Classic billet aluminum bezel adds to your vehicle’s aesthetic.
Integrated odometer and trip meter offer added convenience.
Advanced Microprocessing: Delivers precise and stable speed calculations.
High-Response Stepper Motor: Ensures smooth and accurate needle movement.
Streamlined Enclosure: Compact and easy-to-mount design.
Premium Bezel Material: Enhances appearance and durability.
All-Weather Performance: Reliable function in diverse climates.
Lifetime Guarantee: Reflects the product's quality and longevity.
American Engineering: Demonstrates superior manufacturing standards.
Product identification
- Brand: Speedhut
- Model / MPN: R3-S2-LEG
