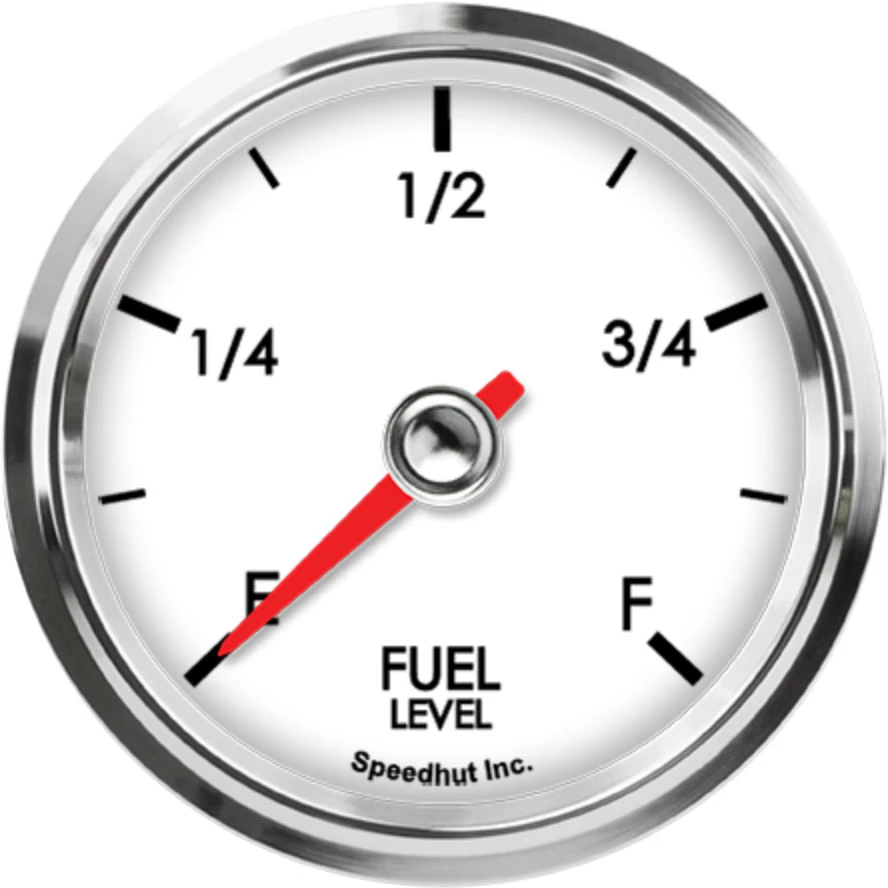

Speedhut 2-5/8" Programmable Fuel Level Gauge (L25-FL1-LEG)
The Speedhut 2-5/8" Programmable Fuel Level Gauge (L25-FL1-LEG) provides a clear and easy-to-understand Empty to Full (E-F) reading, ensuring you always know how much fuel you have. Designed for compatibility with a wide range of fuel level sensors that operate at 300 ohms or less, this gauge offers flexibility for various automotive applications. Its standard 2-5/8 inch size makes it a suitable fit for many aftermarket gauge setups, requiring a 2.67-inch mounting hole.
KEY FEATURES AND BENEFITS:
Accurate Fuel Monitoring: Designed for sensors with a resistance of 300 ohms or less.
Standard Size Compatibility: Fits into common 2-5/8 inch gauge mounts.
Clear Display: Shows fuel levels from Empty to Full at a glance.
Easy Installation: Includes necessary wiring harnesses to simplify setup.
Gauge Type: Fuel Level Gauge
Fuel Level Signal Type: 300 ohms or less
Size: 2 5/8 inch
Standard or Metric: Standard
Hole Size: 2.67 inches (68mm)
Warning Light: No
Wiring Harness (2-Wire Cable)
3 ft Power & Lighting Harness
Prepare the Mounting Location: Ensure you have a 2.67-inch (68mm) diameter hole for mounting the gauge.
Connect the Power and Lighting Harness: Attach the 3 ft power and lighting harness to the appropriate power and ground sources in your vehicle, as well as to any desired lighting circuit for the gauge's illumination.
Connect the Fuel Level Sensor Wires: Connect the two wires from the included 2-wire cable to the output of your fuel level sensor. Ensure correct polarity if specified by your sensor's documentation.
Connect to the Gauge: Plug the other end of both the power/lighting harness and the fuel level sensor harness into the corresponding connectors on the back of the Speedhut fuel level gauge.
Mount the Gauge: Carefully insert the gauge into the prepared 2.67-inch mounting hole and secure it using the appropriate mounting hardware (if included or as required for your specific mounting solution).
Test the Gauge: With the vehicle powered on, observe the gauge as the fuel level changes. You may need to calibrate the gauge if it offers programming options to match your specific fuel level sender for optimal accuracy (refer to the manufacturer's instructions for any programming procedures).
BENEFITS OF USING THE SPEEDHUT 2-5/8" PROGRAMMABLE FUEL LEVEL GAUGE (L25-FL1-LEG):
Precise Fuel Monitoring: Prevents unexpected fuel shortages with reliable readings.
Sensor Versatility: Compatible with a wide range of fuel level sensors (up to 300 ohms).
Instant Readability: Clear Empty to Full display gives you instant insight.
Streamlined Installation: Wiring harnesses included for quicker, easier setup.
Sensor Compatibility: Designed to interface with fuel level sensors outputting a resistance of 300 ohms or less.
Dedicated Sensor Cable: Includes a dedicated 2-wire cable for connection to the fuel level sensor.
Power & Lighting Harness: Comes with a separate 3 ft power and lighting harness for easy electrical connections.
Mounting Requirement: Requires a 2.67-inch (68mm) hole for mounting.
Application Versatility: Suitable for a variety of automotive applications requiring accurate fuel level indication.
Product identification
- Brand: Speedhut
- Model / MPN: L25-FL1-LEG
