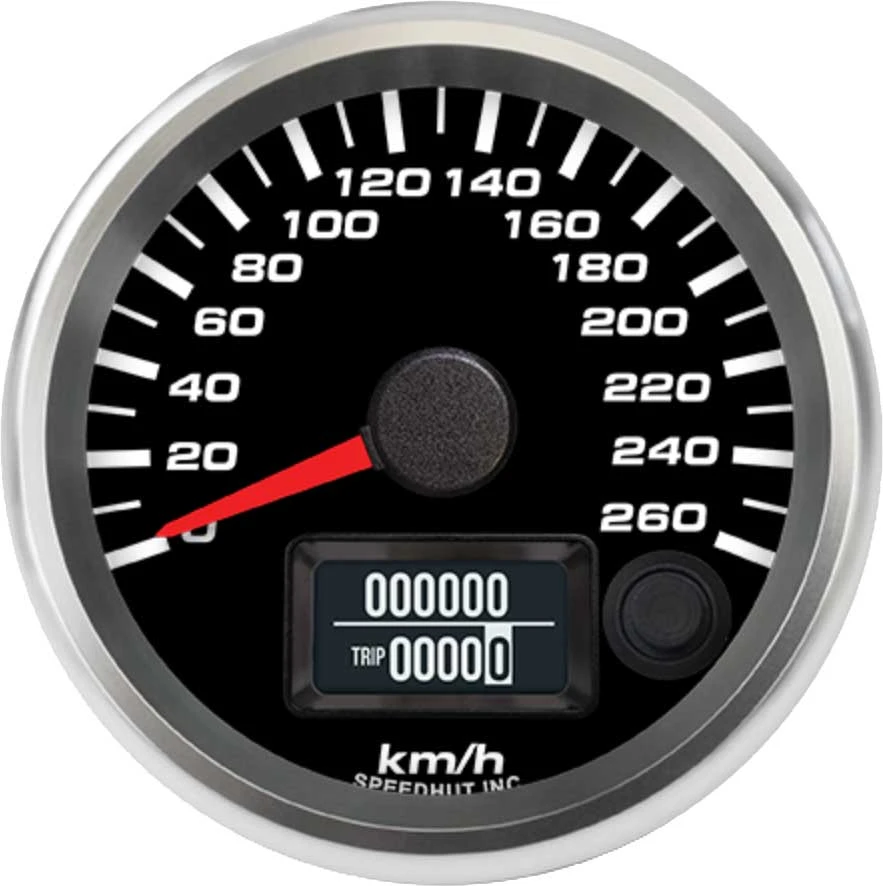

Speedhut 2-5/8" 260 km/h GPS Speedometer (R25-S4-REV)
KEY FEATURES AND BENEFITS:
Provides highly accurate speed readings thanks to its internal microprocessor.
Ensures precise pointer movement even in demanding driving conditions with its high-torque stepper motor.
Offers a simple and secure mounting process with its slim case and convenient spin-lock ring.
Adds a touch of robustness and style with its solid billet aluminum bezel.
Designed to withstand various environmental conditions due to its weather-resistant build.
Reflects superior quality and craftsmanship as it is proudly made in America.
Eliminates the need for traditional speed sensors and complex wiring.
Operates globally using free GPS technology, requiring no additional subscriptions.
Presents speed in metric units (km/h).
Features an easy-to-read LCD screen for additional information.
Gauge Type: Speedometer
Speedometer Signal Type: GPS
Size: 2 5/8 inch
Hole Size: 2.67" (68mm)
Standard or Metric: Metric
Included: 3 ft Power & Lighting Harness, GPS Antenna with 9.8 ft long cable and male SMA connector, Gauge Mounting Ring
Mount the Gauge: Insert the Speedhut GPS Speedometer into a 2.67" (68mm) diameter hole in your desired location and secure it using the included spin-lock mounting ring.
Connect Power: Connect the red wire from the included 3 ft Power & Lighting Harness to a 12V positive power source in your vehicle. Connect the black wire to a suitable ground. If your gauge has backlighting, connect the appropriate wire(s) from the harness according to the instructions.
Install GPS Antenna: Mount the included GPS antenna in a location with a clear, unobstructed view of the sky. This is crucial for accurate GPS signal reception. Common mounting locations include the vehicle's roof or dashboard.
Connect GPS Antenna: Connect the male SMA connector on the 9.8 ft cable of the GPS antenna to the corresponding connector on the back of the Speedhut GPS Speedometer.
Power On: Once all connections are secure, power on your vehicle. The speedometer will automatically acquire a GPS signal. This may take a few seconds initially.
Observe Readings: The speedometer will now display your vehicle's speed in kilometers per hour. The LCD screen may also display additional information such as odometer or trip meter readings.
BENEFITS OF USING THE SPEEDHUT 2-5/8" 260 KM/H GPS SPEEDOMETER (R25-S4-REV):
Experience the advantage of precise speed measurement without the complexities of traditional sensor-based systems.
Simplified installation process saves time and effort with no calibration needed.
Operates seamlessly worldwide using free GPS signals with no subscription requirements.
Reliable performance thanks to robust, weather-resistant construction.
Proudly made in the USA with superior build quality.
Perfect solution for any driver requiring dependable and easy-to-use speed monitoring.
Utilizes satellite-based positioning for immediate and precise velocity readings.
Employs a direct power connection for straightforward electrical integration.
Designed for universal compatibility across a wide range of vehicles.
Provides speed data in kilometers per hour for metric system users.
Features a bright LCD to display supplementary vehicle information.
Boasts a slim profile for versatile dashboard or panel integration.
Constructed with a robust aluminum outer ring for enhanced resilience.
Engineered to resist damage from typical environmental exposure.
Backed by a comprehensive guarantee on the electronic components.
Manufactured with high standards in the United States.
Product identification
- Brand: Speedhut
- Model / MPN: R25-S4-REV
