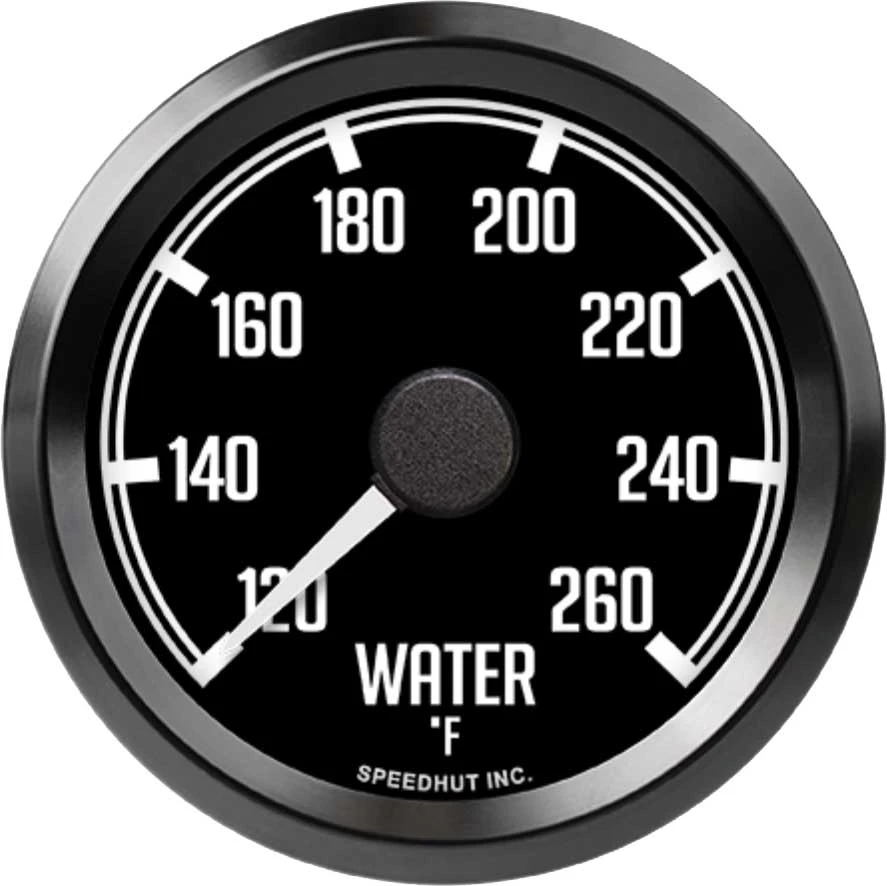

Speedhut 2-5/8" 120-260F Water Temp Gauge – Datsun Z (L25-WT1-DATZ)
The Speedhut 2-5/8" 120-260F Water Temp Gauge – Datsun Z (L25-WT1-DATZ) is a crucial instrument for any Datsun Z owner focused on maintaining peak engine performance and longevity. This gauge provides precise, real-time readings of your engine's coolant temperature, allowing for proactive monitoring of its health. Its straightforward installation makes it a valuable addition for assessing the efficiency of your vehicle's cooling system, enabling the early detection of potential problems before they lead to significant engine damage. By keeping a close eye on your engine's operating temperature, you can ensure it stays within the optimal range for best performance and extended life.
KEY FEATURES AND BENEFITS:
Provides accurate and immediate readings: Monitors engine water temperature in real time.
Enables proactive monitoring: Helps maintain engine health and performance.
Cooling system assessment: Identifies issues early to prevent damage.
Optimal temperature maintenance: Supports consistent, efficient engine operation.
Robust design: Built for durability in automotive environments.
Simple installation: Can be installed with basic tools and components.
Gauge Type: Temperature Gauge
Gauge Subtype: Water Temperature Gauge
Temperature Range: 120-260 degrees Fahrenheit
Size: 2 5/8 inch
Hole Size: 2.67 inches (68mm)
Sender Type: 2-Wire Temp Sender (Performance)
Standard or Metric: Standard (Fahrenheit)
Warning Light: No
Speedhut Temperature Sensor
Temperature Gauge Wiring Harness (2-Wire Cable)
3 ft Power & Lighting Harness
Mount the Gauge: Choose a 2.67-inch (68mm) hole in the dashboard and secure the gauge using the mounting method provided.
Install the Temperature Sensor: Fit the Speedhut sensor into a port on the engine’s coolant system, ensuring a sealed connection.
Connect the Sensor Wiring: Run the included 2-wire harness to the gauge and connect according to the wiring diagram.
Connect Power and Lighting: Use the 3 ft harness to connect to a 12V ignition or accessory power source. Ground the gauge and optionally connect lighting to the vehicle’s circuit.
Verify Operation: Start the engine and allow it to reach temperature. Check the gauge for accurate readings.
BENEFITS OF USING THE SPEEDHUT 2-5/8" 120-260F WATER TEMP GAUGE – DATSUN Z (L25-WT1-DATZ):
Proactive engine protection: Monitors temperature to prevent overheating and costly repairs.
Improved engine efficiency: Helps maintain optimal operating temperatures.
Cost-effective maintenance: Detects issues early to avoid major engine damage.
Enhanced reliability: Real-time monitoring increases confidence while driving.
Easy to install: Comes with all necessary hardware and harnesses for straightforward setup.
Precise coolant temperature readings: Captures accurate data directly from the engine.
Performance-oriented sensor: Includes a 2-wire sender for dependable feedback.
Fahrenheit display: Ranges from 120 to 260°F for standard readings.
Standard 2-5/8 inch diameter: Compatible with common gauge mounts.
2.67-inch mounting hole: Ensures secure dashboard installation.
Speedhut sensor included: Designed for reliable operation.
Dedicated 2-wire cable harness: Simplifies sensor hookup.
3 ft power and lighting harness: Provides clean electrical connectivity.
Automotive-grade durability: Built for long-term use in harsh environments.
Critical performance data: Lets you monitor the engine's cooling system health.
Product identification
- Brand: Speedhut
- Model / MPN: L25-WT1-DATZ
