Speedhut L25-OP3-LEG 2-5/8in Legacy 100PSI Oil Gauge

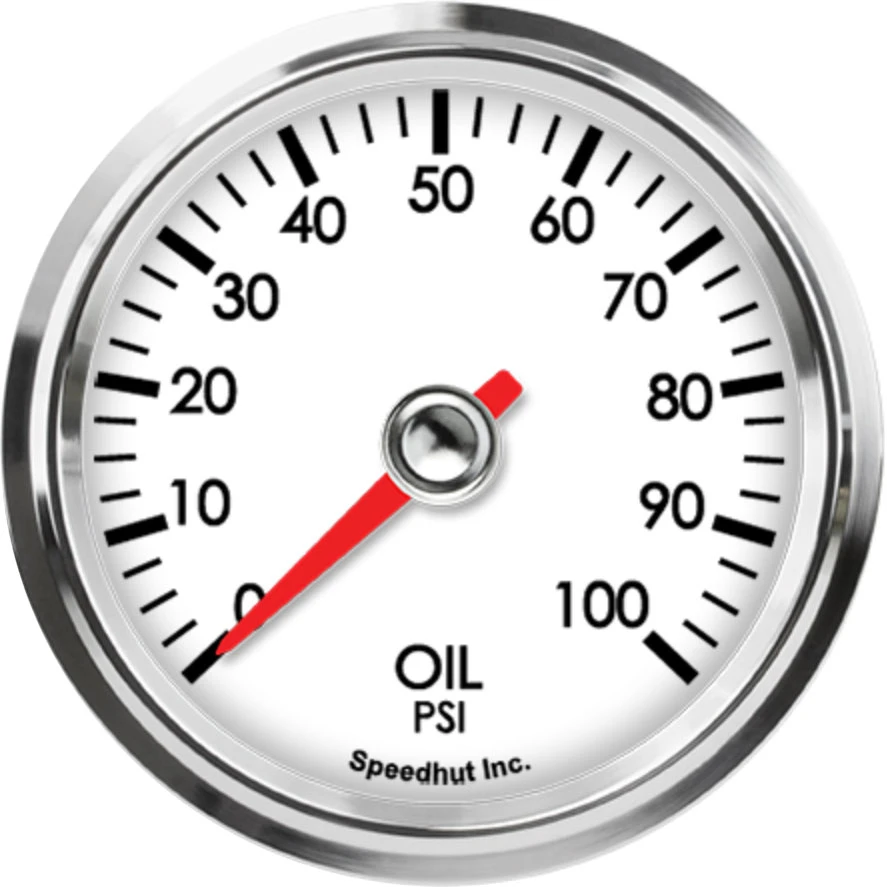

Speedhut L25-OP3-LEG provides a larger white Legacy dial with a 0–100 PSI scale. The gauge size is 2-5/8 inches, while the listed opening is 2.67 inches; these separate figures should guide a fit check rather than an assumed nominal-size cutout.
Specifications and included details
- White Legacy0–100PSI dial.
- 2-5/8-inch nominal size and 2.67-inch (68mm) listed opening.
- 100 PSI three-wire transducer listed.
- Sensor cable and 3-foot power/lighting harness included in details.
Before ordering
Verify the actual opening, sender-port fit and wiring diagram. Confirm mounting hardware inventory separately; the available instructions do not explicitly establish it as supplied. Do not borrow smaller Legacy-model dimensions.
Product questions and answers
Does the nominal diameter give the exact hole size?
No. This listing states a separate 2.67-inch opening; use the confirmed template.
Is mounting hardware explicitly included?
It is not clearly established in these details. Confirm it before planning installation.
Is the pressure sensor supplied?
Yes. A 100 PSI three-wire sensor and the named harnesses are listed.
