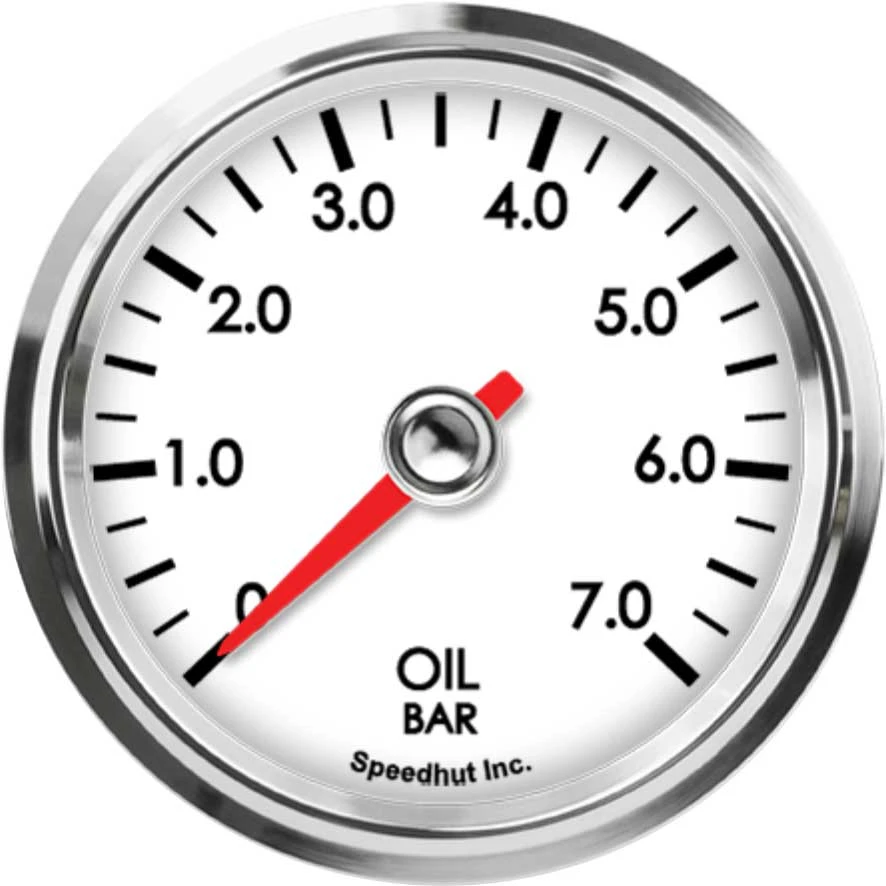

Speedhut L25-OP4-LEG 2-5/8in 0–7 Bar Oil Gauge
Speedhut L25-OP4-LEG is the larger metric Legacy gauge with a 0–7bar face. The supplied sensor is described in PSI, but the dial itself reads bar, allowing selection against service information expressed in metric pressure units.
Specifications and included details
- 0–7bar metric display.
- 2-5/8-inch gauge; listed opening 2.67 inches (68mm).
- 100PSI three-wire pressure sensor listed, approximately7bar.
- Sensor cable and 3-foot power/lighting harness described.
Before ordering
Confirm the operating-pressure range, sensor signal and mounting template. Choose this 7bar variant deliberately rather than confusing it with the separate14bar model. A nominal gauge diameter is not the cutting template.
Product questions and answers
Does the face read100PSI because of the sender label?
No. The face displays0–7bar; the sensor specification is stated separately as100PSI.
Is this the 14bar Legacy model?
No. L25-OP4-LEG is 7bar. The 14bar model is a different code.
Do I need to product description all wiring separately?
The listed details include a sensor cable and 3-foot power/lighting harness; verify the package inventory before installation.
Browse Automotive Service Tools > Gauges & Meters to compare other options.
