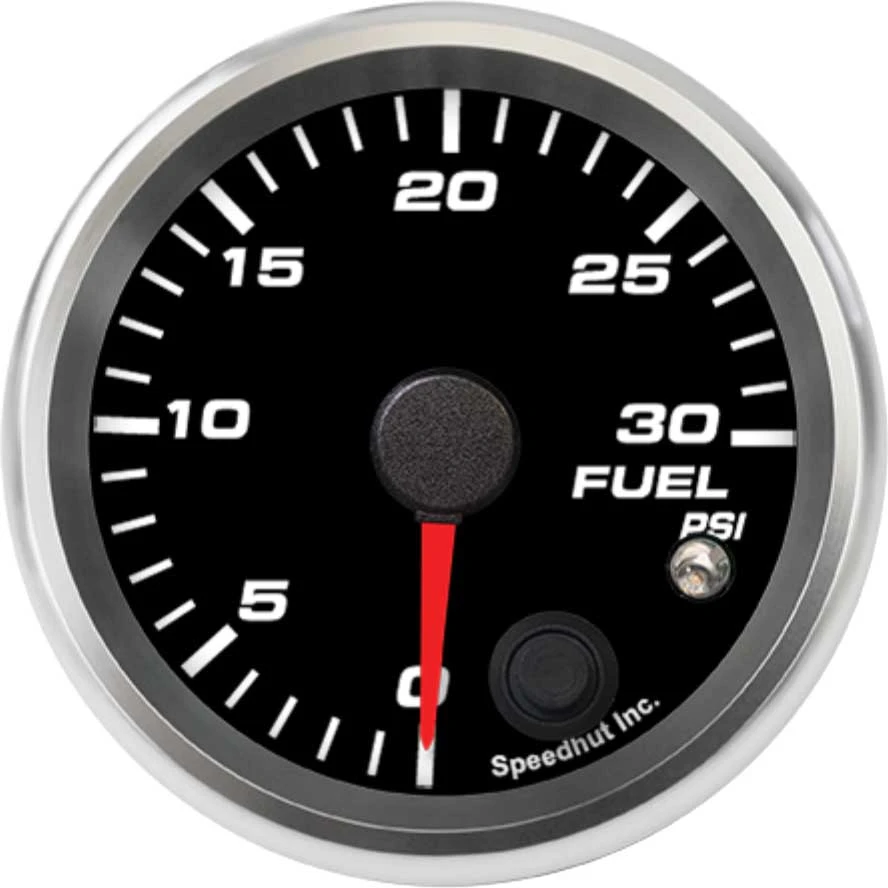

Speedhut R25-FP2-REV Fuel Gauge, 0–30PSI with Warning
Speedhut R25-FP2-REV is the larger Revolution fuel gauge with a 30PSI display. Its listed sender matches that range, while the user-settable warning is a separate function that needs settings appropriate to the fuel system.
Specifications and included details
- Fuel-pressure display: 0–30PSI.
- 2-5/8-inch nominal size; 2.67-inch opening listed.
- 30PSI three-wire sensor; 1/8-inch NPT connection described.
- Signal and 3-foot power/lighting harnesses; spin-lock mounting described.
Before ordering
Verify the actual sender connection and fuel suitability, rear clearance and the model's warning instructions. NPT must match the port or a suitable adapter. Do not copy a generic button sequence or assume the gauge regulates fuel pressure.
Product questions and answers
What thread is described for the sender?
The product details identify 1/8-inch NPT. Verify the received sensor and port before selecting an adapter.
How does it differ from the compact R2-FP2-REV?
Both display 0–30PSI, but this R25 version is nominally 2-5/8 inches with a listed 2.67-inch opening.
Is the alarm threshold a universal safe pressure?
No. Set it from the system requirements using the exact gauge instructions.
Browse Automotive Service Tools > Gauges & Meters to compare other options.
