Speedhut L25-FP6-LEG 2-5/8in Fuel Gauge, 0–2 Bar
Speedhut L25-FP6-LEG is the larger alternative for buyers who want a low-range fuel-pressure display in bar. It keeps the 0–2 bar scale of the compact L2-FP6-LEG while requiring a different mounting opening.
Specifications and included details

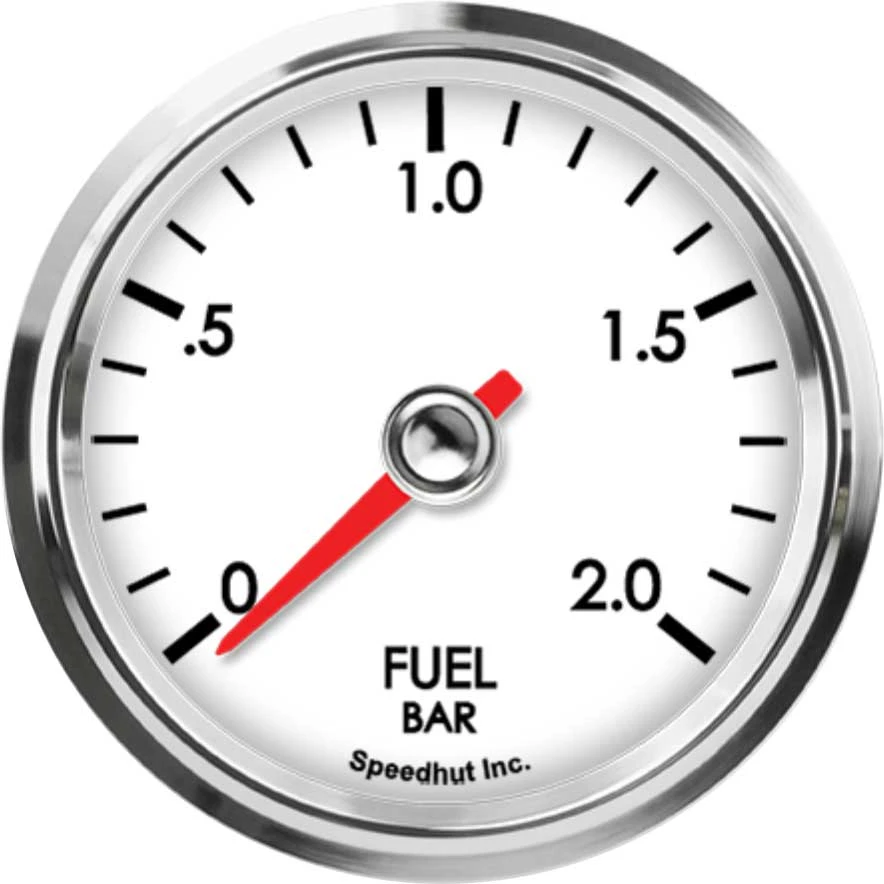

- Metric fuel-pressure display: 0–2.0 bar.
- 2-5/8-inch nominal size; listed opening: 2.67 inches.
- 30PSI three-wire pressure sensor listed.
- Pressure wiring harness and 3-foot power/lighting harness listed.
Before ordering
Measure the actual panel opening and rear space, then confirm operating pressure, sender port and fuel suitability. The details do not establish a dimming feature or compatibility with every fuel system; follow the model-specific wiring documentation.
Product questions and answers
What is the difference from the L2-FP6-LEG?
This L25 gauge is nominally 2-5/8 inches with a listed 2.67-inch opening. The compact L2 version lists 2-1/16 inches and a 2.062-inch opening.
Does 30PSI mean the dial is in PSI?
No. The dial reads 0–2 bar; 30PSI identifies the listed sensor.
Are connection adapters specified?
The package names the sensor and electrical harnesses but does not establish a complete fuel-line adapter set. Confirm your port and required fittings.
Browse Automotive Service Tools > Gauges & Meters to compare other options.
