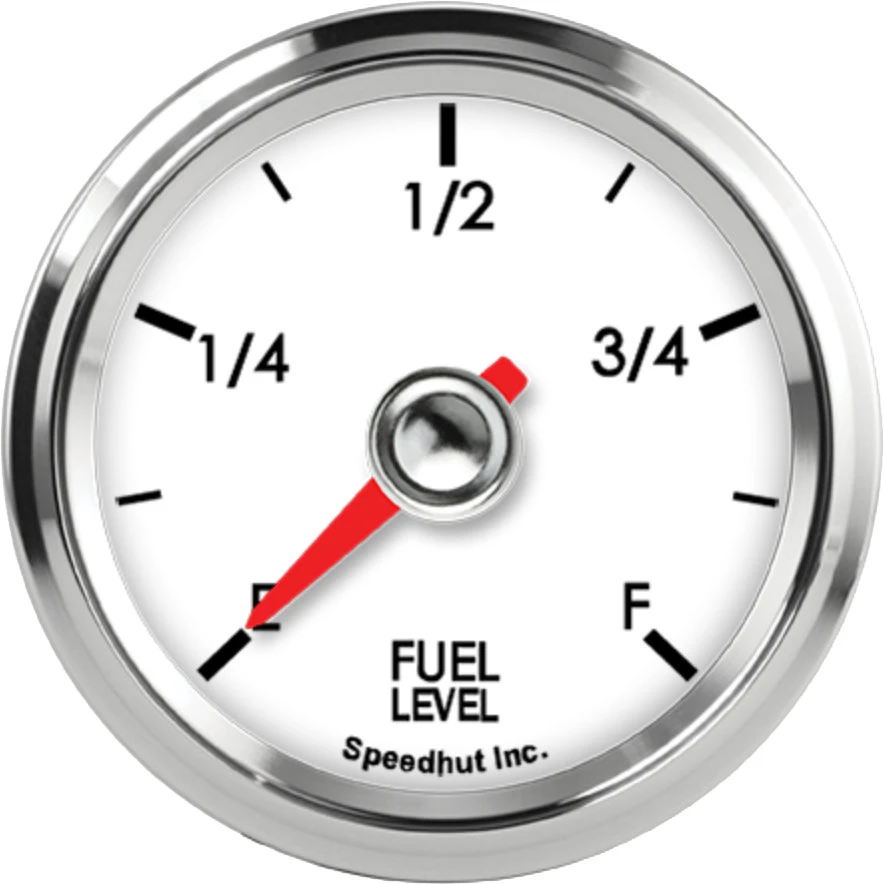

Speedhut 2-1/16" Programmable Fuel Level Gauge (L2-FL1-LEG)
The Speedhut 2-1/16" Programmable Fuel Level Gauge (L2-FL1-LEG) offers a precise and reliable way to monitor your vehicle's fuel status. Designed for broad compatibility, this gauge can be programmed to work seamlessly with most fuel level sending units that operate at 300 ohms or less. Its classic design ensures it integrates well with a variety of dashboards, providing essential information at a glance. Installation is straightforward, fitting into a standard 2-1/16 inch (52mm) mounting hole. This gauge is a practical solution for ensuring you always know your fuel level.
KEY FEATURES AND BENEFITS:
Programmable Compatibility: Works with a wide range of fuel level sensors up to 300 ohms, offering flexibility for various vehicle setups.
Accurate Readings: Provides reliable fuel level information, helping you avoid unexpected fuel shortages.
Standard Size: The 2-1/16 inch (52mm) diameter ensures easy integration into common gauge mounting locations.
Simple Installation: Designed to fit a 2.05 inch (52mm) hole, making the mounting process convenient.
Complete Wiring Included: Comes with all the necessary wiring harnesses for power, lighting (for LED-lit versions), and connection to the fuel level sensor.
Programming Capability: Includes a programming button to calibrate the gauge to your specific fuel level sensor for accurate readings.
Gauge Type: Fuel Level Gauge
Fuel Level Signal Type: 300 ohms or less
Size: 2 1/16 inch (52mm)
Range: Empty (E) – Full (F)
Hole Size: 2.05 inch (52mm)
Included: 3 ft Power & Lighting Harness, Wiring Harness (2-Wire Cable), Gauge Programming Button
Mount the Gauge: Locate a suitable 2.05 inch (52mm) diameter hole in your dashboard and securely mount the Speedhut fuel level gauge using the provided spin-lock ring (if applicable).
Connect the Wiring:
– Connect the power and lighting harness to a suitable power source and ground in your vehicle's electrical system.
– Connect the 2-wire cable harness to the output terminal of your fuel level sending unit in the fuel tank and to the corresponding terminals on the back of the gauge.
Program the Gauge:
– Ensure your fuel tank is completely empty.
– Press and hold the provided programming button while turning on the vehicle's ignition.
– Release the button when the gauge pointer moves to the "Empty" position. This sets the empty point.
– Fill your fuel tank completely full.
– Press and hold the programming button again until the gauge pointer moves to the "Full" position. Release the button. This sets the full point.
– Turn off the ignition and then turn it back on to verify the calibration. The gauge should now accurately reflect the fuel level in your tank.
BENEFITS OF USING THE SPEEDHUT 2-1/16" PROGRAMMABLE FUEL LEVEL GAUGE (L2-FL1-LEG):
Clear Fuel Monitoring: Provides a precise indication of your vehicle's fuel level to help avoid unexpected shortages.
Versatile Compatibility: Programmable to match a variety of fuel level sending units used across different vehicle types.
Easy Setup: Includes necessary wiring and a straightforward installation process for quick dashboard integration.
Reliable Feedback: Offers consistent and accurate readings once programmed to your fuel tank.
Improved Trip Planning: Accurate fuel level readings support better travel and maintenance planning.
Compatible with fuel level sensors of up to 300 ohms resistance.
Fits standard 2-1/16 inch gauge openings.
Displays fuel status clearly from Empty to Full.
Includes all required wires for power, illumination (if applicable), and signal input.
Gauge calibration is performed directly using the included programming button.
Product identification
- Brand: Speedhut
- Model / MPN: L2-FL1-LEG
