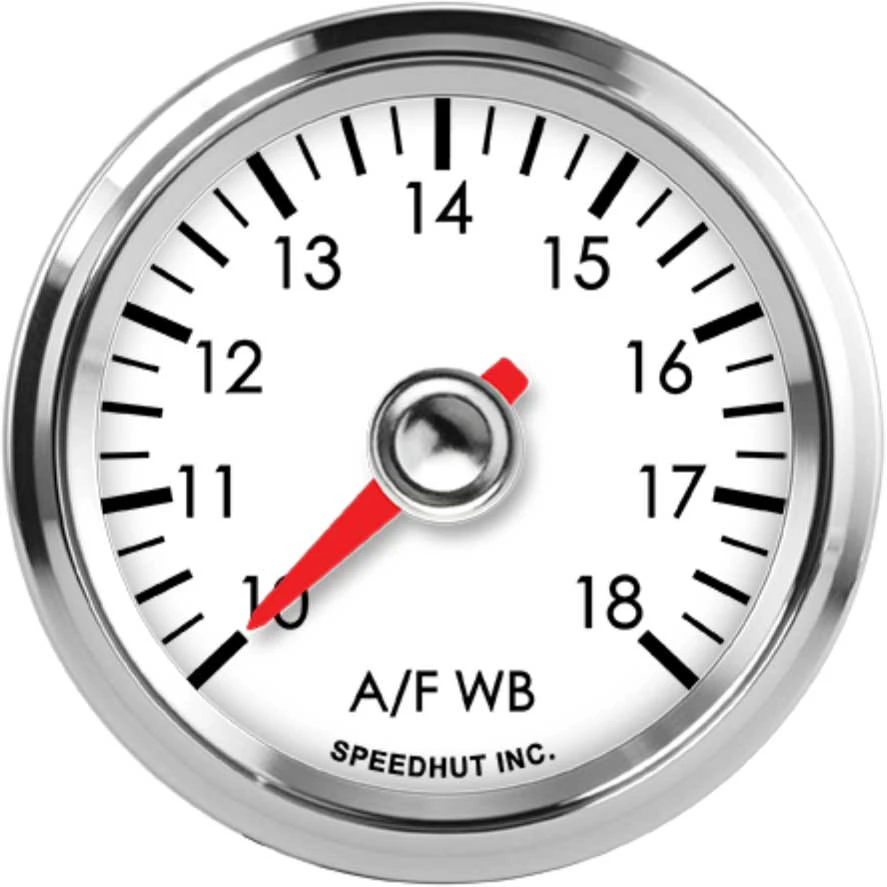

Speedhut 2-1/16" Dyjonet 10-18 Air/Fuel Wide Band Gauge (L2-WB5-LEG)
The Speedhut 2-1/16" Dyjonet 10-18 Air/Fuel Wide Band Gauge (L2-WB5-LEG) is an essential instrument for monitoring your engine's fuel mixture. Designed with a classic aesthetic from the Legacy Series, this analog gauge provides real-time readings of your air/fuel ratio, ranging from 10:1 to 18:1. Specifically engineered for compatibility with the Dynojet Commander 2 wideband controller, this gauge offers a clear and direct display of vital engine data. Its 2 1/16 inch (52mm) size ensures it fits standard gauge pods, making it a versatile addition to various vehicle setups.
KEY FEATURES AND BENEFITS:
Precise Air/Fuel Ratio Monitoring: Accurately displays the air/fuel mixture in a wideband range of 10:1 to 18:1, crucial for performance tuning and engine diagnostics.
Dynojet Commander 2 Compatibility: Specifically designed to work seamlessly with the Dynojet Commander 2 wideband controller, ensuring reliable data transmission.
Clear Analog Display: Offers an easy-to-read analog interface for quick interpretation of air/fuel ratio values.
Standard Size: The 2 1/16 inch (52mm) diameter allows for straightforward installation in common gauge mounting locations.
Illuminated for Night Use: Features LED lighting, ensuring excellent visibility during nighttime driving conditions.
Included Wiring Harnesses: Comes with a 3 ft power and lighting harness and an 8 ft tachometer harness, simplifying the installation process for LED-lit gauges.
Gauge Type: Air/Fuel Gauge
Gauge Subtype: Air/Fuel Wideband Gauge
Controller Compatibility: Dynojet Commander 2
Range: 10:1 – 18:1 AFR
Size: 2 1/16 inch (52mm)
Hole Size: 2.062 inches (52mm)
Input Voltage: 0 volts to 5 volts
3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
8 ft Tachometer Harness – for LED Lit Gauges (1 Wire 2 Pin Connector)
Connect the Power Harness: Attach the 3 ft power and lighting harness to the gauge, ensuring proper polarity. Connect the power and ground wires to a suitable power source in your vehicle.
Connect the Lighting Wire: If desired, connect the lighting wire from the power harness to your vehicle's lighting circuit so the gauge illuminates with your other instruments.
Connect to the Wideband Controller: Using appropriate wiring (not included, as it depends on your Dynojet Commander 2 setup), connect the 0-5 volt output signal from your Dynojet Commander 2 wideband controller to the input of the Speedhut air/fuel ratio gauge. Ensure a secure and correct connection.
Connect the Tachometer Harness (Note): The included 8 ft tachometer harness (1 Wire 2 Pin Connector) is for LED-lit tachometer gauges and is not used for this specific air/fuel wideband gauge.
Mount the Gauge: Insert the gauge into a 2.062 inch (52mm) diameter hole in your desired location and secure it using the appropriate mounting hardware (typically a spin-lock ring).
Verify Readings: Once all connections are made and your vehicle is running, check that the gauge is displaying the air/fuel ratio as reported by your Dynojet Commander 2.
BENEFITS OF USING THE SPEEDHUT 2-1/16" DYJONET 10-18 AIR/FUEL WIDE BAND GAUGE (L2-WB5-LEG):
Provides critical real-time data about your engine's combustion process.
Invaluable for optimizing engine performance and improving fuel efficiency.
Allows informed adjustments to your engine's tuning for optimal operation.
Leads to increased power output and better throttle response.
Potentially extends the life of your engine by preventing lean conditions that can cause overheating and damage.
Direct compatibility with the Dynojet Commander 2 simplifies integration into existing performance setups.
Analog Display: Provides a traditional and easily understandable visual representation of the air/fuel ratio.
Wide Measurement Range (10:1 – 18:1): Offers a broad spectrum of readings essential for monitoring various engine operating conditions, from rich to lean mixtures.
Designed for Dynojet Commander 2: Ensures seamless integration and accurate data interpretation when used with this specific wideband controller.
Standard 2 1/16" (52mm) Size: Facilitates installation in most aftermarket gauge pods and dashboard locations.
LED Backlighting: Enhances visibility during nighttime or low-light conditions for continuous monitoring.
Product identification
- Brand: Speedhut
- Model / MPN: L2-WB5-LEG
