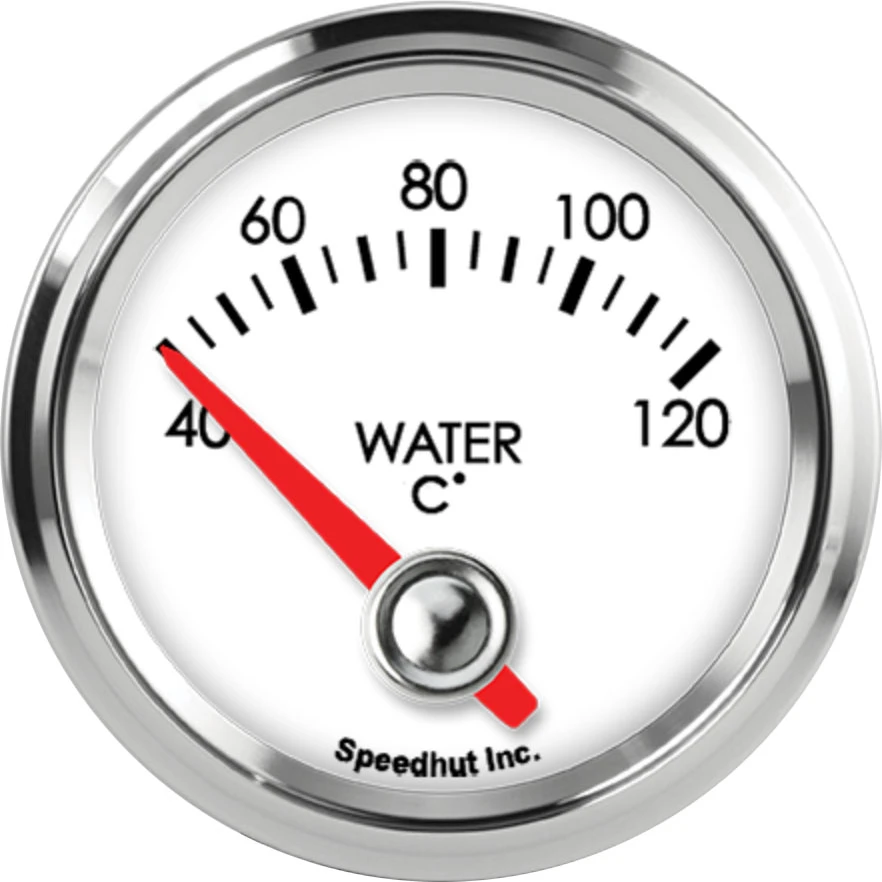

Speedhut 2-1/16" 40-120C Water Temp Gauge – 90° Sweep (L2-WT4-LEG)
The Speedhut 2-1/16" 40-120C Water Temp Gauge – 90° Sweep (L2-WT4-LEG) is an essential instrument for monitoring your vehicle's engine coolant temperature. This metric gauge provides accurate readings within a range of 40 to 120 degrees Celsius, allowing you to stay informed about your engine's operating conditions and prevent potential overheating issues. Its classic design integrates seamlessly with a variety of dashboards, offering both functionality and a timeless aesthetic.
KEY FEATURES AND BENEFITS:
Precise Temperature Monitoring: Accurately displays coolant temperature between 40°C and 120°C, providing vital information about engine health.
Metric Measurement: Clearly presents temperature readings in Celsius, the standard metric unit.
Optimal Viewing: The 2-1/16" (52mm) gauge size ensures easy readability, and the 90-degree sweep allows for quick and clear interpretation of temperature changes.
Enhanced Night Visibility: Integrated LED illumination ensures excellent visibility of the gauge face during nighttime driving conditions.
Reliable Sensor: Includes a high-performance 2-wire temperature sender, designed for accurate and responsive temperature readings.
Complete Wiring Solution: Ships with all necessary wiring harnesses, simplifying the installation process. This includes a power and lighting harness and a dedicated temperature gauge wiring cable.
Standard Fitment: The 2-1/16" diameter and 2.062" (52mm) hole size make it compatible with standard gauge openings.
Easy Installation: Designed for straightforward installation with the included components.
Gauge Type: Temperature Gauge
Gauge Subtype: Water Temperature Gauge
Temperature Range: 40-120 degrees Celsius
Gauge Size: 2 1/16 inch (52mm)
Hole Size: 2.062 inches (52mm)
Measurement System: Metric
Sweep Angle: 90 Degrees
3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
Speedhut Temperature Sensor (2-Wire Performance Type)
Temperature Gauge Wiring Harness (2-Wire Cable)
Mount the Gauge: Carefully insert the 2-1/16" gauge into a compatible 2.062" (52mm) opening in your dashboard or instrument panel. Secure it using the appropriate mounting hardware (not explicitly included, may vary depending on installation).
Connect the Power and Lighting Harness: Attach the 3 ft power and lighting harness to the designated terminals on the back of the gauge. Connect the power wire to a 12V power source that is switched with the ignition. Connect the ground wire to a suitable ground point on the vehicle's chassis. The lighting wire should be connected to your vehicle's lighting circuit if you desire the gauge to illuminate with your headlights.
Install the Temperature Sensor: Locate a suitable port in your engine's coolant system (typically on the engine block or thermostat housing) with a compatible thread size for the included Speedhut temperature sensor. Install the sensor securely.
Connect the Sensor Wiring Harness: Connect one end of the 2-wire temperature gauge wiring harness to the terminals on the Speedhut temperature sensor. Connect the other end of the harness to the corresponding terminals on the back of the water temperature gauge. Ensure a secure and correct connection.
Test the Gauge: With all connections made, turn on your vehicle's ignition. The gauge should power on, and the pointer should indicate the current coolant temperature. Verify that the LED illumination activates when the vehicle's lights are turned on.
BENEFITS OF USING THE SPEEDHUT 2-1/16" 40-120C WATER TEMP GAUGE – 90° SWEEP (L2-WT4-LEG):
Early Overheat Detection: Provides a clear and immediate indication of rising coolant temperatures, allowing you to take preventative measures before serious engine damage occurs.
Ensures Optimal Engine Performance: By monitoring coolant temperature, you can ensure your engine is operating within its ideal temperature range for optimal efficiency and longevity.
Easy Monitoring: The clear metric display and 90-degree sweep make it simple to quickly assess your engine's temperature while driving.
Enhanced Safety: By providing crucial information about engine condition, the gauge contributes to safer vehicle operation.
Classic Aesthetic Integration: The timeless design complements a wide range of vehicle interiors, particularly those with a classic or retro style.
Reliable Performance: The included high-performance temperature sender ensures accurate and responsive readings you can depend on.
Simplified Installation: The inclusion of all necessary wiring harnesses streamlines the installation process, saving time and effort.
Displays temperature readings in Celsius from 40 to 120 degrees.
Compact 2-1/16" (52mm) diameter for versatile mounting options.
Requires a standard 2.062" (52mm) mounting hole.
Utilizes a high-performance 2-wire temperature sensing unit for accurate data.
Features a 90-degree pointer movement for easy-to-read temperature changes.
Equipped with LED backlighting for excellent nighttime visibility.
Includes a dedicated 3 ft power and lighting connection cable.
Comes with a specific wiring harness for the temperature sensor connection.
Designed with a classic aesthetic to suit various interior styles.
Provides real-time feedback on engine coolant temperature.
Product identification
- Brand: Speedhut
- Model / MPN: L2-WT4-LEG
