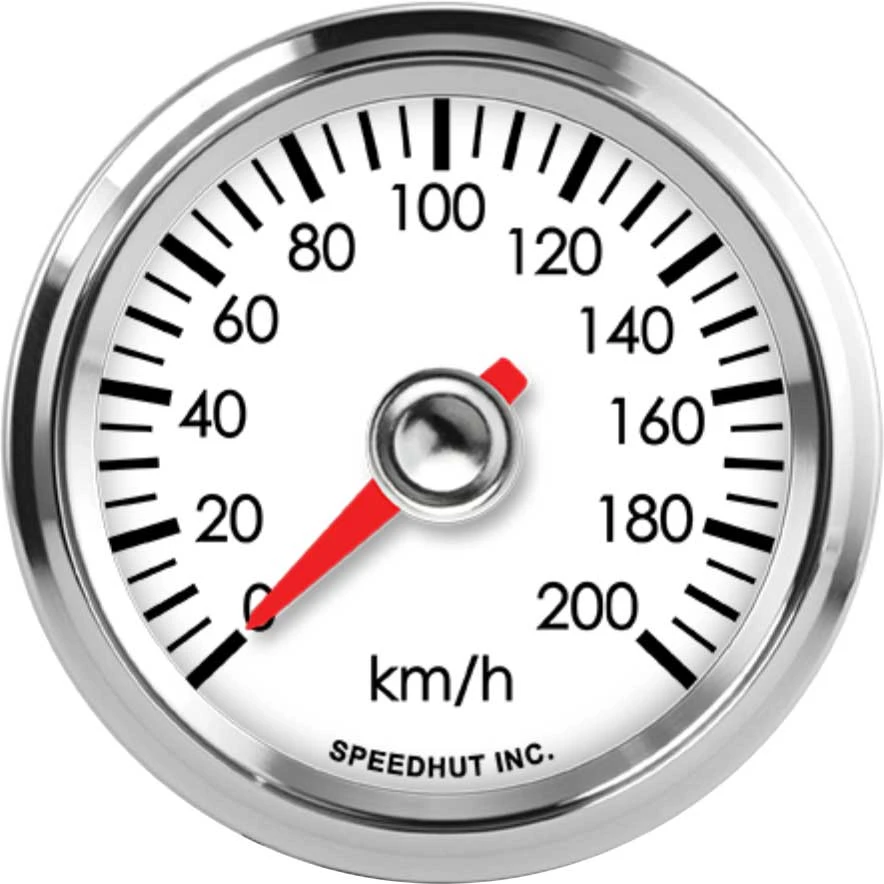

Speedhut 2-1/16" 200 km/h GPS Speedometer (R2-S2-LEG)
The Speedhut 2-1/16" 200 km/h GPS Speedometer (R2-S2-LEG) offers a straightforward and highly accurate solution for displaying your vehicle's speed. Utilizing advanced GPS technology, this gauge eliminates the complexities associated with traditional speed sensors, providing a clean and simple installation process. Designed for performance enthusiasts and everyday drivers alike, it delivers reliable speed readings without the need for intricate calibration. Its robust construction and user-friendly design make it a valuable addition to any vehicle.
KEY FEATURES AND BENEFITS:
Pinpoint Accuracy: Provides precise speed readings using an internal microprocessor and GPS technology.
Simple Installation: Simplifies installation with a 12V power connection and a waterproof GPS antenna.
Calibration-Free: Eliminates the need for calibration, such as inputting tire sizes or gear ratios.
Global Operation: Operates globally using free GPS technology without any subscription fees.
Uncluttered Setup: Offers a clean and uncluttered setup by removing the need for mechanical cables or wheel speed sensors.
Responsive Readings: Ensures accurate pointer movement in all driving conditions thanks to a high torque stepper motor.
Gauge Type: Speedometer
Speedometer Signal Type: GPS
Range: 0-200 KM/H
Size: 2 1/16 inch (52mm)
Hole Size: 2.062 inches (52mm)
Standard or Metric: Metric
Gauge Mounting Ring: Included
GPS Antenna with 9.8 ft long cable and male SMA connector
3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
Mount the Gauge: Secure the Speedhut GPS Speedometer in a 2 1/16" (52mm) diameter hole using the included spin-lock ring.
Connect Power: Connect the red wire from the provided power harness to a 12V positive power source in your vehicle. Connect the black wire to a suitable ground.
Connect Lighting (Optional): If your gauge has LED lighting, connect the appropriate wire(s) from the power harness to your vehicle's lighting circuit (usually for dimming or illumination with headlights).
Mount the GPS Antenna: Place the waterproof GPS antenna in a location with a clear view of the sky. This can typically be on the dashboard, roof, or under the rear window. Ensure the mounting surface is clean and secure.
Connect the Antenna: Connect the male SMA connector of the GPS antenna cable to the corresponding connector on the back of the speedometer.
Start Your Vehicle: Once all connections are made, start your vehicle. The speedometer should begin acquiring a GPS signal and will display your speed once a signal is established. No calibration is required.
BENEFITS OF USING THE SPEEDHUT 2-1/16" 200 KM/H GPS SPEEDOMETER (R2-S2-LEG):
Simplified Installation: With only a power connection and GPS antenna to install, it avoids the complexity of routing cables to the transmission or wheels, making it ideal for custom builds or challenging installations.
Calibration-Free: No need to adjust for tire sizes or gear ratios as the GPS technology provides automatic accurate readings.
Global Operability: Functions reliably anywhere in the world, free of subscriptions or additional setup.
Durability: Weather-resistant and built to last, with a billet aluminum bezel for both strength and style.
Easy Mounting: Facilitates easy mounting with its slim case and convenient spin-lock ring.
Enhanced Durability: Adds a touch of style and increased durability with its solid billet aluminum bezel.
Weather Resistant: Offers reliable performance in various weather conditions due to its weather-resistant design.
Quality Craftsmanship: Represents quality craftsmanship as it is proudly made in America.
Product identification
- Brand: Speedhut
- Model / MPN: R2-S2-LEG
