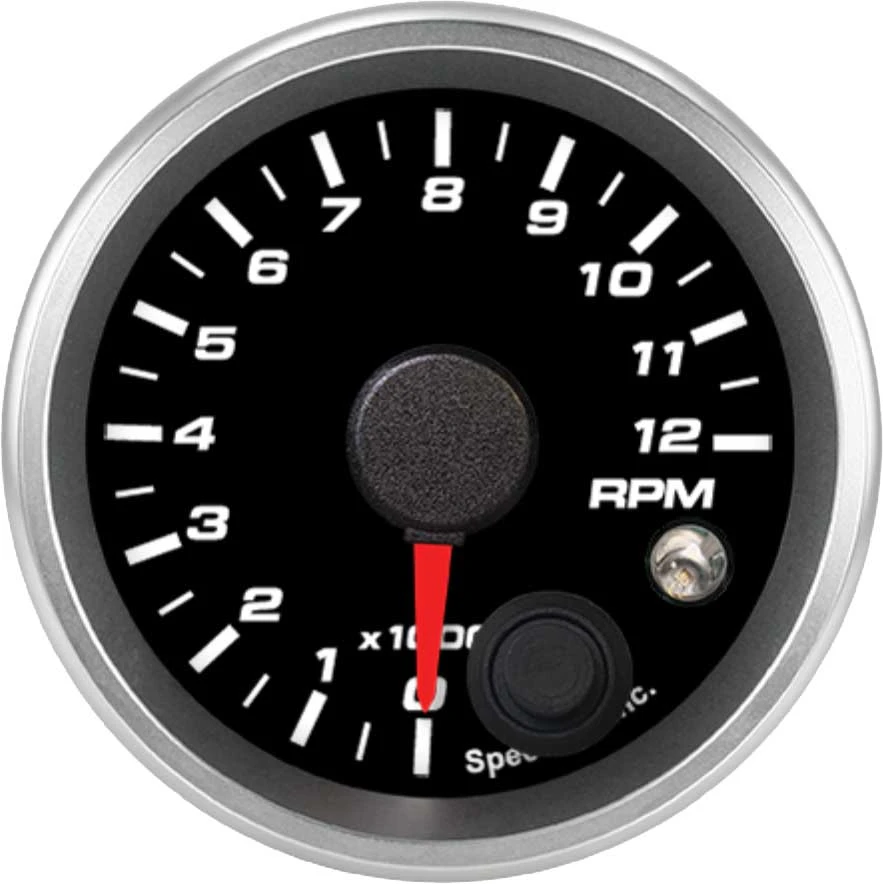

Speedhut 2-1/16" 12K RPM Shift-light Tachometer (R2-TC5-REV)
The Speedhut 2-1/16" 12K RPM Shift-light Tachometer (R2-TC5-REV) offers accurate and immediate engine speed readings for a variety of vehicles. Designed for compatibility with standard spark plug ignition systems on engines with 1 to 12 cylinders, this gauge provides essential information for optimal engine performance and shift timing. Its integrated shift light alerts drivers to ideal shift points, helping to maximize acceleration and prevent over-revving. The gauge's compact 2-1/16 inch (52mm) size makes it suitable for a wide range of mounting locations.
KEY FEATURES AND BENEFITS:
Precise RPM Monitoring: Accurately displays engine speed up to 12,000 RPM, providing crucial data for performance driving and engine health.
Integrated Shift Light: Features an internal shift light that can be set to illuminate at desired RPM thresholds, improving shift timing and performance.
Broad Compatibility: Designed for use with standard spark plug ignition systems on engines with 1 to 12 cylinders, making it versatile for various vehicle types.
Compact Size: The 2-1/16 inch (52mm) gauge diameter allows for easy installation in common gauge pods and mounting locations.
Complete Installation Kit: Ships with all necessary wiring harnesses and a mounting ring for a straightforward installation process.
Gauge Type: Tachometer
Compatibility: 1-12 cylinder standard spark plug ignition systems
Range: 0-12,000 RPM
Size: 2-1/16 inch (52mm)
Hole Size: 2.062 inches (52mm)
Internal Shift Light: Yes
Gauge Mounting Ring: Included
8 ft Tachometer Harness (1 Wire 2 Pin Connector)
3 ft Power & Lighting Harness
Mount the Gauge: Choose a suitable location on your vehicle's dashboard or instrument panel and create a 2.062-inch (52mm) diameter hole. Secure the tachometer in place using the included mounting ring.
Connect the Power and Lighting Harness: Connect the 3 ft Power & Lighting Harness to a 12V power source, ground, and your vehicle's lighting circuit (if you desire the gauge to illuminate with your headlights).
Connect the Tachometer Signal Harness: Connect the 8 ft Tachometer Harness. One wire will connect to the negative (-) side of your coil or the designated tachometer output signal wire from your vehicle's ECU (refer to your vehicle's wiring diagram).
Ground the Tachometer: Ensure a good ground connection for both harnesses.
Set the Shift Light (if applicable): Follow the manufacturer's instructions (which would typically be included with the product) to set the desired RPM point for the internal shift light to activate. This usually involves a configuration process using buttons or dials on the gauge.
Test the Gauge: Start your engine and observe the tachometer reading to ensure it is functioning correctly. Verify that the shift light illuminates at the set RPM.
BENEFITS OF USING THE SPEEDHUT 2-1/16" 12K RPM SHIFT-LIGHT TACHOMETER (R2-TC5-REV):
Provides drivers with critical real-time information about their engine's performance.
Accurate RPM readings help prevent engine damage from over-revving.
Integrated shift light enables consistent and precise gear changes.
Improves acceleration and may contribute to better fuel efficiency.
Compact design allows installation in tight interior spaces.
Includes complete wiring and mounting hardware for easy installation.
Suitable for both DIY users and professional installers.
Clear and easy-to-read analog display for immediate RPM information.
Internal shift light provides a visual cue for optimal gear changes.
Designed to work seamlessly with standard spark plug ignition systems found in a wide array of vehicles.
Compact 2-1/16" (52mm) size offers installation flexibility.
Comes complete with necessary wiring harnesses for power, lighting, and RPM signal connection.
Mounting ring included for secure and straightforward installation.
Provides accurate engine speed data up to 12,000 revolutions per minute.
Helps drivers optimize shift points for enhanced performance.
Contributes to preventing potential engine damage from exceeding RPM limits.
Product identification
- Brand: Speedhut
- Model / MPN: R2-TC5-REV
