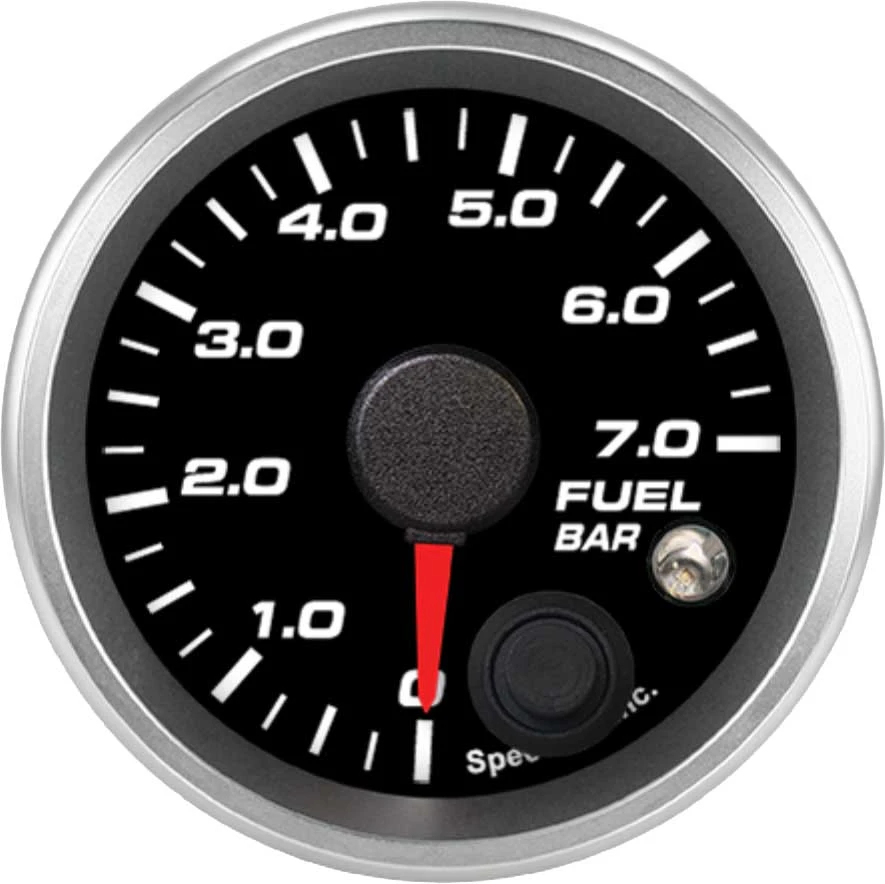

Speedhut R2-FP7-REV Fuel Gauge, 0–7 Bar with Warning
Speedhut R2-FP7-REV uses a 0–7bar fuel-pressure face with a listed 100PSI sensor. The listing also gives that sensor range as approximately 6.89bar, so compare the matched gauge/sender documentation rather than interpreting the rounded scale endpoint as extra system capacity.
Specifications and included details
- Fuel dial: 0–7.0bar.
- 100PSI three-wire sensor listed.
- 2-1/16-inch nominal diameter; opening: 2.062 inches.
- Warning indication and signal/power harnesses described.
Before ordering
Verify the manufacturer-approved sender match, actual system pressure and fuel compatibility. The product details's typical thread wording does not establish an exact thread for this package. Confirm the port, fittings and model-specific warning controls before installation.
Product questions and answers
Is the sender specification also written in bar?
The details state100PSI, approximately 6.89bar. Keep that specification separate from the rounded7bar dial endpoint.
Is 1/8NPT confirmed for this exact package?
The supplied instructions use typical wording rather than an exact package specification. Verify the actual sensor thread before ordering fittings.
Does the warning control fuel pressure?
No automatic regulation is established. It is a warning display requiring the correct settings and response.
