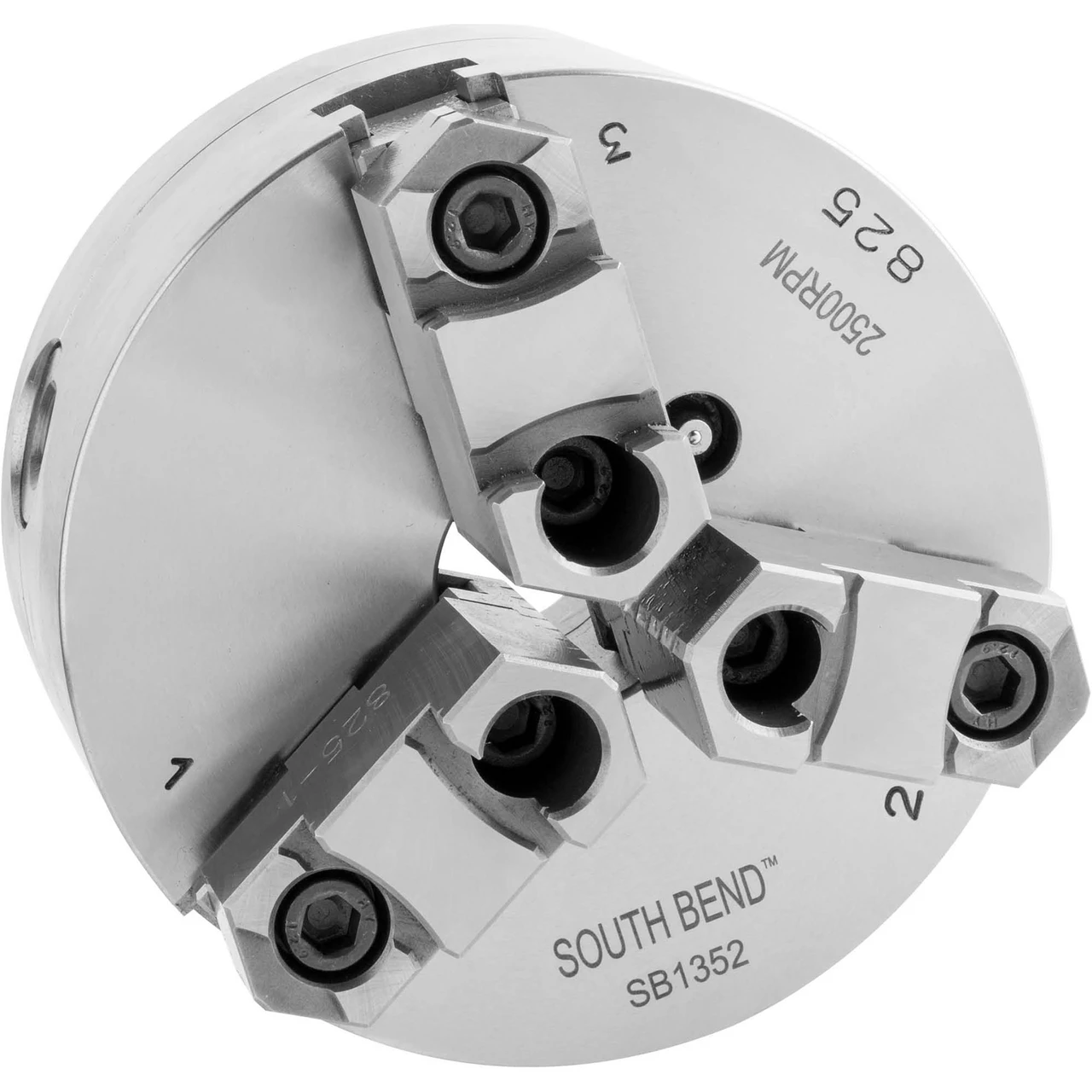

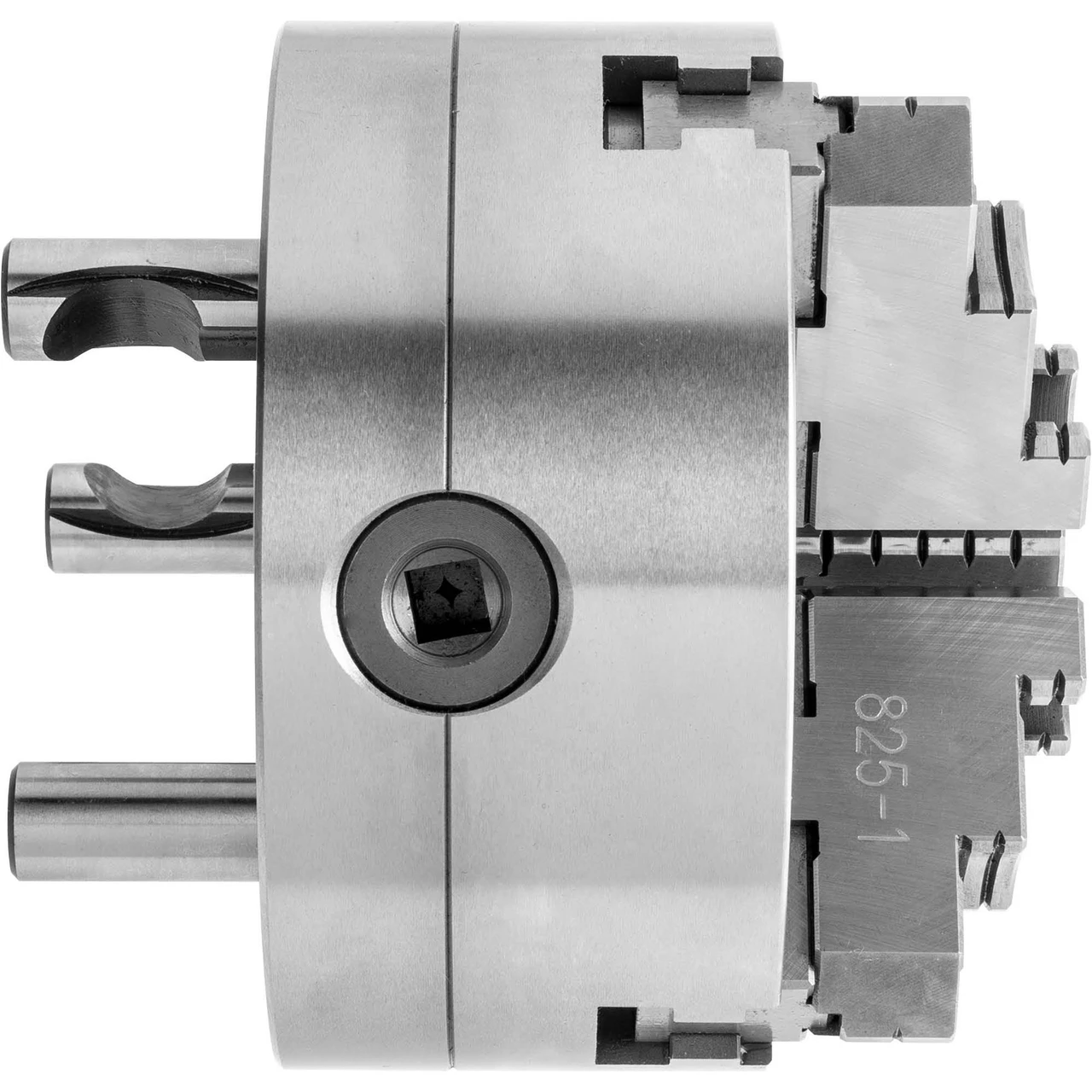

South Bend 5" 3 Jaw Chuck with Direct D1-3 Mount (SB1352)
South Bend 5" 3-Jaw Chuck D1-3 (SB1352) is engineered for high-precision machining, offering reliable and precise clamping in a compact design. This 3-jaw chuck features a direct-mount D1-3 camlock system, reducing setup time by eliminating the need for a back plate.
Specifications and Dimensions
Outer Diameter: 4.92"
Bore Diameter: 1.26"
Outer Diameter Clamping Range: 0.12" – 4.65"
Inner Diameter Clamping Range: 1.78" – 4.61"
Maximum Speed: 2500 RPM
Chuck Jaw 5/16" Cap Screw Torque: 14.5 ft/lbs
Rear Chuck M8 Cap Screw Torque: 28 ft/lbs
Maximum Chuck Key Torque: 47 ft/lbs
Static Clamping Force: 3370 lbs
Key Features and Benefits
Fine-grain cast iron construction for durability and stability

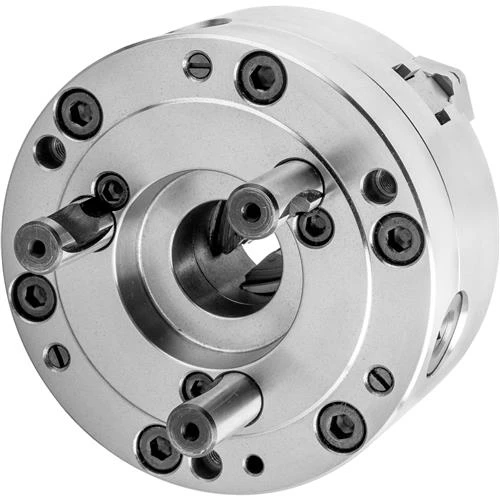

Direct-mount D1-3 design reduces setup time
Two-piece jaws allow quick internal/external clamping adjustments
Three reversible top jaws for expanded work-holding options
Threaded pinion retaining pins for secure operation
Product identification
- Brand: South Bend
- Model / MPN: SB1352
