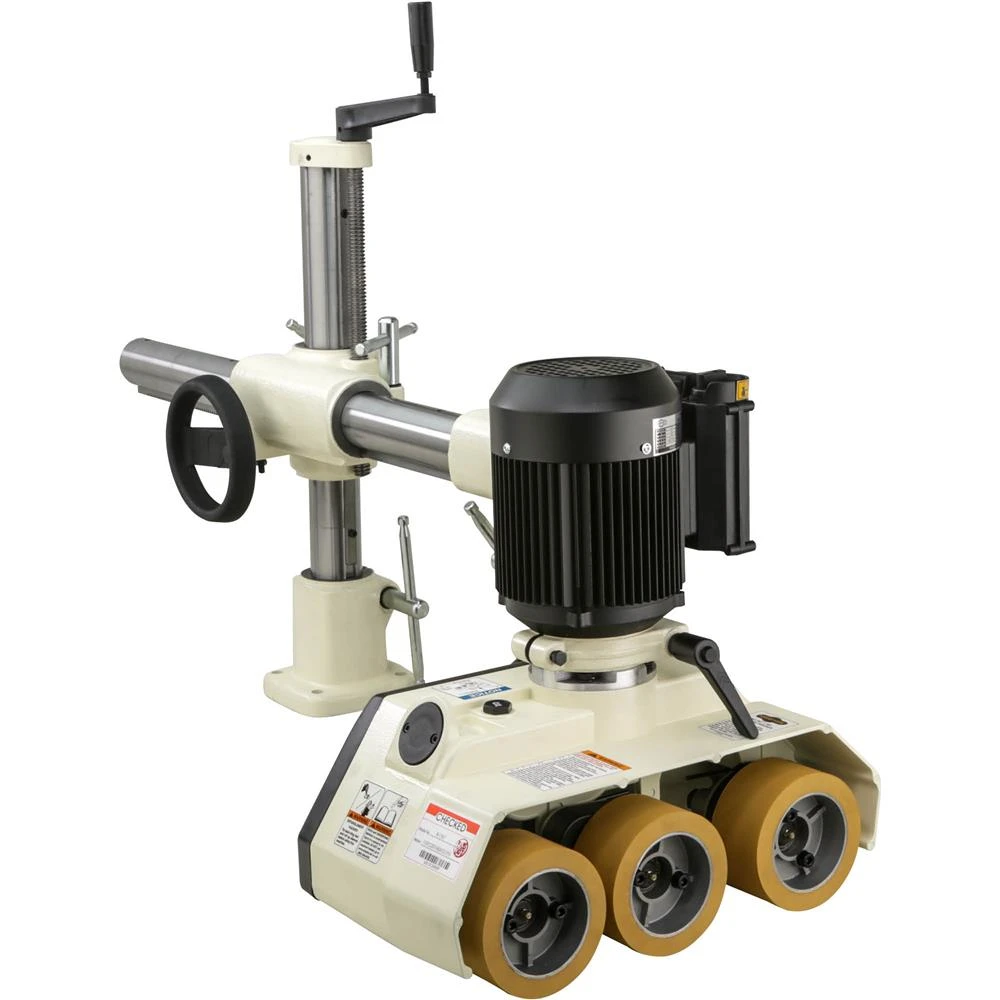

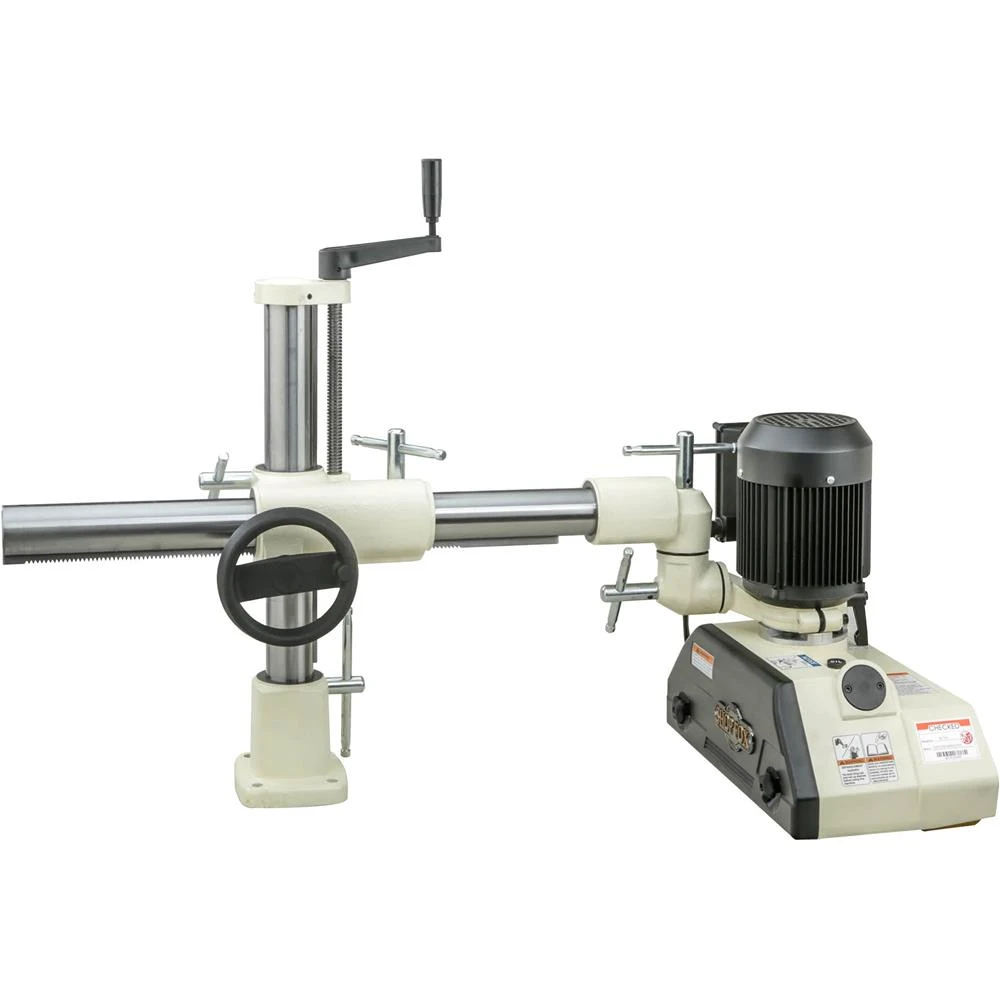

Shop Fox 1 HP Power Feeder with XYZ Adjustment Multiple Feed Speeds (W1767)
Shop Fox 1 HP Power Feeder with XYZ Adjustment Multiple Feed Speeds Forward and Reverse (W1767) is designed to make milling and ripping longer or wider stock easy, accurate, and safe. Featuring a 1 HP motor with multiple feed speeds, this feeder allows you to adjust the feed rate for optimal control.
Specifications and Dimensions
Motor: 1 HP, 220V, 4.2A
Speeds: 13, 26, 33, 66 FPM
Wheels: 3, synthetic rubber, 2-3/8"W x 4-3/4" Dia.
Rotation: forward & reverse
X Y Z adjustment
Max. height of rollers: 8-1/2"
Rack-and-pinion horizontal adjustment
Vertical movement: 9-7/8"
Horizontal movement: 18-1/8"
Key Features and Benefits
1 HP motor for robust performance
Multiple feed speeds for precise control
Forward and reverse rotation for versatility
XYZ adjustment for accurate positioning
Synthetic rubber wheels for optimal grip
Rack-and-pinion horizontal adjustment for ease of use
Product identification
- Brand: Shop Fox
- Model / MPN: W1767
