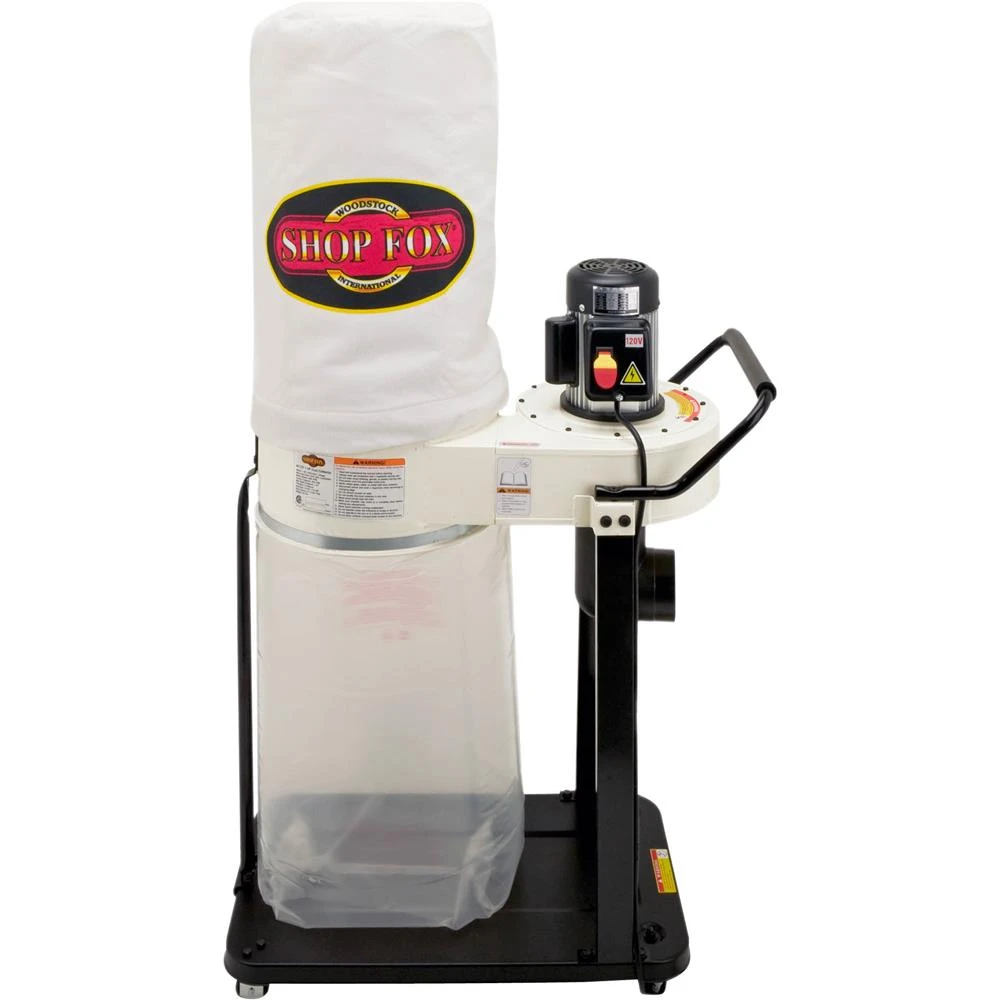

Shop Fox 1 HP Dust Collector 800 CFM Portable Filtration System (W1727)
Shop Fox 1 HP Dust Collector 800 CFM Portable Filtration System 2.5 Micron Bag (W1727) is designed for portability, allowing you to move it from one machine to another as needed. This flexibility eliminates the need for a fixed dust collection system, making it ideal for workshops of all sizes.
Featuring a 1 HP motor and a 9-inch balanced steel impeller, this Shop Fox W1727 1 HP dust collector provides an air suction capacity of 800 CFM. The 2.5-micron filtration bag ensures efficient dust collection, keeping your workspace clean and improving air quality.
Specifications and Dimensions

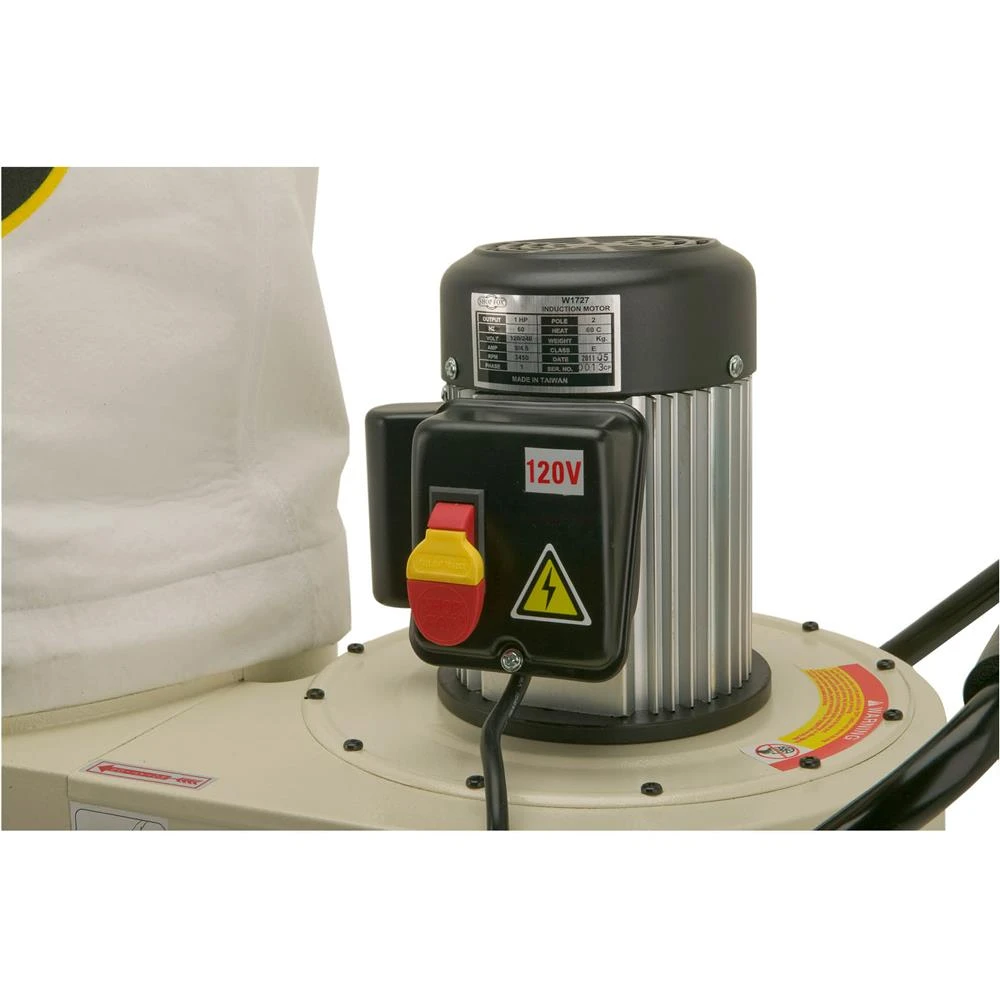

Motor: 1 HP, 110V/220V, single-phase, prewired 110V
Motor amp draw: 9A/4.5A
Air suction capacity: 800 CFM
Static pressure: 5.67"
Number of 4" intake holes: 1
Impeller: 9" balanced steel, radial fin
Bag capacity: 2.1 cubic feet
Portable base size: 15-3/4" x 26"
Bag size (diameter x depth): 14-3/4" x 24-3/8" (2)
Powder-coated finish
Height with bags inflated: 54-1/2"
Standard bag filtration: 2.5 micron
Sound level: 79-81 dB
Key Features and Benefits
Portable design for easy movement between machines.
Efficient dust collection with 2.5-micron filtration.
Powerful 1 HP motor for high suction capacity.
Durable construction with a powder-coated finish.
Product identification
- Brand: Shop Fox
- Model / MPN: W1727
