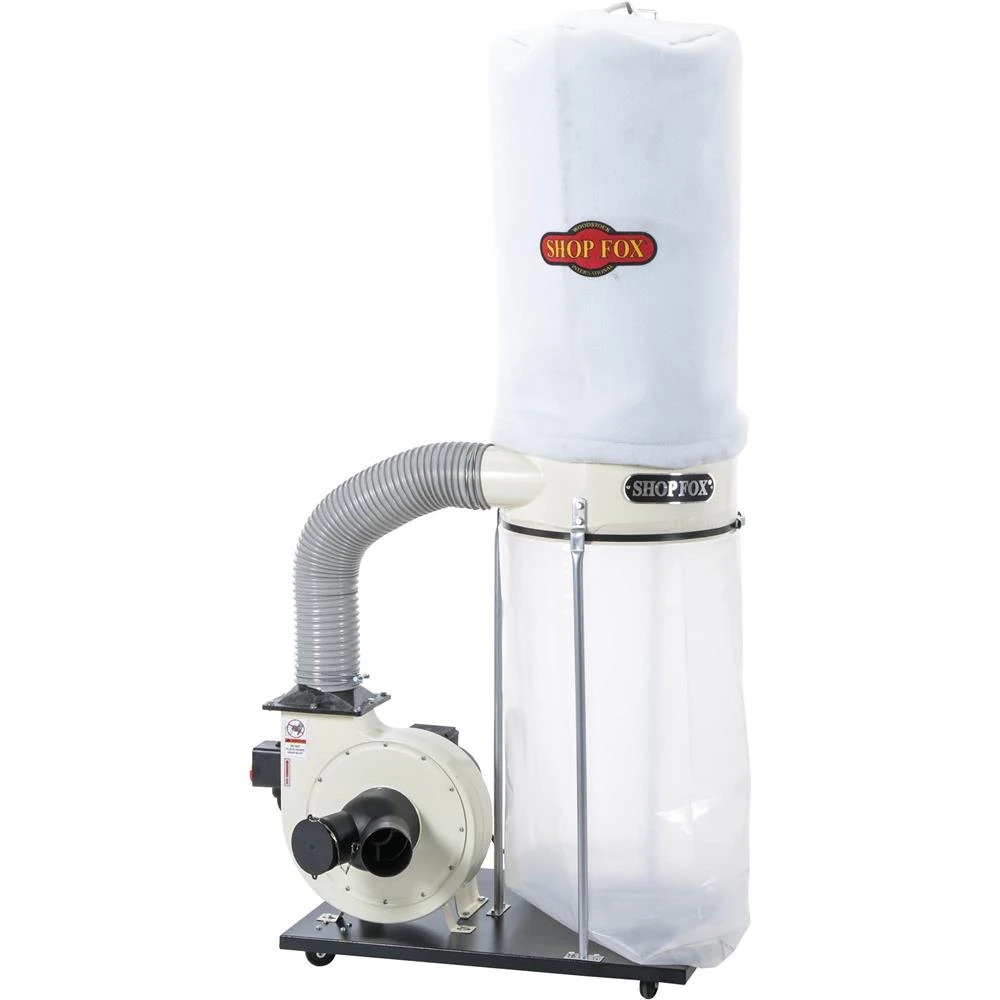

Shop Fox 1-1/2 HP Dust Collector 12-Inch Steel Impeller 1280 CFM (W1685)
Shop Fox 1-1/2 HP Dust Collector 12-Inch Steel Impeller 1280 CFM Filtration System (W1685) features a powerful 1-1/2 HP motor and an extra heavy-duty 12-inch steel impeller, moving 1,280 cubic feet of air per minute. Ideal for wood dust, this dust collector offers outstanding performance and value.

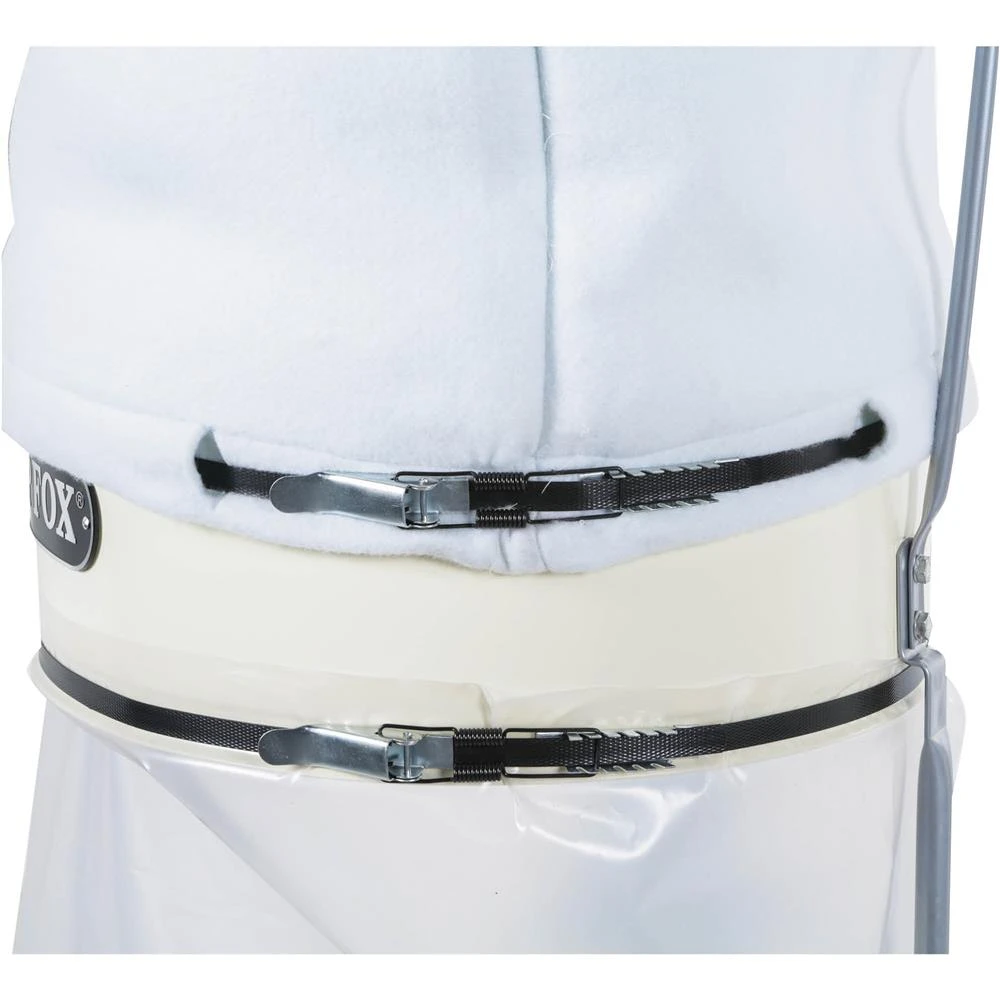

Equipped with a 2.5-micron felt upper filtration bag and a plastic lower collection bag, this Shop Fox W1685 dust collector ensures efficient dust collection and improved air quality in your workshop. The collector's durable construction and effective filtration make it a valuable addition to any woodworking setup.
Specifications and Dimensions
Motor: 1-1/2 HP, 110V, single-phase, 3450 RPM, 16A
Portable base size: 21-1/2" x 33-1/2"
Bag capacity: 5.4 cubic feet
Height (with bags inflated): 78"
Powder-coated finish
Air suction capacity: approx. 1280 CFM
Impeller: 12" balanced steel, radial fin

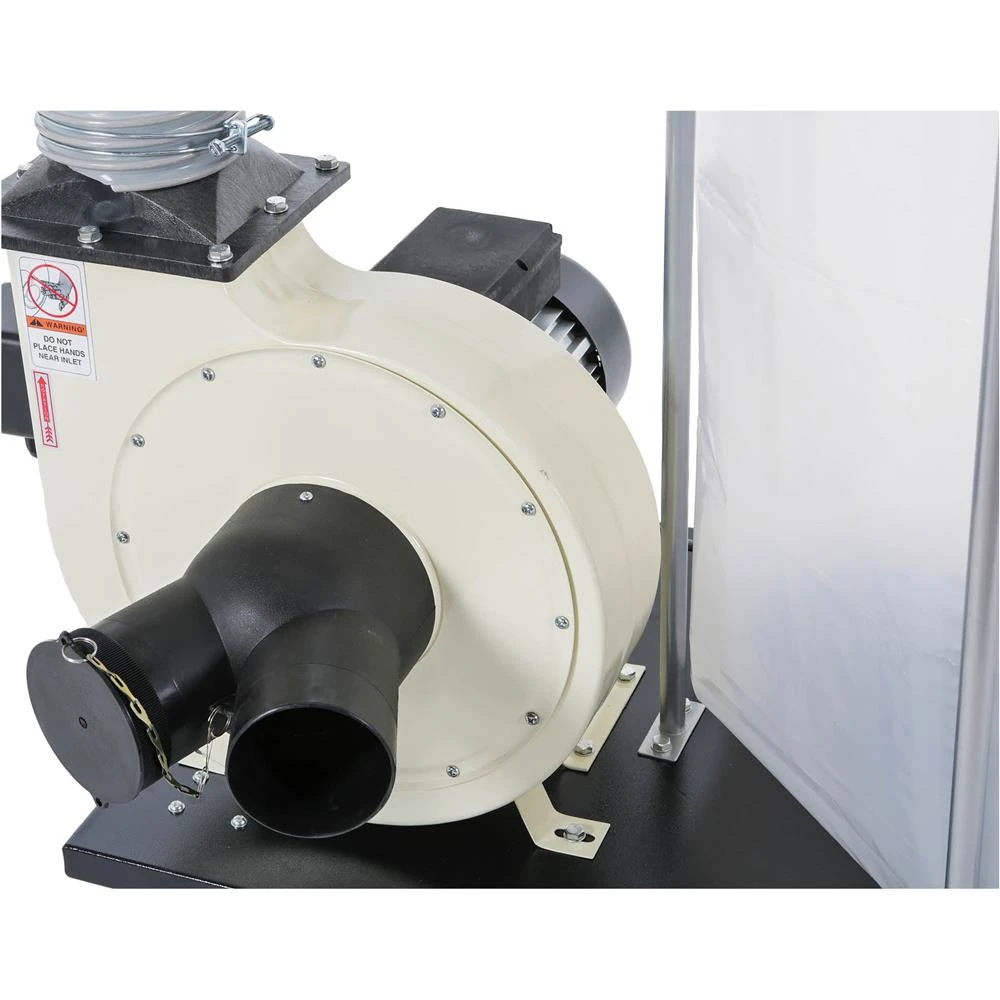

6" inlet with removable "Y" fitting with two 4" openings
Static pressure: 10.1"
Standard bag filtration: 2.5 Micron
Key Features and Benefits
Powerful 1-1/2 HP motor for high suction capacity.
Efficient dust collection with 2.5-micron filtration.
Heavy-duty 12-inch steel impeller for durability.
Portable base for easy movement in the workshop.
Product identification
- Brand: Shop Fox
- Model / MPN: W1685
