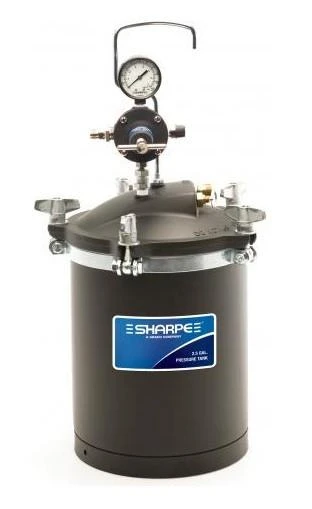

Sharpe 2.5 Gallon Pressure Pot w/ Single Regulator (24A555)
KEY FEATURES AND BENEFITS:
Superior Fluid Flow: The single regulator controls pressure for both the tank and spray gun, ensuring a balanced and uniform spray pattern.
High Transfer Efficiency: Reduces material waste while maintaining consistent application.
Convenient Capacity: 2.5-gallon tank is ideal for small to medium-sized projects without constant refilling.
Durable Construction: Aluminum and steel build ensures long-term reliability in demanding work environments.
Tank Capacity: 2.5 gallons (9.5 L)
Maximum Working Pressure: 50 psi
Pressure Relief Valve Setting: 50 psi
Wetted Parts: Aluminum, Brass, Steel, Buna-n, Polyethylene
Fluid Outlet: 3/8" NPSM (m)
Air Inlet/Outlet: 1/4" NPT (m)
Weight: 11 lbs (5 kg)
Height: 21 inches (533 mm)
Preparation: Ensure the pressure pot and spray gun are clean. Place the included tank liner inside the pot for easier cleanup.
Fill the Pot: Pour coating material into the liner without overfilling. Securely fasten the lid to prevent leaks.
Connect Air Hoses: Attach the main air supply hose to the Air Inlet on the regulator. Connect a separate hose from the Air Outlet to the spray gun’s air inlet.
Pressurize: Slowly turn the regulator knob to build pressure inside the pot. Monitor the gauge to reach desired PSI, typically 5–50 psi depending on material.
Spray: Begin spraying, adjusting fluid and air pressure as needed. The single regulator maintains consistent pressure for both pot and gun.
BENEFITS OF USING SHARPE 2.5 GALLON PRESSURE POT W/ SINGLE REGULATOR (24A555):
Enhanced Efficiency: Pressurized system delivers material faster and more consistently than gravity or siphon-fed systems.
Superior Finish: Controlled flow eliminates pulsing and provides a smooth, professional-grade finish.
Reduced Strain: Eliminates holding a heavy fluid cup, reducing arm fatigue for longer work sessions.
Versatility: Handles thin lacquers, thicker primers, and some adhesives for a variety of applications.
Compact, portable 2.5-gallon capacity tank
Non-ASME compliant design
Built-in pressure gauge for precise control
Safety relief valve set to 50 psi
Lid with secure clamps for a tight seal
Compatible with accessory hoses 7210 and 7220
Product identification
- Brand: Sharpe
- Model / MPN: 24A555
