Spray gun details

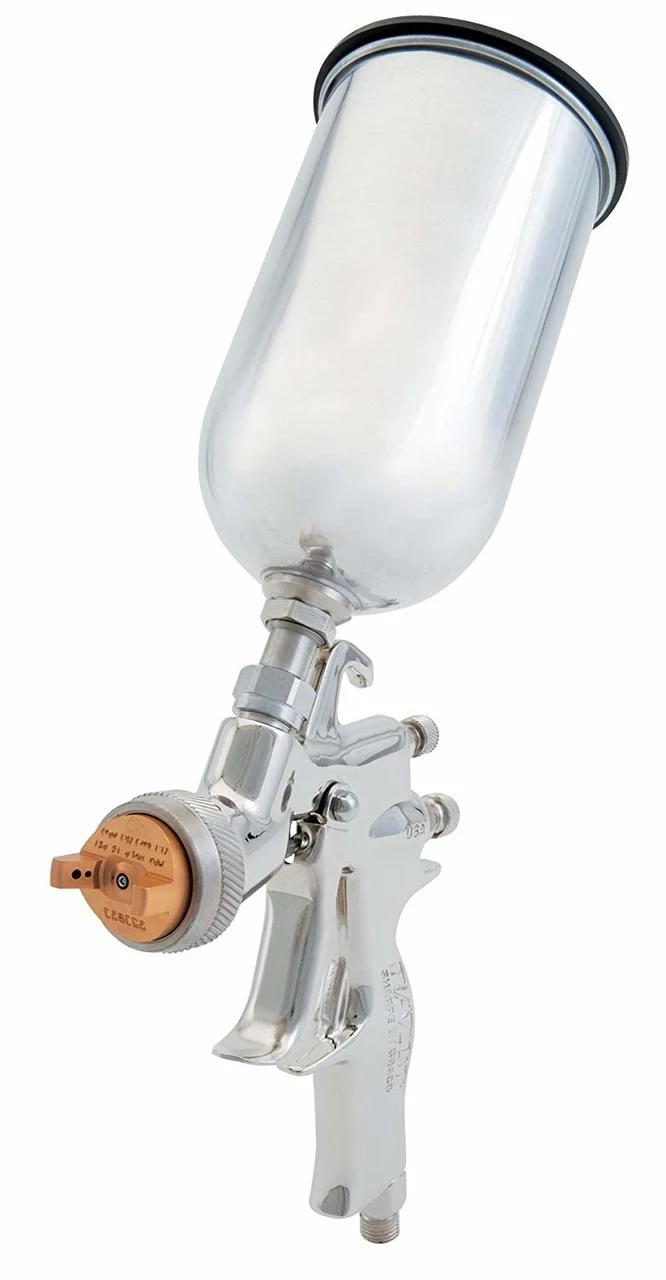

Sharpe 1.5 mm Tip RAZOR LVLP Spray Gun (253429)
The Sharpe 1.5 mm Tip RAZOR LVLP Spray Gun (253429) is a professional-grade painting tool engineered for automotive and industrial finishing. Designed to deliver a fine, well-atomized spray pattern, this gun is highly effective for applying medium to high-viscosity materials such as base coats, clear coats, and enamels. The LVLP (Low Volume, Low Pressure) technology balances excellent atomization with efficient air consumption, making it ideal for body shops and painters using smaller air compressors. Its 100% stainless steel fluid passages ensure compatibility with waterborne paints and long-term durability, while the ergonomic, lightweight design reduces painter fatigue for comfortable, controlled application.
KEY FEATURES AND BENEFITS:
Fine Atomization: LVLP technology ensures a finely atomized spray, producing a smooth, even finish with minimal overspray.
Air and Material Efficiency: Requires lower air volume and pressure, saving on compressed air and reducing paint waste.
Versatile Tip: The 1.5 mm fluid tip is optimized for medium to high-viscosity materials including base and clear coats.
Waterborne Compatible: Stainless steel fluid passages, needle, and nozzle prevent corrosion, making it suitable for modern paint systems.
Ergonomic Design: Lightweight body and low trigger pull reduce hand fatigue for long painting sessions.
Part Number: 253429
Fluid Tip Size: 1.5 mm
Air Consumption: 8.8 CFM at 16 psi
Maximum Air Inlet Pressure: 16 psi (1.1 bar)
Pattern Size: 13 inches
Weight (with cup): 1.3 lb
Air Inlet: 1/4" npsm (R 1/4 – 19)
Preparation: Connect the air hose to the gun’s air inlet. Set your compressor to the recommended 16 psi.
Mixing: Prepare paint according to manufacturer instructions and strain before pouring into the 23 oz gravity cup.
Setup: Attach the gravity cup to the gun. Adjust the fluid control and fan pattern knobs to desired settings.
Testing: Test the spray pattern on scrap material to ensure proper atomization and consistent fan.
Application: Hold the gun perpendicular to the surface at a consistent distance. Maintain smooth, even motion and overlap passes by 50% for uniform coverage.
Cleanup: Disconnect the air supply, empty remaining paint, and clean the gun thoroughly with the appropriate solvent to prevent clogging and maintain performance.
BENEFITS OF USING SHARPE 1.5 MM TIP RAZOR LVLP SPRAY GUN (253429):
Superior Atomization: Produces a fine spray mist for a smooth, high-quality finish, especially on clear coats.
Material and Air Efficiency: LVLP design reduces overspray and material waste while consuming less air.
Reduced Painter Fatigue: Ergonomic, lightweight design allows for comfortable, extended use.
Compatibility: Stainless steel fluid passages, needle, and nozzle are safe for modern waterborne paints.
Easy Maintenance: Nickel-plated body is simple to clean, and parts are readily available for low cost of ownership.
Designed for medium to high-viscosity materials
Optimized for high-quality clear coat finishes
Low trigger pull for smooth operation
Durable stainless steel fluid passages
Ergonomic handle for comfortable grip
Low air consumption for smaller compressors
Nickel-plated finish for easy cleaning
Includes gravity-fed aluminum cup
Product identification
- Brand: Sharpe
- Model / MPN: 253429
