Spray gun details

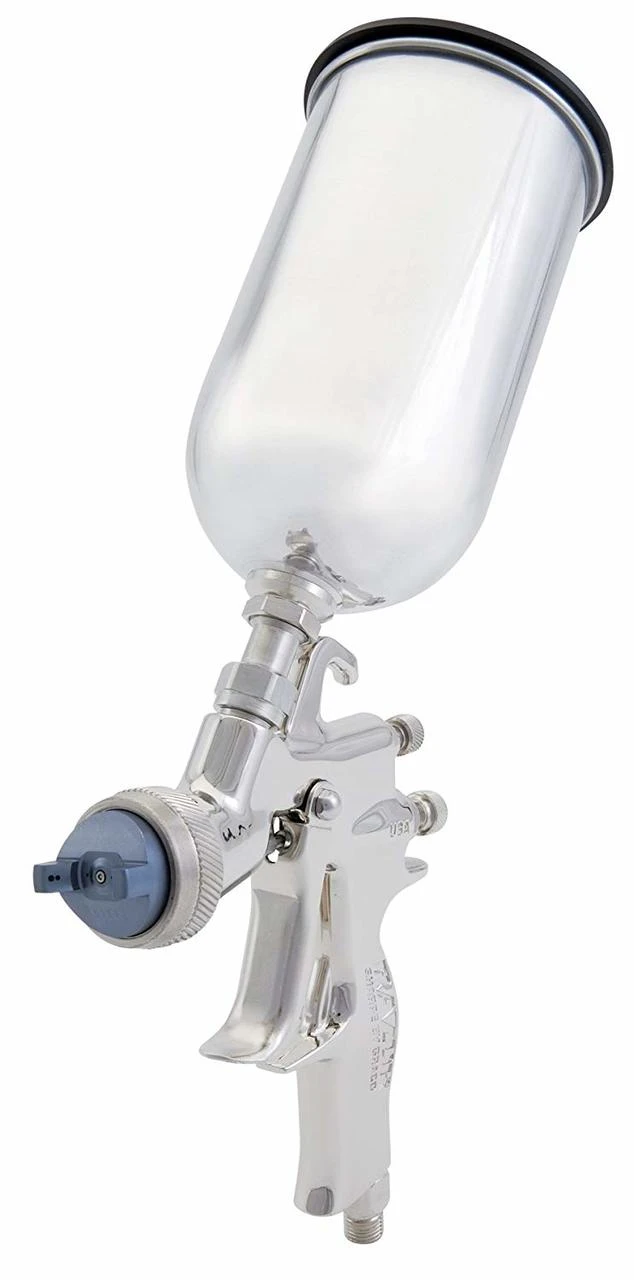

Sharpe 1.4 mm Tip RAZOR Conventional Spray Gun (288281)
The Sharpe 1.4 mm Tip RAZOR Conventional Spray Gun (288281) is engineered for professional painters who demand a superior finish and efficient performance. This gravity-feed spray gun is an excellent choice for applying a variety of materials, including base and clear coats, low solid clear, single stage, and sealers. Built with a focus on durability and user comfort, its high-quality construction and ergonomic design ensure reliable operation and consistent results. The RAZOR spray gun is a trusted tool for achieving a premium finish on automotive and industrial projects.
KEY FEATURES AND BENEFITS:
Precision Tip: 1.4 mm tip size suitable for a wide range of coatings, providing a fast production rate with a high-quality finish.
Durable Construction: 100% stainless steel fluid passages, needle, and nozzle ensure compatibility with waterborne materials.
Easy Cleaning: Nickel-plated body allows for quick and simple maintenance.
Ergonomic Design: Lightweight body and low trigger pull reduce user fatigue for comfortable, extended work sessions.
Wide Coverage: 13-inch fan pattern ensures consistent coverage with each pass.
Model Number: 288281
Fluid Tip Size: 1.4 mm
Air Inlet Size: 1/4" npsm (R 1/4 – 19)
Air Consumption: 13.3 CFM at 43 psi (3.0 bar)
Cup Size: 23 oz (0.68 l)
Weight (with cup): 1.3 lb (0.6 kg)
Finish: Nickel-plated
Pattern Size: 13 inches
Prepare the Gun: Ensure the spray gun is clean and all adjustments (fluid, fan, and air pressure controls) are set to a baseline position.
Mix the Material: Thoroughly mix your paint, clear coat, or sealer according to the manufacturer's instructions. Strain the material to remove any contaminants that could clog the gun.
Fill the Cup: Pour the prepared material into the 23 oz gravity-feed cup. Secure the lid tightly to prevent spills.
Connect to Air: Attach the spray gun to your air compressor line using the 1/4" air inlet. Adjust the air pressure to the recommended 43 psi (3.0 bar).
Adjust the Pattern: Hold the gun about 8-10 inches from a test surface. Adjust the fan pattern control knob to achieve your desired spray pattern, typically a full, even oval.
Apply the Coating: Begin your application by pulling the trigger. Maintain a consistent distance and speed while moving the gun parallel to the surface. Overlap each pass by about 50% to ensure even coverage.
Clean After Use: Immediately after finishing, disconnect the gun and thoroughly clean all components to prevent material from drying inside, which can impact future performance.
BENEFITS OF USING SHARPE 1.4 MM TIP RAZOR CONVENTIONAL SPRAY GUN (288281):
Reliable Performance: Stainless steel construction ensures long-term durability and compatibility with modern waterborne coatings.
User Comfort: Lightweight, balanced design and easy-pull trigger reduce strain during extended use.
Efficient Coverage: 13-inch fan pattern allows for faster, more uniform application on large surfaces.
Easy Maintenance: Durable nickel-plated body simplifies cleaning and preserves the gun's integrity.
Ergonomic Handle and Low Trigger Pull: Ensures user comfort during long sessions.
100% Stainless Steel Components: Fluid passages, needle, and nozzle provide durability and waterborne compatibility.
Polished Aluminum Cup: 23 oz gravity-feed cup included for convenient use.
Nickel-Plated Body: Simple cleaning and corrosion resistance.
Fast Production Rate: Supports efficient work on large projects.
Product identification
- Brand: Sharpe
- Model / MPN: 288281
