Spray gun details

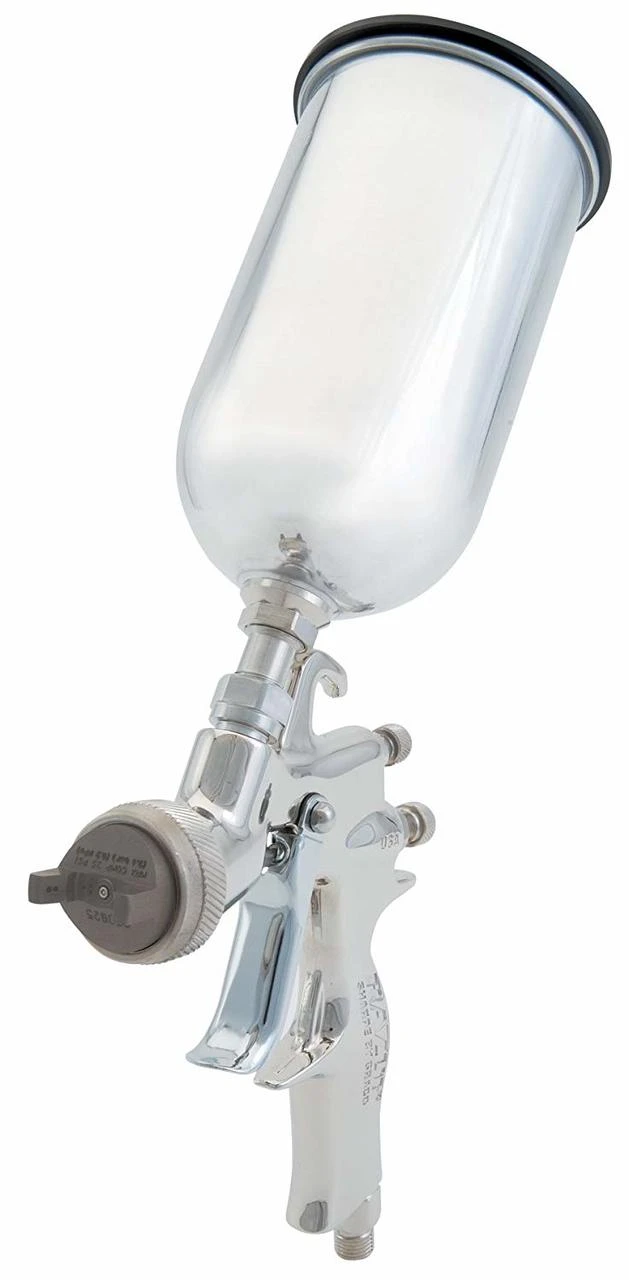

Sharpe 1.4 mm Tip RAZOR Compliant Spray Gun (253443)
The Sharpe 1.4 mm Tip RAZOR Compliant Spray Gun (253443) is a professional-grade tool designed for automotive and industrial painters who demand superior performance and a flawless finish. Part of the advanced RAZOR platform, this compliant spray gun delivers excellent atomization and transfer efficiency, making it ideal for clear coats, base coats, and single-stage materials. With 100% stainless steel fluid passages, it is compatible with modern waterborne paints and resistant to corrosion. Its ergonomic, lightweight design helps reduce painter fatigue while providing precise control and a consistent spray pattern for high-quality results.
KEY FEATURES AND BENEFITS:
Superior Atomization: Provides fine atomization for a smooth, high-quality finish on clear and base coats, minimizing orange peel and texture imperfections.
High Transfer Efficiency: Compliant technology maximizes material transfer, reducing overspray and material waste while meeting environmental regulations.
Corrosion Resistance: 100% stainless steel fluid passages, needle, and nozzle ensure compatibility with waterborne and corrosive paints and simplify cleanup.
Ergonomic Comfort: Lightweight, balanced design with a low-resistance trigger pull reduces hand fatigue for longer, more comfortable work sessions.
Versatile Application: The 1.4 mm tip is ideal for a variety of topcoats, including clear coats, base coats, and single-stage materials.
Part Number: 253443
Nozzle Size: 1.4 mm
Technology: Compliant
Air Consumption: 11.2 CFM
Inlet Pressure: 35 psi (max)
Fan Pattern Size: up to 14 inches
Fluid Passages: 100% stainless steel
Preparation: Ensure the gun is clean. Mix and strain your paint according to manufacturer instructions, then pour into the gravity cup.
Setup and Adjustment: Connect to a regulated air supply. Set air pressure to 35 psi at the gun inlet. Adjust fluid and fan pattern knobs to suit your application.
Application: Hold the gun perpendicular to the surface at 6-8 inches. Start off the panel, move at a steady speed, and release the trigger at the edge. Overlap each pass by 50% for even coverage.
Cleaning: After use, disassemble the air cap and nozzle. Clean all fluid passages and external surfaces with a suitable solvent to maintain consistent performance.
BENEFITS OF USING SHARPE 1.4 MM TIP RAZOR COMPLIANT SPRAY GUN (253443):
Professional-Grade Finish: Smooth, high-quality finish with minimal effort.
Material Efficiency: Maximizes transfer efficiency to reduce paint waste.
Reliability: Stainless steel components ensure long service life and consistent performance.
Easy Maintenance: Nickel-plated finish simplifies cleaning and upkeep.
Versatility: 1.4 mm tip suitable for a wide range of topcoats in automotive and industrial applications.
Ultra long-life needle packings for low maintenance
Cost-effective repair parts for low ownership costs
Ergonomic handle for balanced comfort and control
Nickel-plated finish resists corrosion and is easy to clean
Low trigger pull minimizes hand stress during use
Product identification
- Brand: Sharpe
- Model / MPN: 253443
