Spray gun details

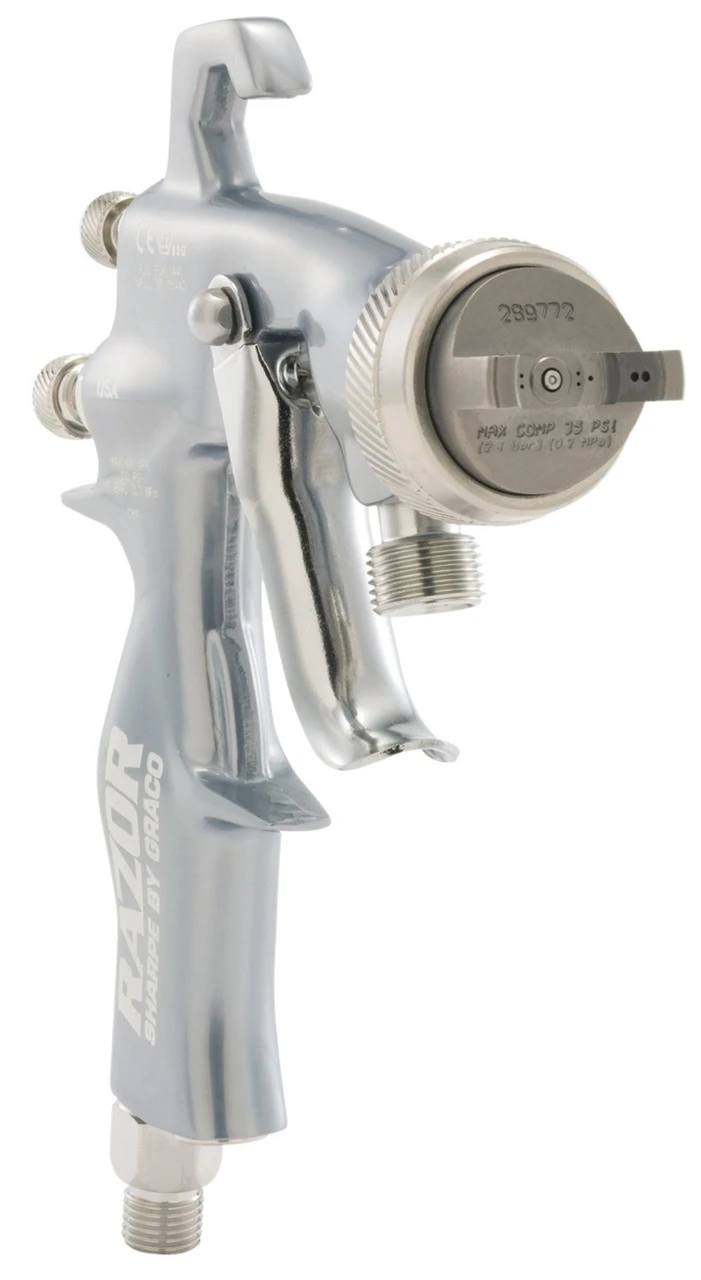

Sharpe 1.4 mm RAZOR Conventional Pressure Feed Spray Gun (24A532)
KEY FEATURES AND BENEFITS:
Superior Finish Quality: Provides excellent atomization for a "Class A" finish on automotive and industrial projects.
Versatile Fluid Tip: The 1.4 mm tip is suitable for base coats, clear coats, and light industrial paints.
User Comfort: Lightweight body and low trigger pull reduce fatigue during extended painting sessions.
Simplified Maintenance: Fewer internal parts make cleaning and maintenance easier, minimizing downtime.
Fluid Tip Size: 1.4 mm
Air Inlet Size: 1/4" npsm (R 1/4 – 19)
Fluid Inlet Size: 3/8" npsm (R 3/8 – 19)
Maximum Air Inlet Pressure: 100 psi (0.7 MPa, 7 bar)
Maximum Fluid Inlet Pressure: 300 psi (2.1 MPa, 21 bar)
Air Consumption: 13.3 CFM at 43 psi (3.0 bar)
Finish: Gray anodized
Preparation: Ensure the spray gun and fluid tip are clean. Connect the air hose to the 1/4" air inlet and the fluid hose to the 3/8" fluid inlet. Verify that the pressure feed system is properly set up.
Adjusting Air Pressure: Set the air inlet pressure to the recommended 43 psi for optimal atomization and spray pattern.
Applying Coating: Hold the gun perpendicular to the surface at a consistent distance. Pull the trigger and move the gun in smooth, even passes, overlapping each pass by 50% for uniform coverage.
Cleaning: Disconnect air and fluid lines. Disassemble the gun and clean all components, including the fluid tip, air cap, and body, using the appropriate solvent for the coating used.
BENEFITS OF USING SHARPE 1.4 MM RAZOR CONVENTIONAL PRESSURE FEED SPRAY GUN (24A532):
High Efficiency: Conventional pressure feed system enables faster application for production work.
Professional-Grade Finish: Engineered air cap and fluid tip create finely atomized spray for a factory-like finish.
Ergonomic Design: Allows longer work sessions with reduced hand fatigue.
Durability and Longevity: Robust construction and simple design reduce maintenance and extend tool life.
Reliable Performance: Consistent spray quality ensures dependable results across projects.
Ergonomic, balanced design for comfortable handling
Low trigger-pull for reduced hand fatigue
Streamlined construction with fewer internal parts
Gray anodized body finish for corrosion resistance
Precision-machined internal components
Compatible with a variety of automotive and industrial coatings
High-quality "Class A" finish capability
Designed for conventional pressure feed systems
Product identification
- Brand: Sharpe
- Model / MPN: 24A532
