Spray gun details

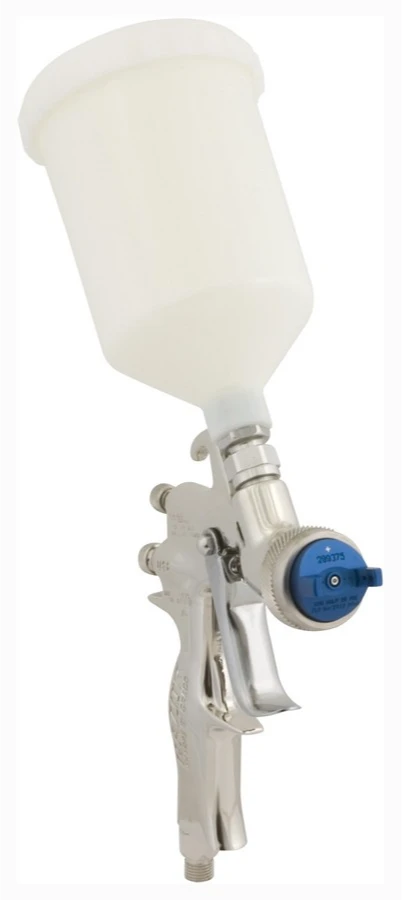

Sharpe 1.2 mm Tip RAZOR HVLP Waterborne Spray Gun (289388)
The Sharpe 1.2 mm Tip RAZOR HVLP Waterborne Spray Gun (289388) is a top-tier tool engineered for the precise and efficient application of waterborne and water-base coatings. Built with the professional in mind, this gravity-fed spray gun combines advanced HVLP technology with a thoughtful ergonomic design, ensuring a superior finish with minimal effort. The gun’s stainless steel construction offers exceptional durability and resistance to the corrosive nature of water-based materials, making it a reliable choice for long-term use in automotive, industrial, and woodworking projects.
KEY FEATURES AND BENEFITS:
Optimized for Waterborne Coatings: The gun is specifically designed with 100% stainless steel fluid passages, a stainless steel needle, and a stainless steel nozzle to prevent rust and corrosion when using waterborne materials, extending the life of the tool.
High-Quality Atomization: The specialized HVLP air cap delivers a fine, uniform spray pattern, ensuring a smooth, high-quality finish with reduced material waste and less overspray.
Ergonomic and Lightweight: At just 1.3 lbs with the cup, this spray gun is easy to handle, and its ergonomic grip and low trigger pull reduce hand fatigue, allowing for comfortable and consistent application over long periods.
Reduced Maintenance: The long-life needle packings minimize the need for frequent part replacements, lowering the cost of ownership and ensuring the gun remains in top working condition.
Included Accessories: The gun comes with a 3M™ PPS™ adapter and a 23 oz (0.68 L) plastic gravity cup, providing everything you need to start working right out of the box.
Part Number: 289388
Fluid Tip: 1.2 mm
Air Inlet Size: 1/4" npsm (R 1/4 – 19)
Air Consumption: 14.4 CFM at 29 psi (0.2 MPa, 2.0 bar)
Weight (with cup): 1.3 lb (0.6 kg)
Finish: Nickel-plated
Prepare the Material: Before use, ensure your waterborne or water-base paint is properly strained and mixed according to the manufacturer's instructions.
Attach the Cup: Securely attach the 23 oz gravity cup to the gun's inlet. If using a 3M™ PPS™ system, ensure the adapter is correctly installed.
Adjust Air Pressure: Connect the spray gun to a clean, dry air source. Set the air pressure to the recommended 29 psi at the gun’s inlet to achieve the best atomization and spray pattern.
Practice on a Test Panel: Before painting your final surface, practice on a test panel to adjust the fluid control knob and fan pattern control knob for the desired spray pattern and material flow.
Apply the Coating: Hold the gun perpendicular to the surface at a consistent distance of about 6-8 inches. Apply the coating using smooth, even passes, overlapping each pass by 50% to ensure uniform coverage.
BENEFITS OF USING SHARPE 1.2 MM TIP RAZOR HVLP WATERBORNE SPRAY GUN (289388):
Professional Finish: The precision engineering and fine atomization provide a glass-like finish, essential for high-quality automotive and woodworking projects.
Corrosion Resistance: The all-stainless steel fluid passages and needle ensure the gun stands up to the corrosive effects of water-based materials, preventing internal rust and extending the product's lifespan.
High Transfer Efficiency: HVLP technology minimizes overspray, meaning more material lands on the intended surface and less is wasted, saving money on expensive coatings.
User Comfort: The lightweight, balanced design and smooth trigger pull reduce strain and fatigue, making it possible to work for longer periods without discomfort.
100% Stainless Steel Fluid Passages: Provides high-performance corrosion resistance.
Ergonomic, Balanced Design: Ensures superior handling and reduced user fatigue.
Nickel-Plated Finish: Allows simple and quick cleaning.
Precision-Machined Air Cap: Delivers uniform spray pattern and fine atomization.
Adjustable Fluid and Fan Controls: Customize spray patterns.
Lightweight Body: 1.3 lbs for easy maneuverability.
Low Trigger Pull: Comfortable, precise application.
Product identification
- Brand: Sharpe
- Model / MPN: 289388
